Zoeller® ZOE300151

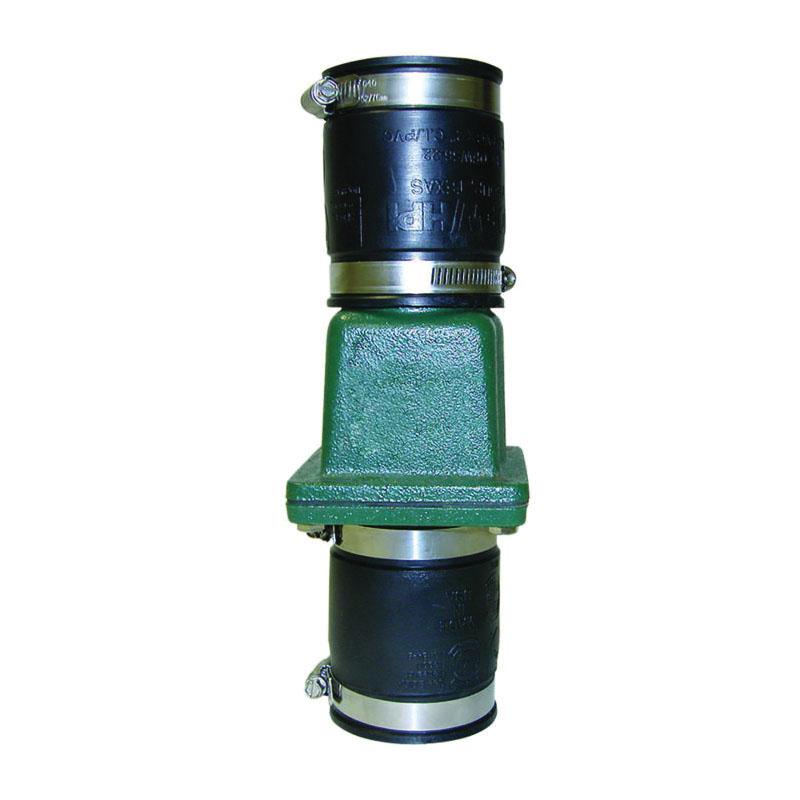

Zoeller® 30-0151 Full Flow Unicheck Valve, 2 in, Slip, Iron

Manufacturer: Zoeller Company
Part #: ZOE300151
Customer Part #:
Login for Availability
Login for Price
Body Material      :      Iron
Color      :      Green
Connection Type      :      Slip
Dimensions      :      11 in L x 8-1/4 in W
Finish      :      Epoxy Powder-Coated
Nominal Size      :      2 in
Port Type      :      Full
Pressure Rating      :      4.3 psi
Softgoods Material      :      Neoprene
Temperature Rating      :      130 deg F

Our standard 2 in unicheck cast iron check valve for sewage and effluent pump applications. The rubber coupling with stainless steel clamps on each side of the check valve allow for quick and easy connection to SCH 40 PVC. It can be spliced into an existing line very easily as well. It is also designed to be used in either a vertical or horizontal orientation.

Zoeller® Full Flow Unicheck Valve, 2 in Nominal, Slip Connection, 4.3 psi, 130 deg F, Full Port, Iron Body, Neoprene Softgoods, Green, Finish: Epoxy Powder-Coated, 11 in L x 8-1/4 in W

  • Connect to plumbing system with rubber couplings
  • Neoprene gasket and flapper, weighted with stainless steel backing plates and stainless steel rivet
  • All stainless steel screws for longevity of hardware
  • Extra wide hinge to reduce stress
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Zoeller_30_0151_Catalog.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Zoeller_30_0151_Specification_Sheet.pdf
