Zilmet® ZILZFT8R15

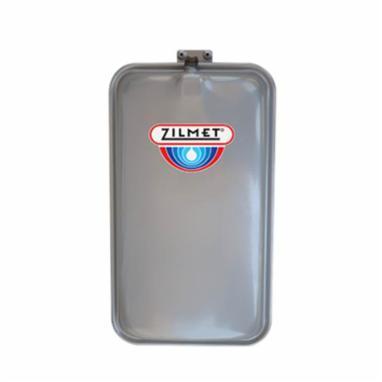

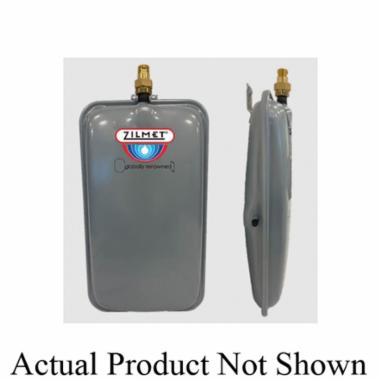

Zilmet® ZFT8R-15 Flat Hydronic Expansion Tank With Union and Mounting Bracket, 1/2 in

Manufacturer: Zilmet
Part #: ZILZFT8R15
Customer Part #:
Login for Availability
Login for Price
Acceptance Factor      :      1.1 gal
Additional Information      :      Wall Hung Mount
Capacity      :      2.1 gal
Color      :      Gray
Connection Size      :      1/2 in
Connection Type      :      NPT
Diaphragm Material      :      SBR
Dimensions      :      17.2 in L x 13.8 in W x 7 in H
Material      :      Carbon Steel
Pressure Rating      :      43.5 psig
Temperature Rating      :      194 deg F

Zilmet® Flat Hydronic Expansion Tank With Union and Mounting Bracket, 2.1 gal Capacity, 1/2 in Connection, NPT Connection, 1.1 gal Acceptance Factor, SBR Diaphragm, Carbon Steel, Gray, 43.5 psig, 194 deg F, 17.2 in L x 13.8 in W x 7 in H, Additional Information: Wall Hung Mount

  • Perfect accessory to pair with a wall hung condensing boiler
  • All tanks come with a welded-mounting bracket and union connection with a double system check
  • Welded-mounting bracket and unique design allows for a quicker and less expensive installation
  • Provides a more professional look to the mechanical room
  • Great for tight installations
  • Allows for easier access to the boiler for maintenance
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Zilmet_ZFT24R_60_Catalog.pdf
  • Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Zilmet_ZFT24R_60_Instruction_Installation_Manual.pdf
  • Submittal https://assets.unilogcorp.com/267/ITEM/DOC/Zilmet_ZFT24R_60_Submittal.pdf
  • Warranty Information https://assets.unilogcorp.com/267/ITEM/DOC/Zilmet_ZFT24R_60_Warranty.pdf
