| Capacity | : | 4.8 gal |
| Color | : | Almond |
| Connection Size | : | 3/4 in |
| Dimensions | : | 10.6 in Dia x 13.7 in H |
| Material | : | Carbon Steel |
| Pressure Rating | : | 150 psi |
| Temperature Rating | : | 210 deg F |

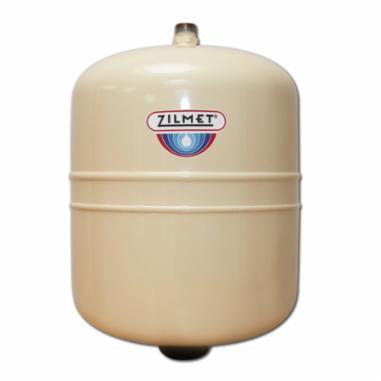

Zilmet® Thermal Expansion Tank, 4.8 gal Capacity, 3/4 in Connection, Carbon Steel, Almond, 150 psi, 210 deg F, 10.6 in Dia x 13.7 in H
- Zilmet® has over 50 years of experience in manufacturing high quality diaphragm expansion tanks
- Over 2 million square ft of production space
- Produces over 5 million tanks and 1 million heat exchangers annually
- Fully vertically integrated, designing and manufacturing all diaphragms internally
- Zilmet® has created a compact design with a seamless diaphragm that never stretches or creases
- There are no bubbles or corners to trap sediment, inhibiting bacterial growth
- International approvals for use with potable water to include NSF® 61
- Each tank is factory leak tested to ensure tank integrity
- MIG welding eliminated interior rough spots and sharp edges
- Exclusive polypropylene liner eliminates internal corrosion
- External baked epoxy-polyester coating provides a durable appliance like finish
- Protected pre-charge valve eliminates potential leak path
- 150 psi maximum pressure rating
- Stainless steel connection, butyl fixed membrane
- 40 psi factory recharge
