| Accuracy | : | +/-1 % |
| Additional Information | : | R-32, R-410A, R-454B Refrigerant, Analog Display, High Side/Low Side Gauge |
| Connection Size | : | 1/4 x 3/8 in |
| Dimensions | : | 10-7/8 in L x 10-3/8 in x 4-1/4 in H |
| Gauge Range | : | 0 to 800 psi, 30 inHg to 500 psi |
| Material | : | Aluminum |
| Series | : | Titan Series |

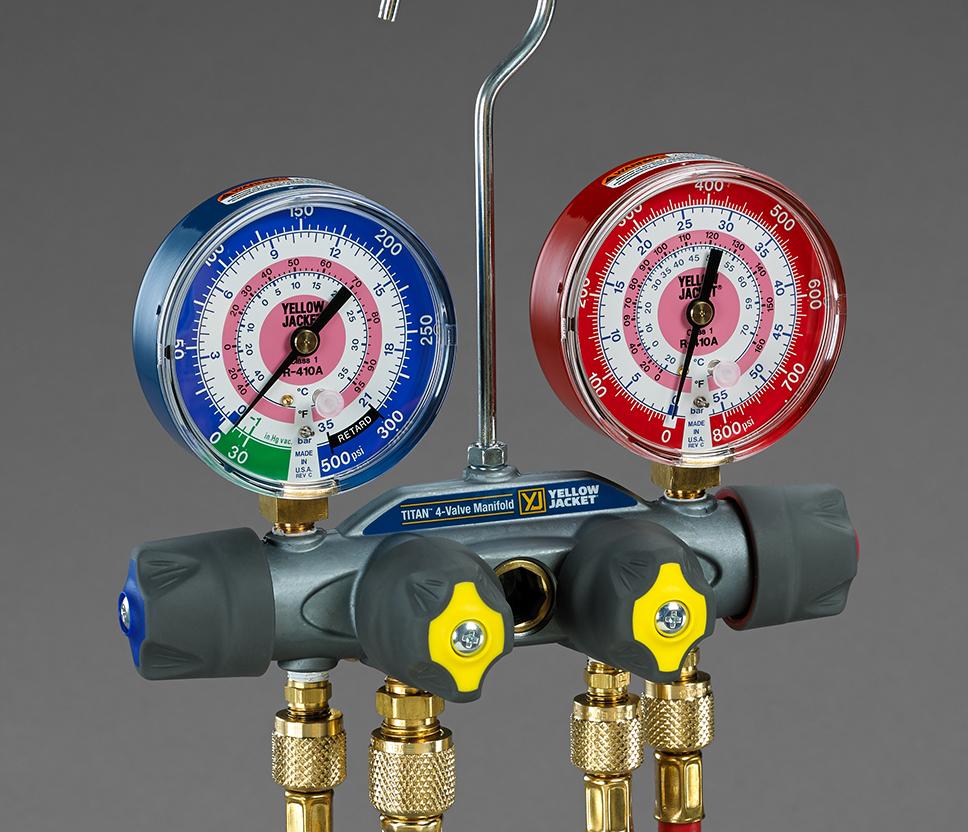

Yellow Jacket® Manifold Gauge, Series: Titan Series, +/-1 % Accuracy, 1/4 x 3/8 in Connection, 0 to 800 psi, 30 inHg to 500 psi Gauge, Aluminum, 10-7/8 in L x 10-3/8 in x 4-1/4 in H, Additional Information: R-32, R-410A, R-454B Refrigerant, Analog Display, High Side/Low Side Gauge
- Fourth hose to enable connection to hi-/lo-sides, refrigerant tank and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses
- 3/8″ Vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings are 1/4″)
- Large, easy-to-read 3-1/8″ (90 mm) steel case red and blue, 1% accuracy (Class 1) gauges
- Front access for easy field recalibration
- Double O-ring piston for reliability and long service life
- Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seats
- Contoured easy-grip handles for positive control; color-coded for ready identification
- Sight glass to easily view refrigerant movement and condition during charging and recovery
- Optional protective gauge boots available
- Heavy duty hook won't pull out
- Also available with 3-1/2″ (80 mm) red and blue liquid-filled gauges
- Manifold and hose holder fittings 1/4″-3/8″-1/4″-1/4″ unless otherwise identified
- Made in the USA
