| Amperage Rating | : | 0.45 A |
| Dimensions | : | 7 in H x 5-1/4 in W x 1-1/4 in D |
| Frequency Rating | : | 50/60 Hz |
| Temperature Rating | : | -40 to 176 deg F |
| Time Delay | : | 17 s (Warm Up Time), 30 s (Pre Purge), 60 min (Reset) |
| Voltage Rating | : | 25 VAC |

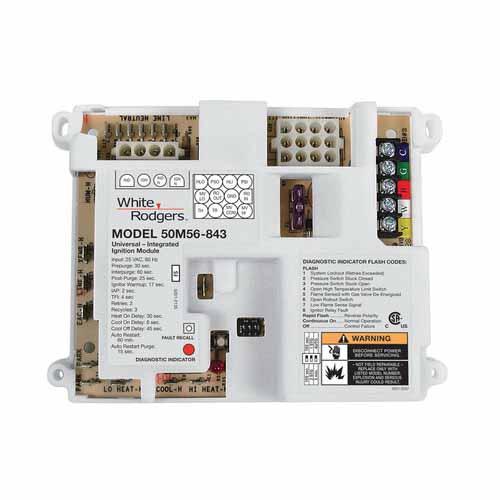

WHITE-RODGERS™ Integrated Furnace Control Kit, 25 VAC, 0.45 A, 50/60 Hz, 17 s (Warm Up Time), 30 s (Pre Purge), 60 min (Reset) Time Delay, -40 to 176 deg F, 7 in H x 5-1/4 in W x 1-1/4 in D
- Three fan speeds - cool, low heat and high heat speeds
- Color-coded (labeled) thermostat connection for quick helpful selection
- System diagnostics, with fault recall (stored)
- Cover label displays diagnostic table
- Red LED light - used for diagnostic flash codes
- Low voltage - fuse protection - 3A replaceable automotive type
- Humidifier and electronic air cleaner connections (optional)
- 1-1/2 A at 25 VAC 50/60 Hz 0.6 pf valve relay, 6 A at 120 VAC 50/60 Hz (resistive) igniter relay, 2.2 FLA - 3.5 LRA at 120 VAC inducer relay, 14.5 FLA - 25 LRA at 120 VAC circulator relay
