| Amperage Rating | : | 14 A Inductive |
| Connection Type | : | 1/4 in Quick-Connect |
| Mounting Type | : | Flanged Airstream |
| Pilot Duty Rating | : | 125 VA |
| Series | : | 3L05 Series |
| Switch Type | : | SPST |
| Switching Action | : | Open on Rise |
| Temperature Rating | : | 175 to 215 deg F, 40 deg F Differential |

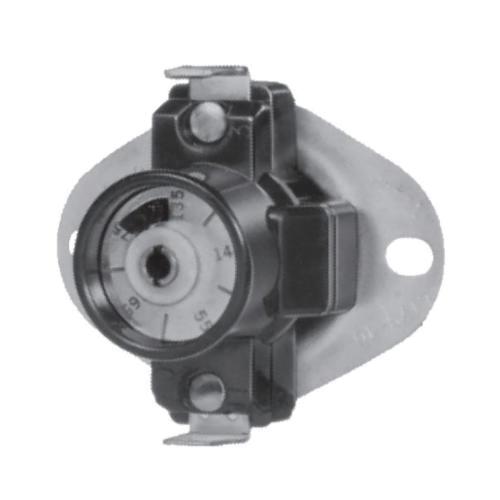

WHITE-RODGERS™ Snap Disc Limit Control, 3L05 Series, 14 A Inductive, SPST Switch, Open on Rise Switching Action, 175 to 215 deg F, 40 deg F Differential, 1/4 in Quick-Connect Connection, 125 VA Pilot Duty, Flanged Airstream Mounting
- Adjustable snap disc thermostat allows you to set the temperature set point to match your specific needs which simplifies inventory
- Reduces inventory while providing coverage for a wide range of temperature applications
- Replaces the majority of fixed disc thermostats now on heating equipment and various appliances
- Two adjustable fan control models replace seven fixed snap disc models
- Five adjustable limit control models replace ten fixed snap disc models
- 3107011 type Therm-O-Disc
- 14 A at 120 VAC full load, 72 A at 120 VAC locked rotor
