| Connection Type | : | (2) 1/4 in Spade Terminal and (1) Pin Terminal |
| Dimensions | : | 48 in Element |
| Series | : | 3049 Series |

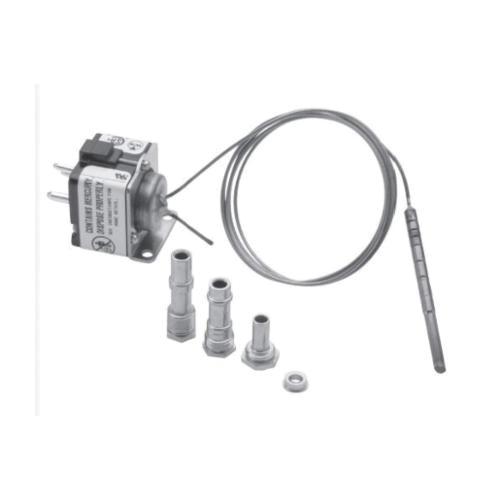

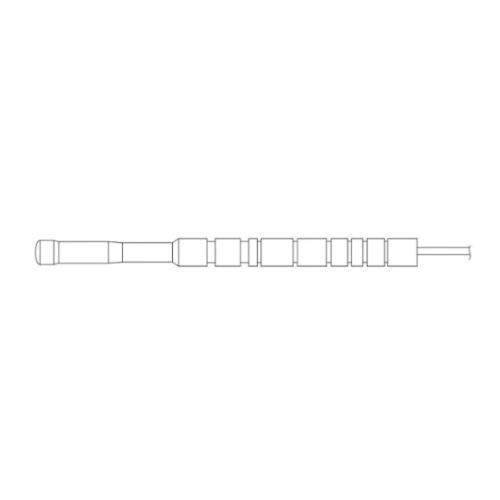

The 3049-64 and 3049-115 mercury flame sensors are designed as universal replacements for types currently used on cycling pilot ignition systems. they will replace sensors used in thermocouple type (slip-in) pilot burners. the bulbs on both flame sensors have additional grooves to accept retaining clips that allow the bulb to match most existing types.
WHITE-RODGERS™ Mercury Flame Sensor, 3049 Series, (2) 1/4 in Spade Terminal and (1) Pin Terminal Connection, Dimensions: 48 in Element
- Bulb-styles are designed to fit with various OEM applications
- Adapter fitting to allow use of these mercury flame sensor with competitive burner are packed with control identified
- Mercury flame sensor can only be replaced be cross referencing the original mercury flame sensor model number, they can not be replaced be gas valves model number
- 1450 deg F maximum temperature at bulb tips
- Type D panel
