| Amperage Rating | : | 0.2 A |
| Configuration | : | Normally Open, Normally Closed |
| Connection Type | : | Sweat |
| Dimensions | : | 4-5/8 in L x 2-3/4 in W x 6-1/4 in H |
| Flow Coefficient (Cv) | : | 42.2 Cv |
| Material | : | Stainless Steel |
| Nominal Size | : | 1-1/4 in |
| Number of Ways/Position | : | 2-Ways |
| Pressure Rating | : | 50 psi |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 240 deg F |
| Voltage Rating | : | 24 VAC |

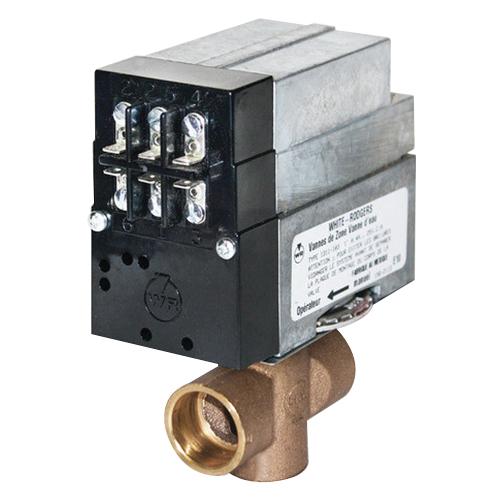

WHITE-RODGERS™ Hydronic Zone Control Valve, 1-1/4 in Nominal, Sweat Connection, Number of Ways/Position: 2-Ways, 50 psi, 42.2 Cv Flow Coefficient (Cv), Stainless Steel Stem, Stainless Steel, Normally Open, Normally Closed, 0.2 A, 24 VAC, 240 deg F, 4-5/8 in L x 2-3/4 in W x 6-1/4 in H
- Quiet operation
- Stainless steel valve stem
- Automatic recycling manual operator shows valve position at all times
- Built-in auxiliary contacts to control burner or circulator relay
- Motor can be removed from valve assembly without draining system
- 45 s open and 60 s close time cycle
- 6-1/2 ft of tubing friction loss equivalent
- 2 A at 24 VAC electric rating of auxiliary switch
- 0.2 A at 24 VAC thermostat circuit rating
