| Amperage Rating | : | 7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load |
| Color | : | Gray |
| Contact Configuration | : | SPDT |
| Differential Temperature | : | 7 to 45 deg F |
| Dimensions | : | 2-5/16 in W x 5.37 in H x 2-9/16 D |
| Mounting Type | : | Horizontal/Vertical |
| Temperature Rating | : | 100 to 240 deg F |
| Well Spud Size | : | 1/2 in NPT |

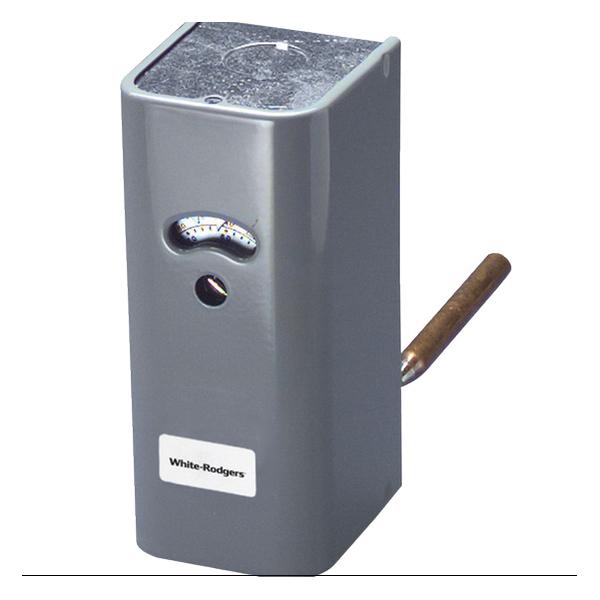

WHITE-RODGERS™ Aquastat, 7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load, 1/2 in NPT Well Spud, SPDT, Horizontal/Vertical Mount, Gray, 100 to 240 deg F, 7 to 45 deg F Differential, 2-5/16 in W x 5.37 in H x 2-9/16 D
- Extra capillary length for extended shank wells
- Special screw terminals with ears securely hold solid and stranded wires
- Screwdriver-adjustable differential with direct-read indicator
- Knockouts on top and bottom and plenty of wiring room
- Hydraulic action element fast acting
- Competitive sized bulb
