| Connection Type | : | Flanged |
| Dimensions | : | 3-11/16 in L |
| Handle Material | : | Steel |
| Material | : | Brass |
| Model | : | 8141 |
| Nominal Size | : | 3/4 in |
| Packing Material | : | Brass |
| Pressure Rating | : | 250 lbf/sq-in |
| Seal Material | : | PTFE |
| Seat Material | : | PTFE |
| Series | : | HV Series |
| Stem Material | : | Brass |
| Temperature Rating | : | 250 deg F |
| Trim Material | : | Brass |
The features and benefits you trust in our original Isolator line with 2 versatile enhancements. First, 360 deg flange rotation that allows for rotation to any degree necessary for your installation. Second, a multifunction drain that makes the Isolator the only valve that drains from both sides of the pump.

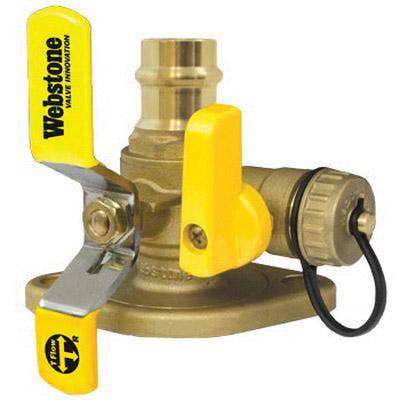

Webstone Ball Valve, HV Series, Model: 8141, 3/4 in Nominal, Flanged Connection, 250 lbf/sq-in, 250 deg F, Brass, Steel Handle, Brass Packing, PTFE Seal, PTFE Seat, Brass Stem, Brass Trim, 3-11/16 in L
- With detachable rotating flange
- With adjustable packing gland nut and bolt
- Saves labor, saves space and reduces leak paths
- Prevents electrolysis
- Eliminates galvanic corrosion
- Guaranteed for life
- Compatible with popular press tools
- Snug-fit rotating flange provides greater control during installation
