| Ball Material | : | Brass |
| Connection Type | : | Flanged |
| Inlet to Outlet Length | : | 4-15/16 in |
| Material | : | Brass |
| Media | : | Water |
| Nominal Size | : | 1-1/2 in |
| Number of Ports/Ways | : | 3-Ways |
| Packing Material | : | PTFE |
| Pressure Rating | : | 250 lbf/sq-in |
| Seal Material | : | PTFE |
| Series | : | 8140 Series |
| Temperature Rating | : | 250 deg F |
| Top to Inlet Center | : | 3-3/16 in |
| Trim Material | : | Brass |
Designed for residential, commercial or industrial use with water only. This approved Webstone valve is actuated by a blowout proof stem and features an adjustable packing gland. HV models fit both standard and high velocity pumps.

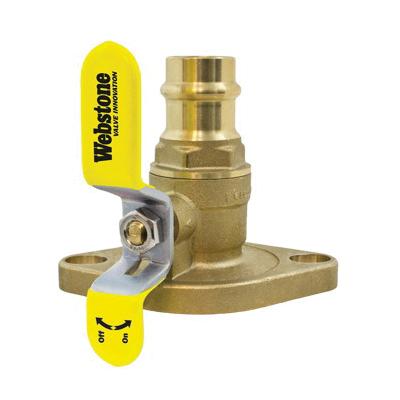

Webstone Isolator Ball Valve, 8140 Series, 1-1/2 in Nominal, Flanged Connection, Number of Ports/Ways: 3-Ways, Water Media, 4-15/16 in Inlet to Outlet Length, 3-3/16 in Top to Inlet Center, 250 lbf/sq-in, 250 deg F, Brass, PTFE Packing, PTFE Seal, Brass Trim, Brass Ball
- Full port forged brass uni-flange ball valve with detachable rotating flange, adjustable packing gland, nuts and bolts
- The features and benefits you trust in our original Isolator line with two versatile enhancements
- First, 360 deg flange rotation that allows for rotation to any degree necessary for your installation
- Second, a multifunction drain that makes the isolator the only valve that drains from both sides of the pump
- Unique uni-body design is preserved
- Solid forged brass outer flange
- Fully removable outer flange secured by snap ring
- Prevents electrolysis
- Eliminates galvanic corrosion
- Three way ball purges before or after the pump
- Guaranteed for life
- Replaces Eight components
- Eliminate 7 leak paths
- Save 63 min of labor
- Compatible with popular press tools
- 360 deg rotation offers greater flexibility
- Snap ring provides greater control over installation
- Inner and outer flanges are designed to help prevent problems from over-torquing
- Twice the purging capabilities in a single component
