| Body Material | : | Forged Brass |
| Connection Type | : | C x C |
| Handle Material | : | Aluminum |
| Lead-Free/Contains Lead | : | Lead-Free |
| Nominal Size | : | 1 in |
| Opening Size | : | 3-13/16 in |
| Packing Material | : | Brass |
| Pressure Rating | : | 600 lbf/sq-in WOG |
| Seal Material | : | PTFE Stem |
| Seat Material | : | PTFE |
| Series | : | 5067 Series |
| Stem Material | : | Brass |
| Temperature Rating | : | 100 deg F |
| Trim Material | : | Hard Chrome-Plated Brass Ball |

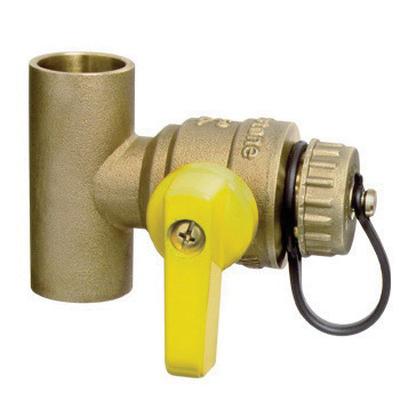

Webstone T-Drain Valve, 5067 Series, 1 in Nominal, C x C Connection, 600 lbf/sq-in WOG, 3-13/16 in Opening, Forged Brass Body, PTFE Seat, Brass Stem, PTFE Stem Seal, Hard Chrome-Plated Brass Ball Trim, Brass Packing, Aluminum Handle, 100 deg F, Lead-Free
- Full port forged brass fitting with high-flow hose drain
- Install anywhere a branch hose line is required
- High-flow alternative for filling closed loop hydronic systems
- Eliminate assemblies needed for installing drains/draw offs into a line
- U2 in one alternative replaces a tee fitting and purge drain
- Blowout-proof stem
- Adjustable packing gland
- Brass end cap, enamel-coated aluminum handle, brass handle screw, brass with EPDM strap cap and strap, EPDM washer
