Webstone FLGBDW12C

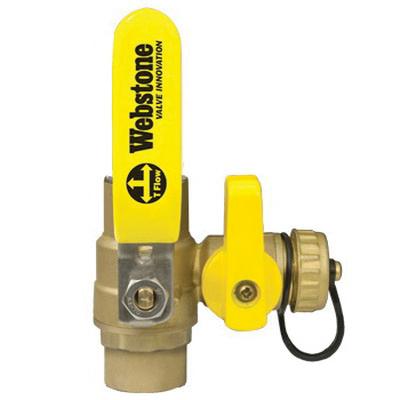

Webstone 50612W Pro Pal Series With Drain, 1/2 in Nominal, Copper Sweat, 600 lb/sq-in WOG, Lever Operator, Brass Body

Manufacturer: NIBCO Inc
Part #: FLGBDW12C
Customer Part #:
Login for Availability
Login for Price
Body Material      :      Brass
Connection Type      :      Copper Sweat
Dimensions      :      2 in L
Handle Material      :      Steel
Lead-Free/Contains Lead      :      Yes
Nominal Size      :      1/2 in
Opening Size      :      1/2 in
Operator Type      :      Lever
Packing Material      :      Brass
Pressure Rating      :      600 lb/sq-in WOG
Seal Material      :      PTFE
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      100 deg F
Trim Material      :      HCP Brass

Webstone Pro Pal Series With Drain, Copper Sweat Connection, 1/2 in Nominal, 600 lb/sq-in WOG, 1/2 in Opening, Lever Operator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, HCP Brass Trim, Brass Packing, Steel Handle, Yes, 100 deg F, 2 in L

  • With high-flow hose drain, adjustable packing gland and reversible handle
  • Brass end cap and handle screw, stainless steel handle nut, vinyl jacket, enamel-coated aluminum handle, EPDM washer, brass cap with PVC strap
  • Actuated by a blow-out-proof stem and adjustable packing gland
  • Other solder materials have lower pressure/temperature limits
  • Do not silver braze or over heat valves when soldering
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Webstone_10136W_Catalog.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Webstone_50612W_Specification_Sheet.pdf
  • Video Link https://youtu.be/oe-Vugd9RP8
