| Body Material | : | Forged Brass |
| Connection Type | : | FIP x MIP x FIP x Hose |
| Dimensions | : | 3-3/8 in L |
| Handle Material | : | Enamel-Coated Aluminium |
| Nominal Size | : | 1/2 in |
| Opening Size | : | 1/2 in |
| Packing Material | : | Brass |
| Pressure Rating | : | 600 lbf/sq-in WOG |
| Seal Material | : | PTFE Stem |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | 100 deg F |
| Trim Material | : | HCP Brass Ball |

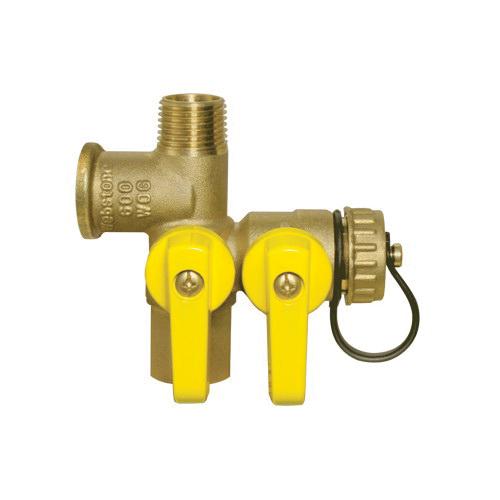

Webstone Pro-Pal Expansion Tank Ball Valve With Hi-Flow Hose Drain, 1/2 in Nominal, FIP x MIP x FIP x Hose Connection, 600 lbf/sq-in WOG, 1/2 in Opening, Forged Brass Body, PTFE Seat, Brass Stem, PTFE Stem Seal, HCP Brass Ball Trim, Brass Packing, Enamel-Coated Aluminum Handle, 100 deg F, 3-3/8 in L
- Brass cap, end cap and handle screw, EPDM washer and strap
- For isolation and draining of an expansion tank in a closed loop hydronic heating system
- It is actuated by a blowout-proof stem and features an adjustable packing gland
- Easily install, isolate, drain and replace any expansion tank
- Quickly connect entire system to the cold water feed
- Ideal for use with the webstone air separator
