| Dimensions | : | 24 in L x 24 in W x 5/8 in THK |
| Material | : | MDF |
| Model | : | ST838-ONE |
| Nominal Size | : | 3/8 in |
| Series | : | SmartTrac |

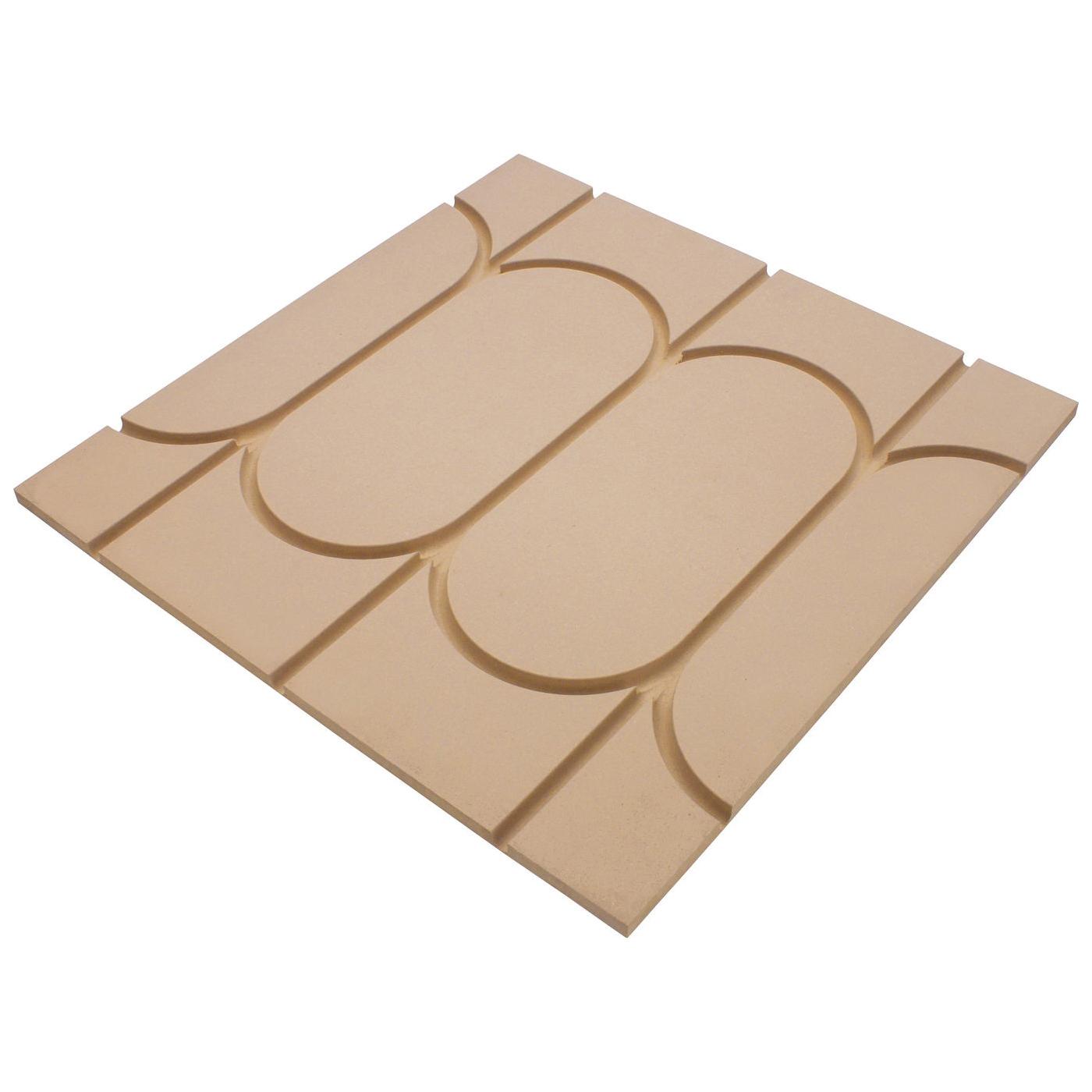

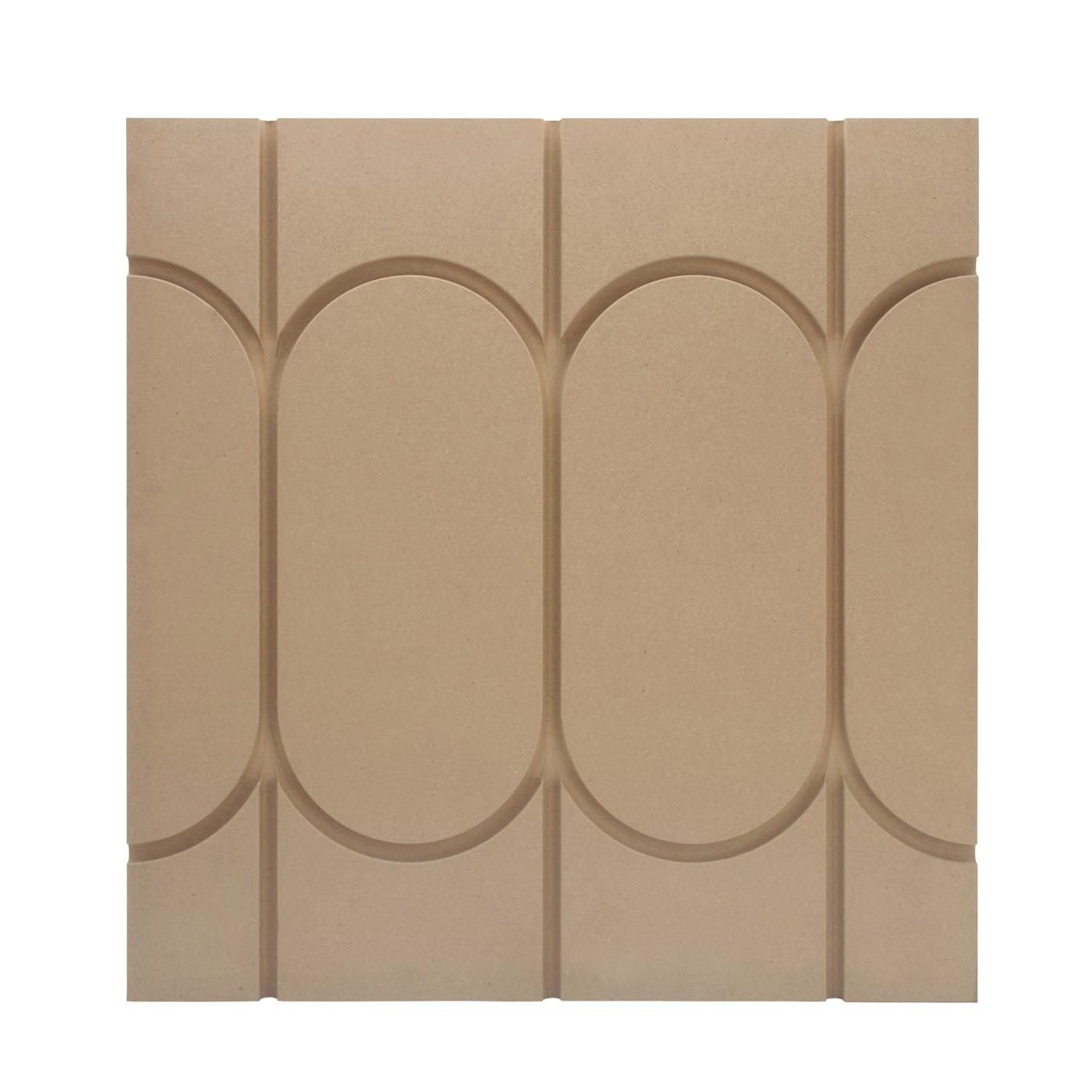

This smarttrac radiant panel is an above floor radiant solution designed to simplify installation of hydronic heating on top of existing frame or slab floors. This 2 x 2 foot panel is manufactured with MDF board designed with an S-pattern spaced at 8 in OC that allows for 3/8 in radiantpex or radiantpert tubing to be snapped into place. The unique design of this panel can be shifted to go around obstacles like pillars or walls or to change pipe direction by rotating panels.
WATTS® Radiant Panel, Series: SmartTrac, ST838-ONE Model, 3/8 in Nominal, MDF, 24 in L x 24 in W x 5/8 in THK
- Quicker to install, no silicone required
- Improved heat transfer, twice as responsive as gypsum based concrete
- Simplified installation, only two boards to configure
- Compatible with SDR-9 tubing
