| Connection Type | : | Sweat |
| Dimensions | : | 4-1/8 in H x 2-3/4 in W |
| Flow Rate | : | 2 gpm |
| Lead-Free/Contains Lead | : | Yes |
| Material | : | Brass |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Series | : | LF70A Series |
| Temperature Rating | : | 210 deg F |

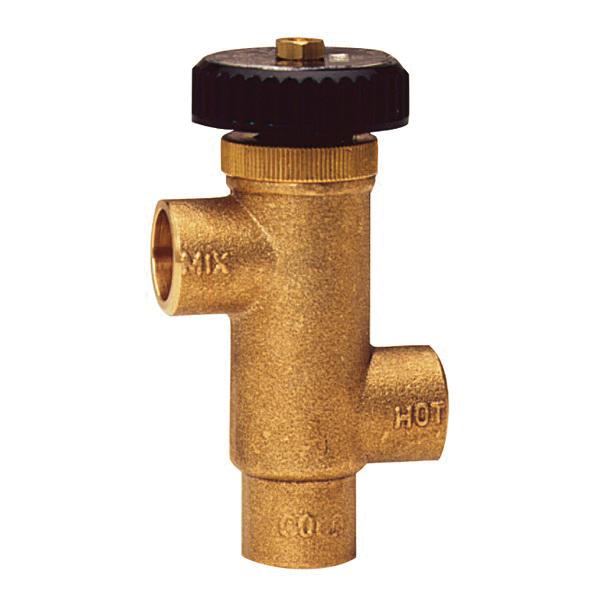

This 3/4 in hot water extender mixing valve is designed for domestic water supply systems and recommended for tankless heater, water heater and solar applications installed at or near the boiler or hot water heater. It consists of a lead-free brass body, solder connections, thermostat, stainless steel springs and dial adjustment cap. The hydraulically operated thermostat opens a spring-loaded check in the cold water inlet which allows cold and hot water to mix and can be replaced as a unit. The temperature range is 120 to 160 deg F (49 to 71 deg C).
WATTS® Hot Water Extender Tempering Valve, LF70A Series, 3/4 in Nominal, Sweat Connection, 2 gpm Flow Rate, 150 psi, Brass, Yes, 210 deg F, 4-1/8 in H x 2-3/4 in W
- Simple maintenance thermostat assembly is easily removed and replaceable as a unit
- Finger tip dial adjustment cap
- Stainless steel springs
