| Connection Type | : | Solder |
| Dimensions | : | 5-5/16 in L x 5-5/8 in H |
| Flow Rate | : | 0.5 to 20 gpm |
| Lead-Free/Contains Lead | : | Yes |
| Material | : | Copper Silicon Alloy |
| Model | : | LFMMV-US-M1 |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Service Type | : | Water |
| Temperature Rating | : | 200 deg F |
WATTS® regulators Series LFMMV thermostatic mixing vtemperature between 80 to 120 deg F with flow rates as low as 0.5 gpm and as high as 12 gpm. This mixing valve series is listed under ASSE 1017 for valves used in hot water source applications, ASSE 1069 for single pipe, Tempered® water applications and ASSE 1070 for valves used in individual or multiple fixture applications and also listed IAPMO cUPC. The LFMMVs feature lead-free construction to comply with lead-free installation requirements. The LFMMV-M1 uses a double throttling design to control both the hot and cold water supply to the mixed outlet. The superior flow characteristics of this valve provide accurate temperature control (+/-3 degF) with low pressure drop across the rated flow range. As an added feature, the LFMMV-M1 series incorporates integral inlet filter washers and check valves in both the hot and cold water inlets to protect against cross flow. The LFMMV-M1 is available with either union thread (-UT), union solder (-US), CPVC (-CPVC ) quick-connect (-QC) or Pex (-PEX) end connectors.

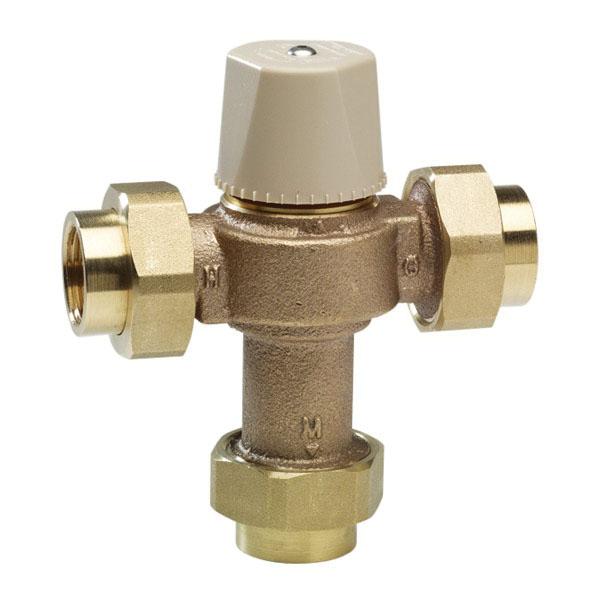

WATTS® Thermostatic Mixing Valve, Model: LFMMV-US-M1, 3/4 in Nominal, Solder Connection, 0.5 to 20 gpm Flow Rate, 150 psi, Copper Silicon Alloy, Water Service, Yes, 200 deg F, 5-5/16 in L x 5-5/8 in H
- Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold water
- Thermostat controls both hot and cold water
- Adjustment cap with locking feature
- Integral filter washers and check valves
