| Actuator Type | : | Lever |
| Body Material | : | Copper Alloy |
| Connection Type | : | MNPT x FNPT |
| Dimensions | : | 4-1/4 in H x 1-7/8 in W |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Series | : | LFL100XL Series |
| Temperature Rating | : | 210 deg F |
WATTS® Regulators Series LF100XL temperature and pressure relief valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105000 Btu/hr. They feature a lead-free copper alloy body with MNPT and FNPT outlet connections, unique thermostat with special thermo-bonded-coating and a test lever. The combined 2 in 1 temperature and pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions.

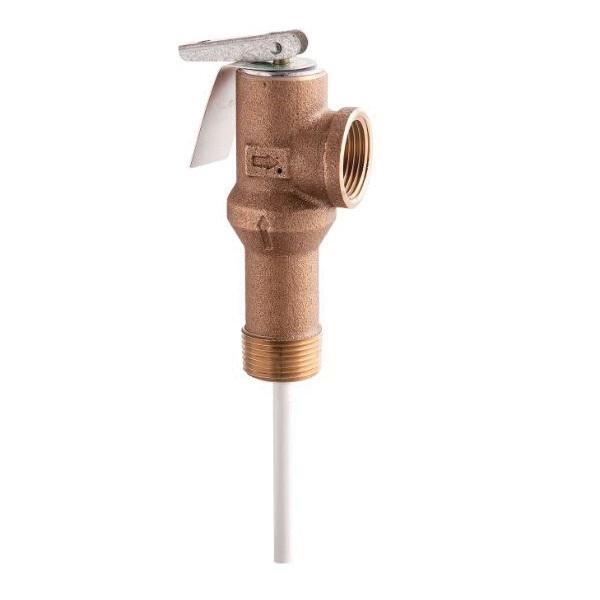

WATTS® Temperature and Pressure Relief Valve, LFL100XL Series, 3/4 in Nominal, MNPT x FNPT Connection, 150 psi, Lever Actuator, Copper Alloy Body, 210 deg F, 4-1/4 in H x 1-7/8 in W
- Unique thermostat with special thermo-bonded coating
- Stainless steel springs
- Thermostat is accurate and proven and exclusively designed and manufactured by Watts
- Model LFL100XL extended inlet model for installations with thick insulation, suitable for water heaters with up to 2 in of insulation
- 105000 Btu/hr nominal capacity
