| Additional Information | : | Model LFIT6300 |
| Body Material | : | Copper Silicon Alloy |
| Connection Type | : | NPT |
| Dimensions | : | 2 in L |
| Handle Material | : | Zinc-Plated Carbon Steel with Vinyl Insulator |
| Lead-Free/Contains Lead | : | Contains Lead |
| Nominal Size | : | 1/2 in |
| Opening Size | : | 1/2 in |
| Operator Type | : | Handle |
| Packing Material | : | PTFE Stem |
| Pressure Rating | : | 600 lb/sq-in WOG Non-Shock |
| Seal Material | : | NBR |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | 0 to 350 deg F |
| Trim Material | : | Brass |

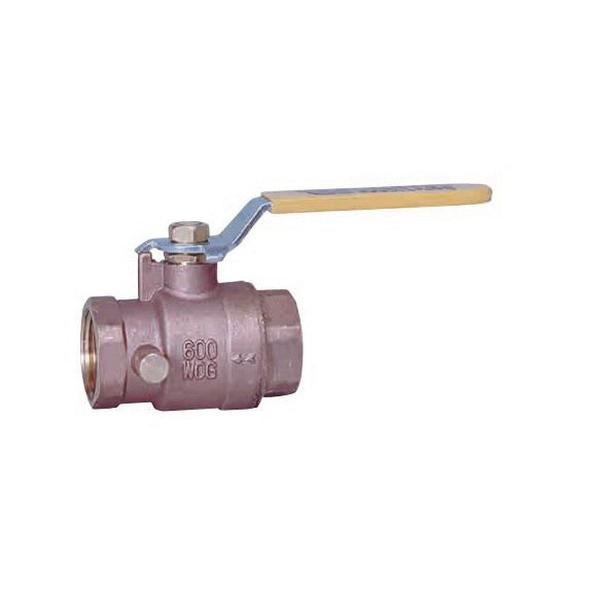

WATTS® Valve, 1/2 in Nominal, NPT Connection, 600 lb/sq-in WOG Non-Shock, 1/2 in Opening, Handle Operator, Copper Silicon Alloy Body, PTFE Seat, Brass Stem, NBR Seal, Brass Trim, PTFE Stem Packing, Zinc-Plated Carbon Steel with Vinyl Insulator Handle, Contains Lead, 0 to 350 deg F, 2 in L, Additional Information: Model LFIT6300
- Lead-free copper silicon alloy ball valves feature a side drain port to drain or vent downstream line when the valve is in the off position
- Full port orifice ensures maximum flow capacity and its ball is wiped clean during each operation of the valve
- Drain port allows draining or venting of downstream line when valve is in the off position
- Virgin PTFE valve seats are standard, suitable for a full range of liquids and gases, consult factory for specific applications
- Ball is wiped clean during each operation of the valve
- Blow-out proof pressure retaining stem
- Vinyl insulator on heavy-duty handles
- Fast, quarter-turn open or close operation
- Low operating torque
- Adjustable stem packing gland
- Brass cap, handle and packing nut
- PTFE thrust washer
- Lead-free copper silicon alloy adapter
