| Additional Information | : | Lead-Free |
| Connection Type | : | Flanged |
| Dimensions | : | 10-1/8 in W |
| Finish | : | Epoxy-Coated |
| Housing Material | : | Iron |
| Mesh Material | : | 304 Stainless Steel |
| Nominal Size | : | 3 in |
| Perforation Size | : | 1/16 in |
| Pressure Rating | : | 200 psi |
| Screen Area | : | 75 sq-in |
| Series | : | 77F-DI-FDA-125 Series |
| Temperature Rating | : | 210 deg F |

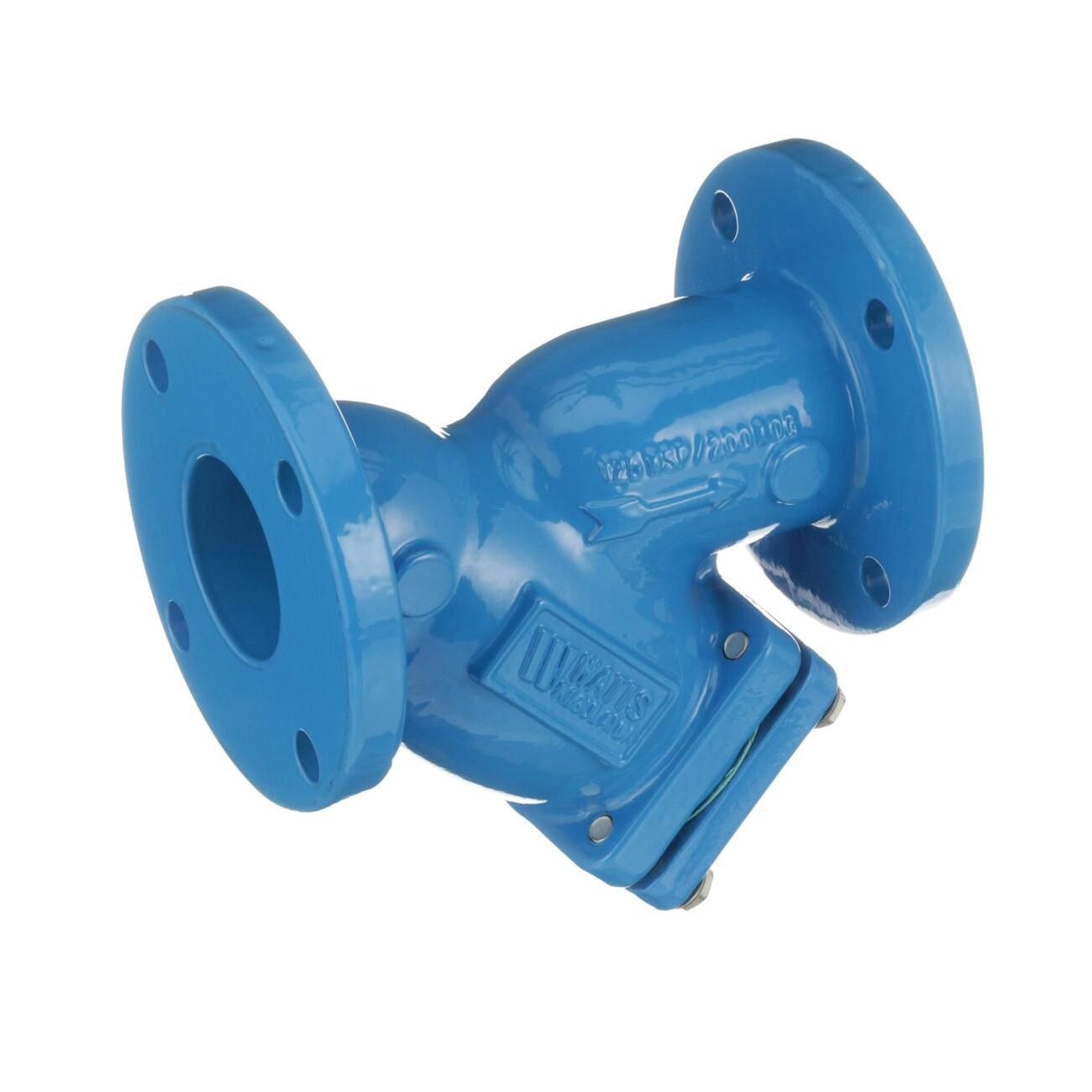

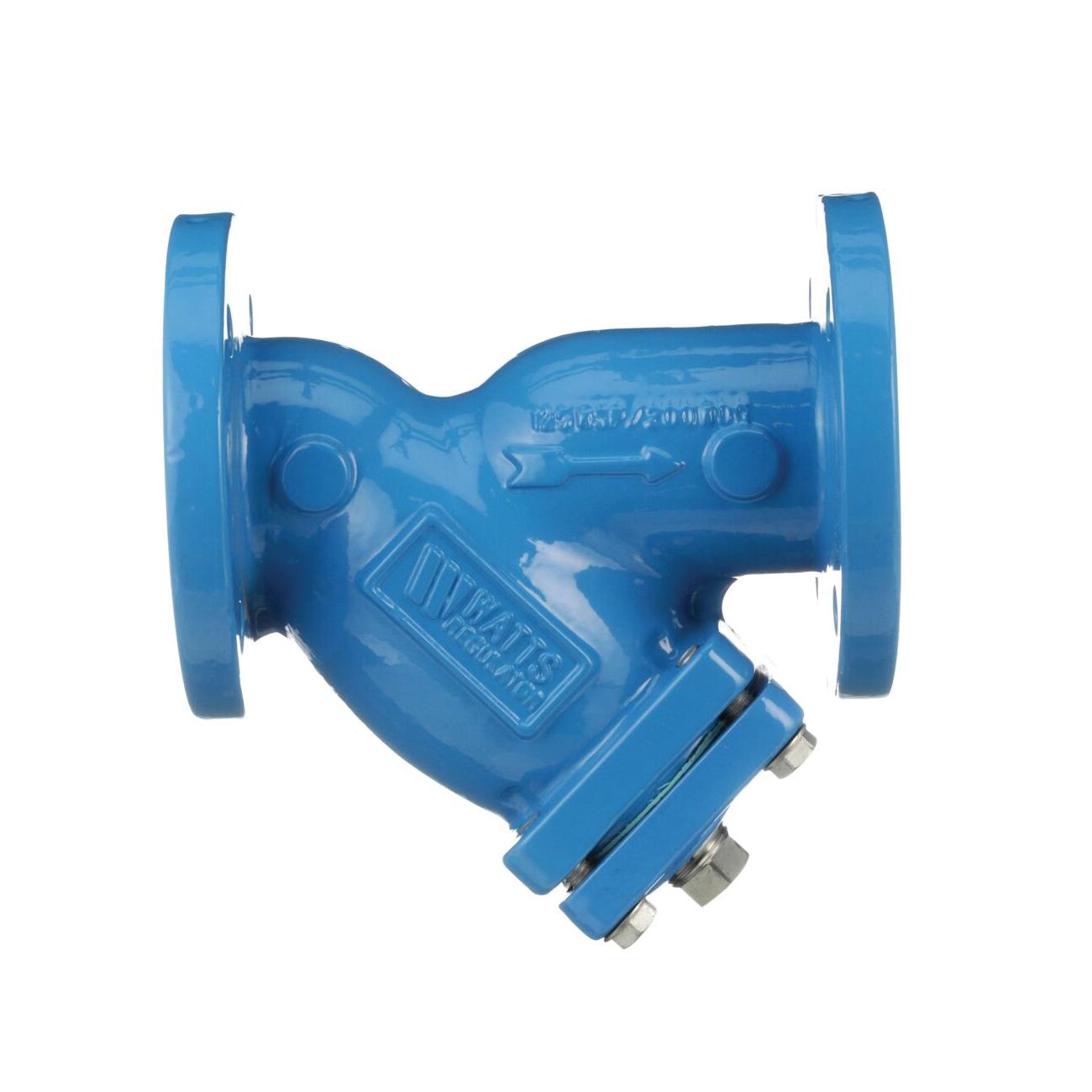

This cast iron flanged wye pattern strainer, 3 in WATTS® model 77F-DI-FDA-125, has 304 stainless steel perforated screens, a cast iron flanged retainer cap and a drain blow off connection furnished with a closure plug. The strainer also features a double-coated, heat fused epoxy-coating on the interior and exterior for FDA approved sanitary applications.
WATTS® Y-Type Strainer, 77F-DI-FDA-125 Series, 3 in Nominal, Flanged Connection, Perforation Size: 1/16 in, 75 sq-in Screen Area, 304 Stainless Steel Mesh, Iron Housing, Finish: Epoxy-Coated, 10-1/8 in W, 200 psi, 210 deg F, Additional Information: Lead-Free
- 304 stainless steel perforated screen
- Cast iron flanged retainer cap with gasket tapped for closure plug
- Drain/blow-off connection furnished with closure plug
- Series 77F-DI-FDA-125 comes with heat fused FDA approved epoxy-coating interior and exterior
- AISI 304 stainless steel screen
- Graphite cover gasket
- ASTM A-6 plate, bolt, bolt nut, cover bolt and cover bolt nut
- ASTM A-112 cotton pin
- ASTM B-16 set screw
- 200 lb/sq-in WOG at 210 deg F non-shock, 125 lb/sq-in WSP at 353 deg F pressure rating
