| Body Material | : | Copper Silicone Alloy |
| Connection Type | : | FNPT x Threaded |
| Dimensions | : | 5-7/16 in H x 4-7/8 in W |
| Disc Material | : | Stainless Steel |
| Finish | : | Rough Bronze |
| Flow Rate | : | 0.5 to 20 gpm |
| Inlet to Outlet Length | : | 3-3/16 in |
| Media | : | Water |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 150 psi |
| Seal Material | : | Buna-N/EPDM |
| Series | : | LFMMV Series |
| Softgoods Material | : | Buna-N/EPDM |
| Temperature Rating | : | 200 deg F |

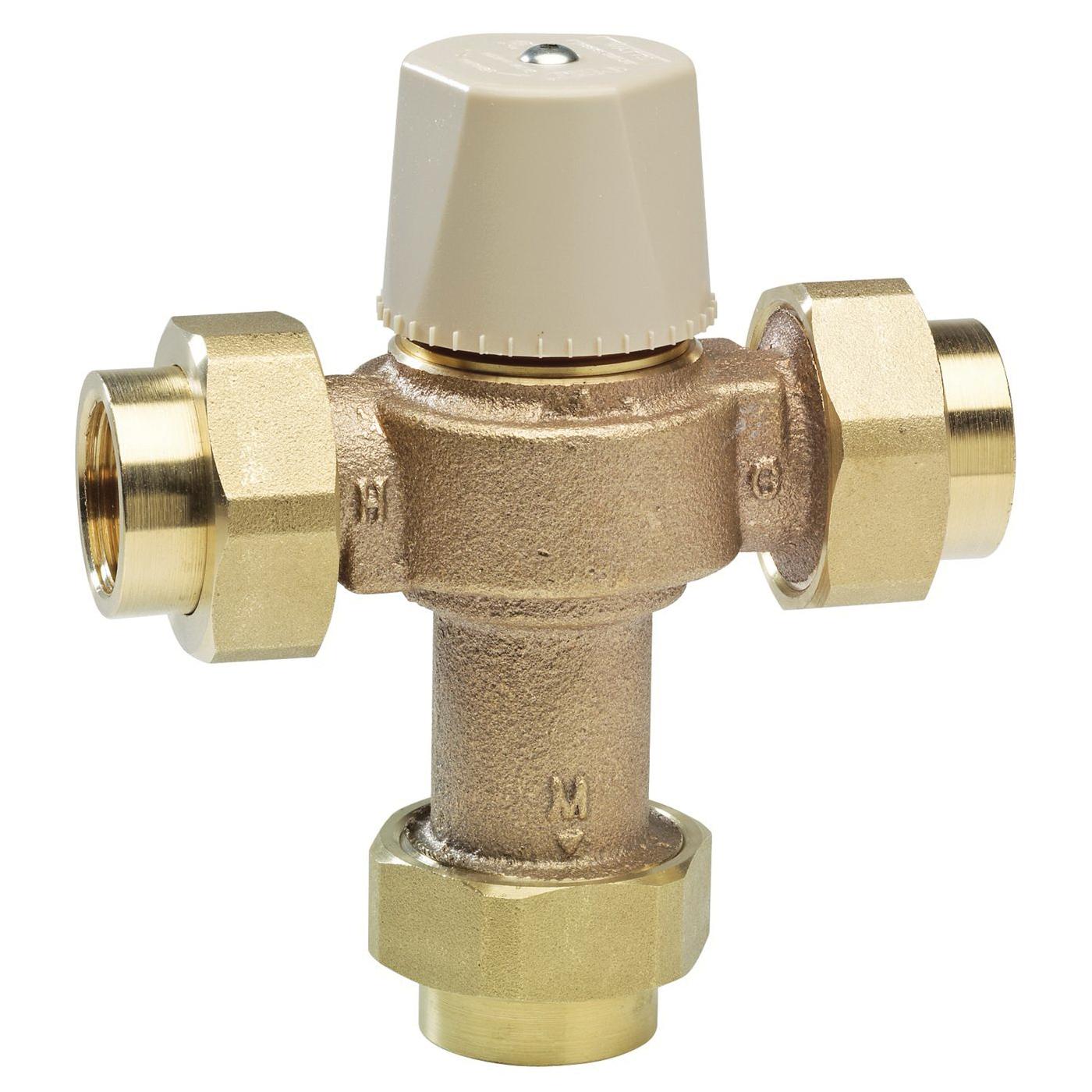

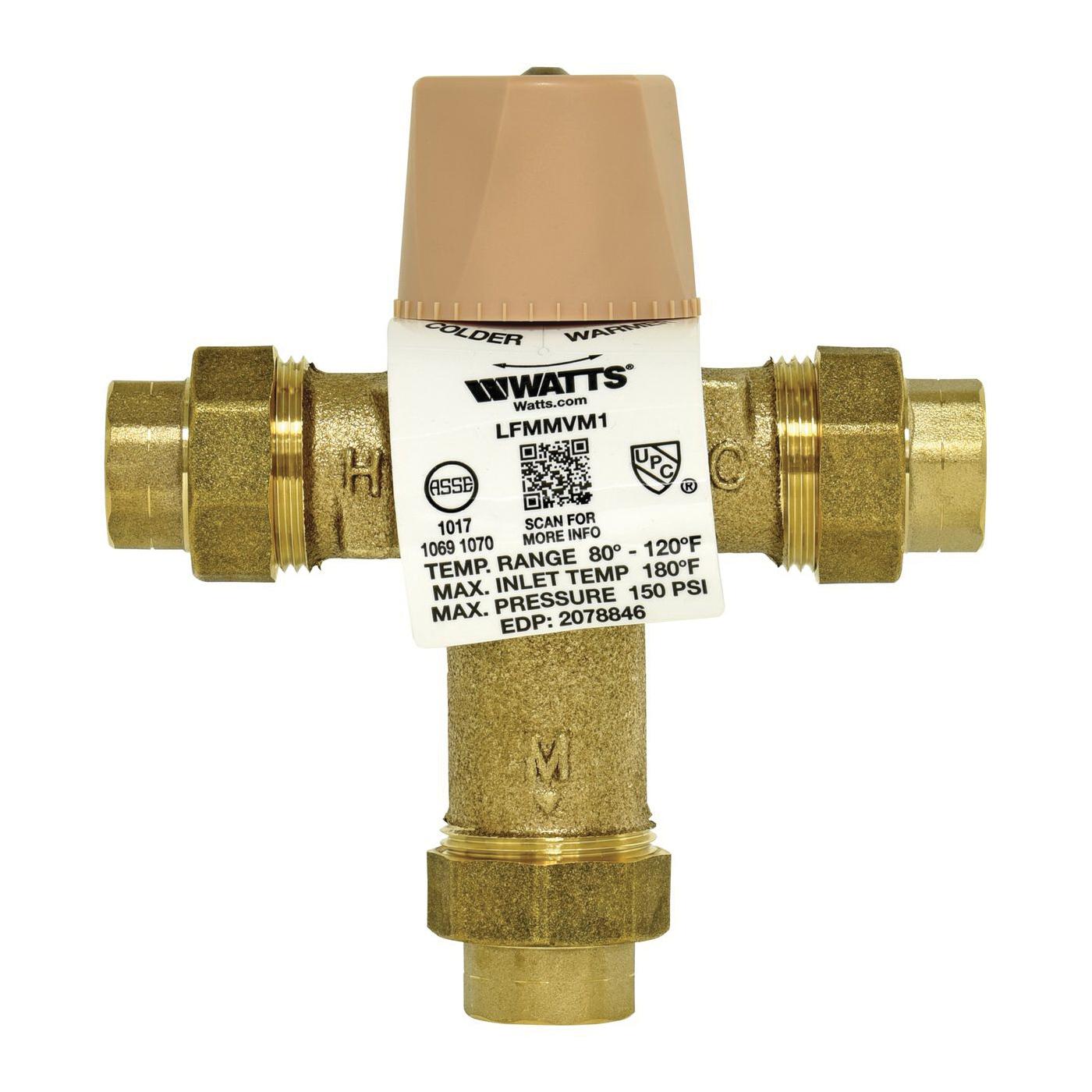

This 1/2 in lead-free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold-water supply to the mixed outlet. It consists of a lead-free brass body, threaded union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 deg F (27 to 49 deg C). The maximum pressure rating is 150 psi (10.3 bar).
WATTS® Thermostatic Mixing Valve, LFMMV Series, 1/2 in Nominal, FNPT x Threaded Connection, 150 psi, 0.5 to 20 gpm Flow Rate, Water Media, 3-3/16 in Inlet to Outlet Length, Copper Silicone Alloy Body, Buna-N/EPDM Seal, Stainless Steel Disc, Buna-N/EPDM Softgoods, Finish: Rough Bronze, 200 deg F, 5-7/16 in H x 4-7/8 in W
- Thermal actuation technology for precise temperature control
- Locking mechanism secures temperature setting
- Lead-free brass construction
- Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold-water
- Thermostat controls both hot and cold-water
- Adjustment cap with locking feature
- Integral filter washers and check valves
