| Connection Type | : | Socket |
| Dimensions | : | 5-5/8 in H x 5-5/16 in W |
| Flow Rate | : | 0.5 gpm |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Brass |
| Nominal Capacity | : | 23 gpm |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Seal Material | : | EPDM |
| Series | : | LF1170 Series |
| Temperature Rating | : | 40 to 200 deg F |

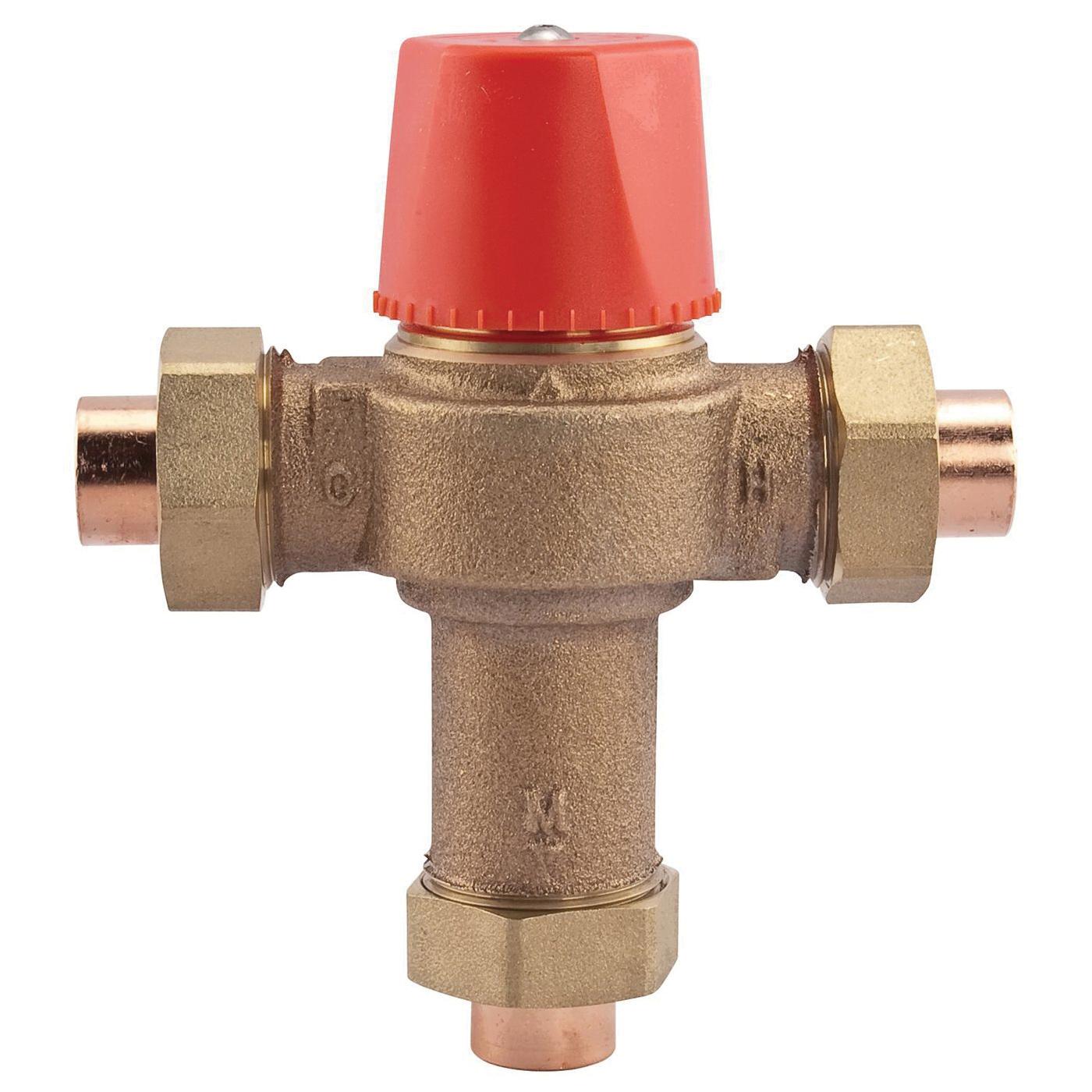

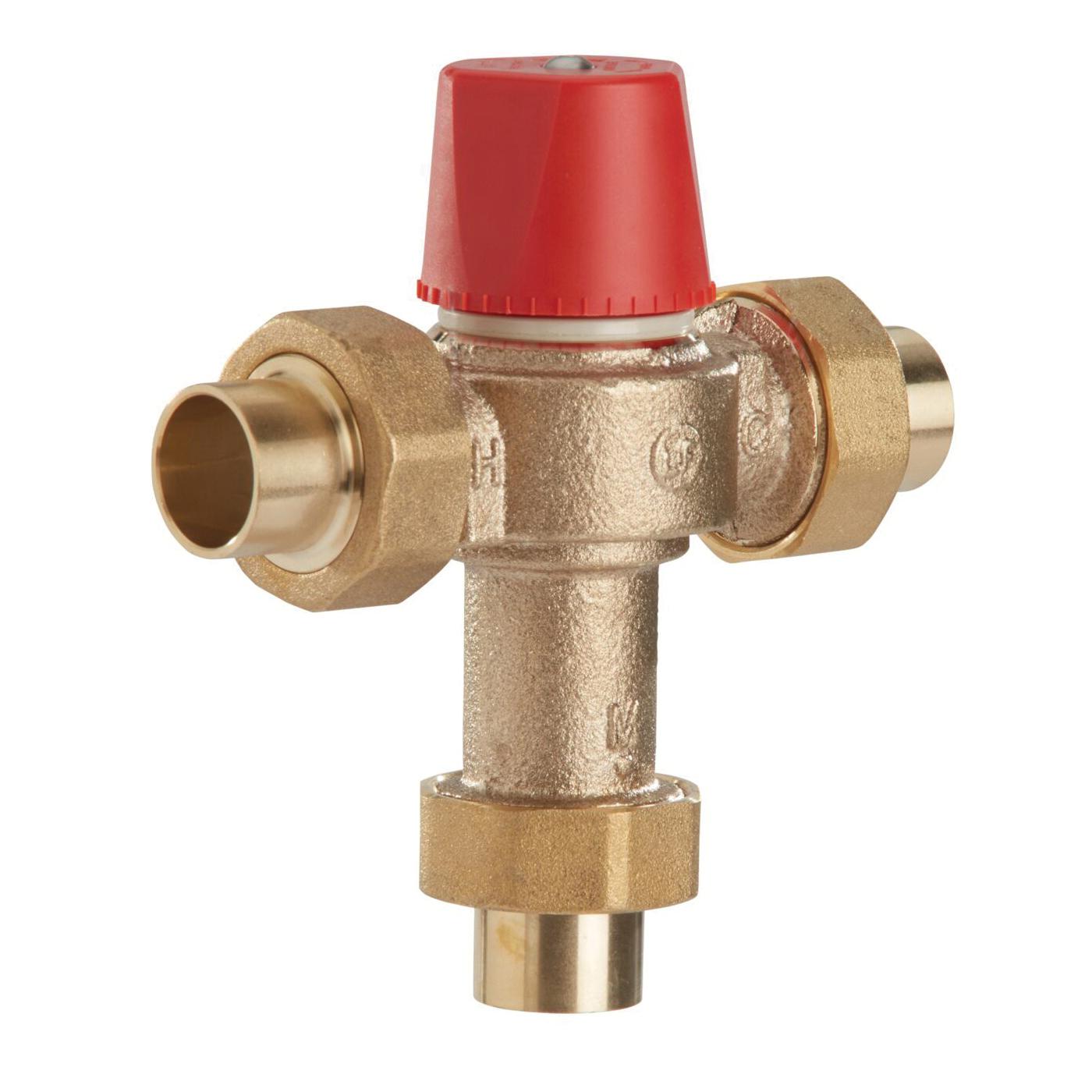

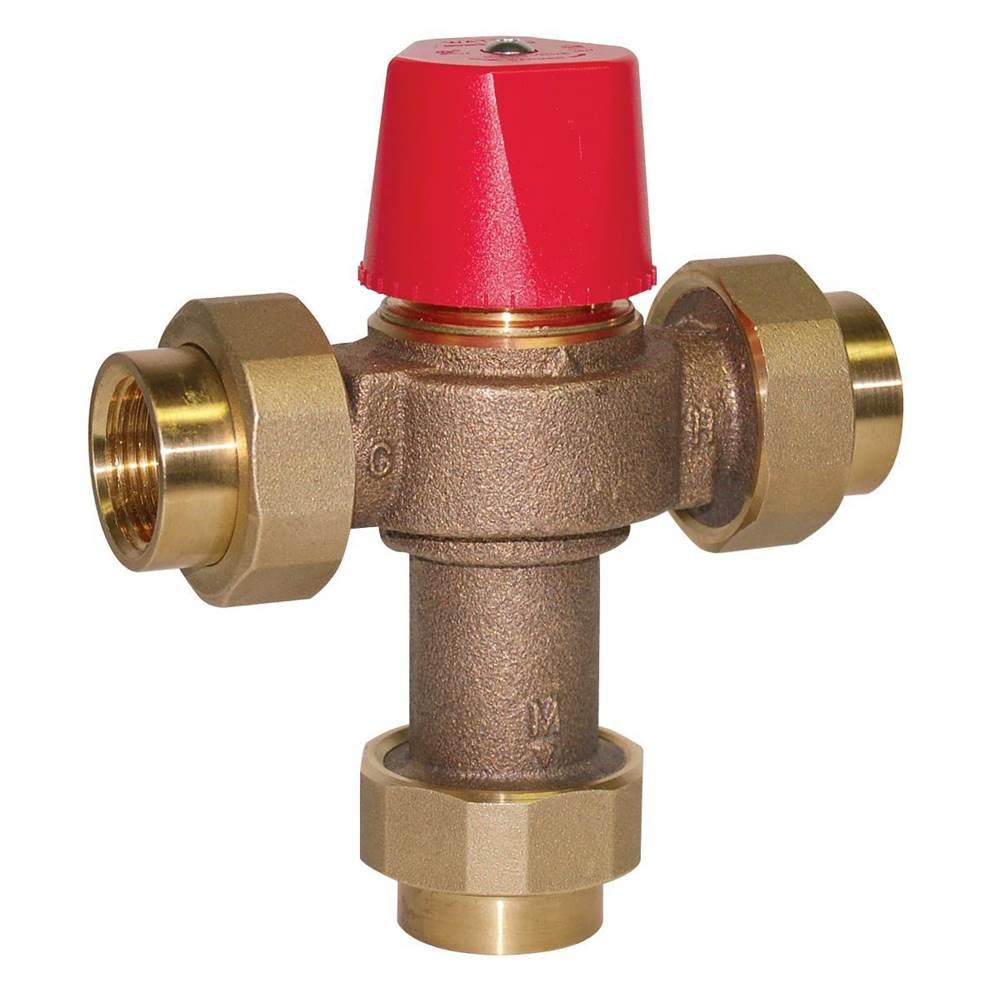

This 3/4 in lead-free hot water control valve is designed for installation on water heating equipment to provide Tempered® water to point-of-use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead-free brass body, solder union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shut-off upon loss of cold water supply and a locking mechanism for the temperature setting. The maximum pressure is 150 psi (10.3 bar). The adjustable field range temperature is 90 to 160 deg F (32 to 71 deg C).
WATTS® Temperature Control Valve, LF1170 Series, 3/4 in Nominal, Socket Connection, 0.5 gpm Flow Rate, 150 psi, EPDM Seal, Brass, 23 gpm Nominal Capacity, Lead-Free, 40 to 200 deg F, 5-5/8 in H x 5-5/16 in W
- Thermal actuation technology for precise temperature control
- Integral filter washers and check valves
- Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold water
- Adjustment cap with locking feature
