| Actuator Type | : | Lever Handle |
| Body Material | : | Copper Alloy |
| Connection Type | : | FNPT x MNPT |
| Dimensions | : | 3-11/64 in H x 1-5/32 in W |
| Disc Material | : | Silicone |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Series | : | LF3L Series |
| Temperature Rating | : | 210 deg F |

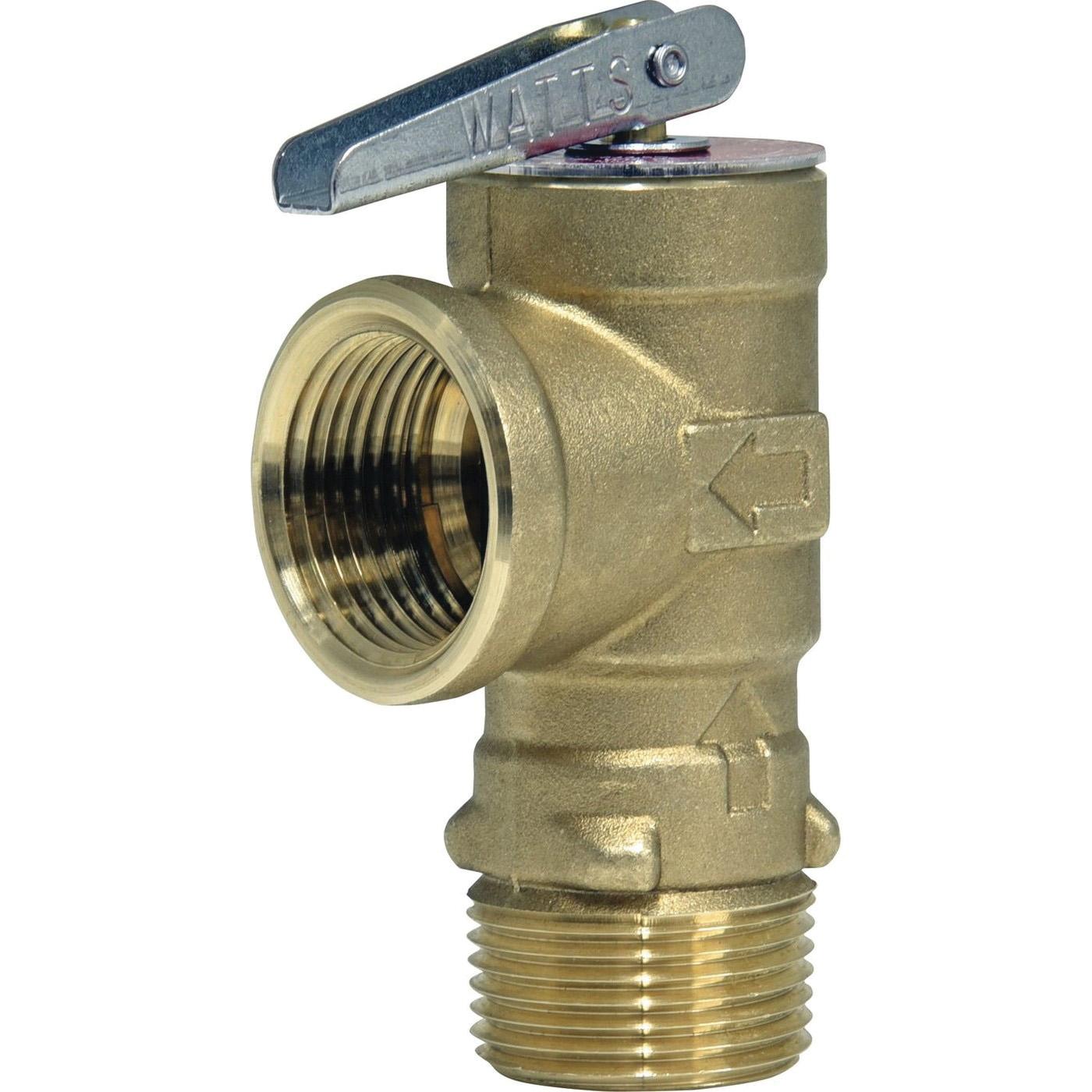

This 3/4 in lead-free pressure relief valve is used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. It consists of a lead-free copper alloy body with 3/4 in MNPT threaded inlet and 3/4 in FNPT threaded (drain) outlet, test lever and stainless steel spring.
WATTS® Pressure Relief Valve, LF3L Series, 3/4 in Nominal, FNPT x MNPT Connection, 150 psi Pressure, Media: Water, Lever Handle Actuator, Copper Alloy Body, Silicone Disc, 210 deg F, Dimensions: 3-11/64 in H x 1-5/32 in W
- Furnished with test levers
- Relieves excessive pressure on storage tanks
- Relieves excessive pressure on tankless water heaters
- Stainless steel springs
