| Body Material | : | Copper Silicon Alloy |
| Connection Type | : | MNPT x FNPT |
| Dimensions | : | 3-11/64 in H |
| Inlet to Outlet Length | : | 1-5/32 in |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 113 psi |
| Series | : | LF100XL Series |
| Temperature Rating | : | 210 deg F |

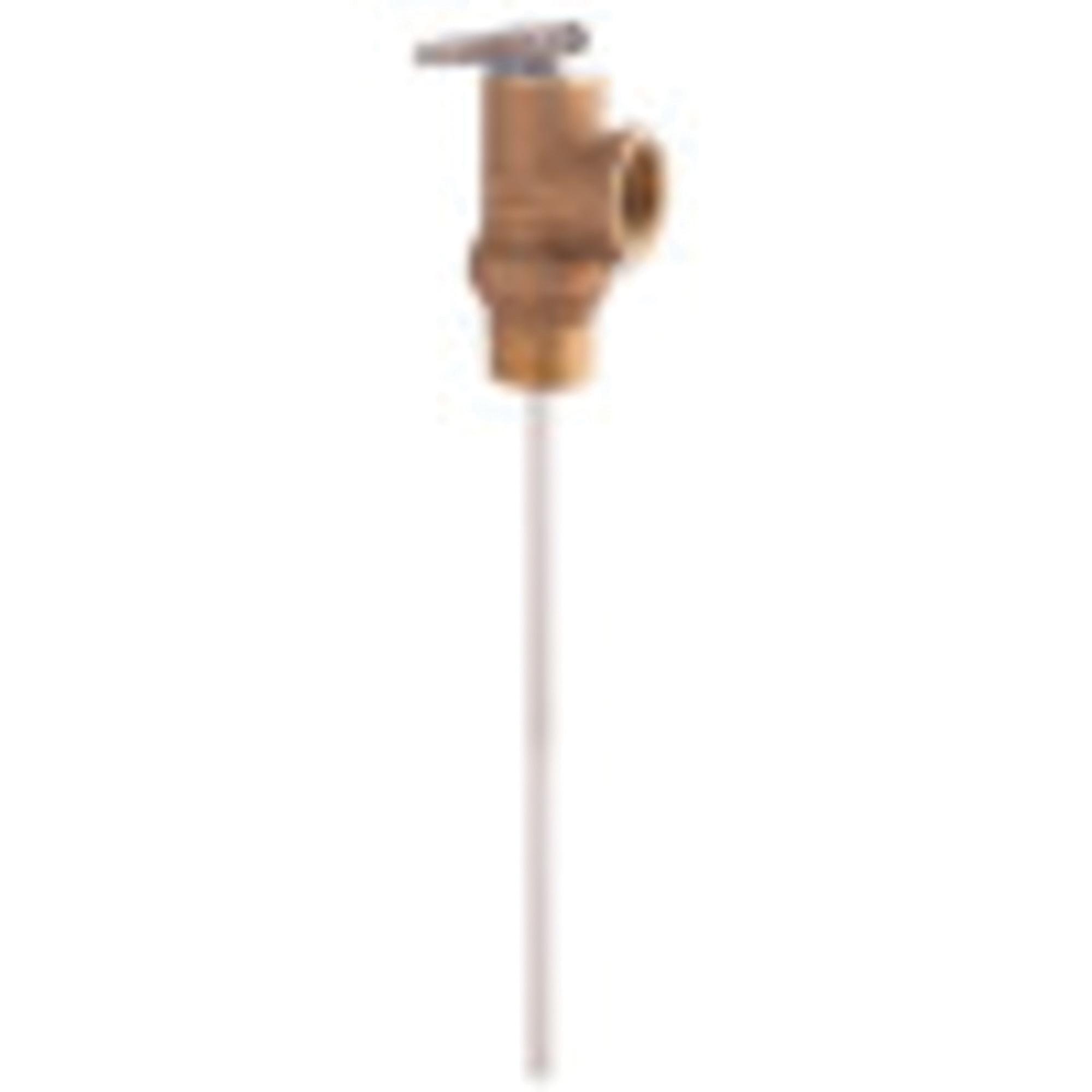

This 3/4 in lead-free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105000 Btu/hr. This 2-in-1 relief valve provides a proven and cost-effective means to protect against excessive temperature and pressure emergency conditions. It features a lead-free copper alloy body with MNPT inlet and FNPT outlet connections, a unique thermostat with special thermo-bonded-coating with 8 in extension and test lever. The temperature relief is 210 deg F (99 deg C) and the pressure relief is set at 150 psi (10.3 bar).
WATTS® Temperature and Pressure Relief Valve, LF100XL Series, 3/4 in Nominal, MNPT x FNPT Connection, 113 psi, Water Media, 1-5/32 in Inlet to Outlet Length, Copper Silicon Alloy Body, 210 deg F, 3-11/64 in H
- Protects against excessive temperature and pressure during emergency conditions
