| Body Material | : | Forged Brass |
| Connection Type | : | MNPT x FNPT |
| Dimensions | : | 2-13/16 in H |
| Disc Material | : | PTFE |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 15 psi |
| Seat Material | : | Metal |
| Series | : | 415-M1 Series |
Watts Regulators series 415 steam safety relief valves are used in commercial and industrial applications for low-pressure, steam heating boilers and process equipment. It consists of a brass body or a bronze body construction with MNPT inlet and FNPT outlet drain connection, stainless steel spring, a top-guided stem, and a non-stick teflon disc-to-metal seating. Model 415SC has satin chrome finish. Model 415L has low pressure setting at 8psi for pressure cookers and steam cleaning equipment. ASME section IV at 15 psi set point.

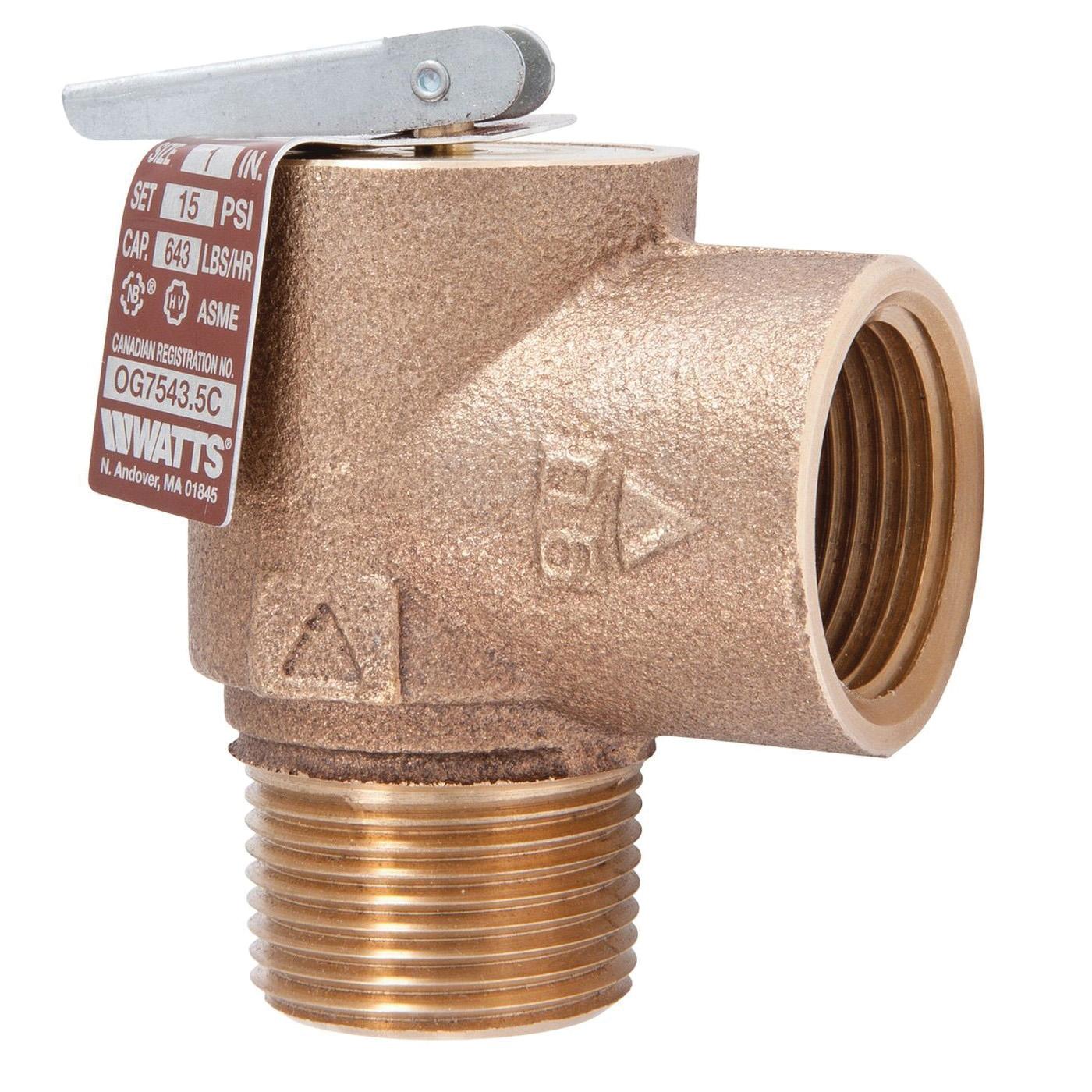

WATTS® Steam Safety Relief Valve, 415-M1 Series, 3/4 in Nominal, MNPT x FNPT Connection, 15 psi Pressure, Forged Brass Body, Metal Seat, PTFE Disc, Dimensions: 2-13/16 in H
- High capacity
- Positive shut-off
- Non-sticking teflon disc
- Seat located above drain
- 450 lb/hr nominal capacity
