| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Solder |
| Connection Type 2 | : | FNPT |
| Connection Type | : | Solder|FNPT |
| Fitting Type | : | Union |
| For Use With | : | Gas and Water Pipings, Hot Water Storage Tanks, Processing Tanks, Steams, Water and Air Conditioners |
| Hex Size | : | 1-5/8 in |
| Length | : | 1-7/8 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 250 psi |
| Series | : | LF3002 Series |
| Temperature Rating | : | 180 deg F |

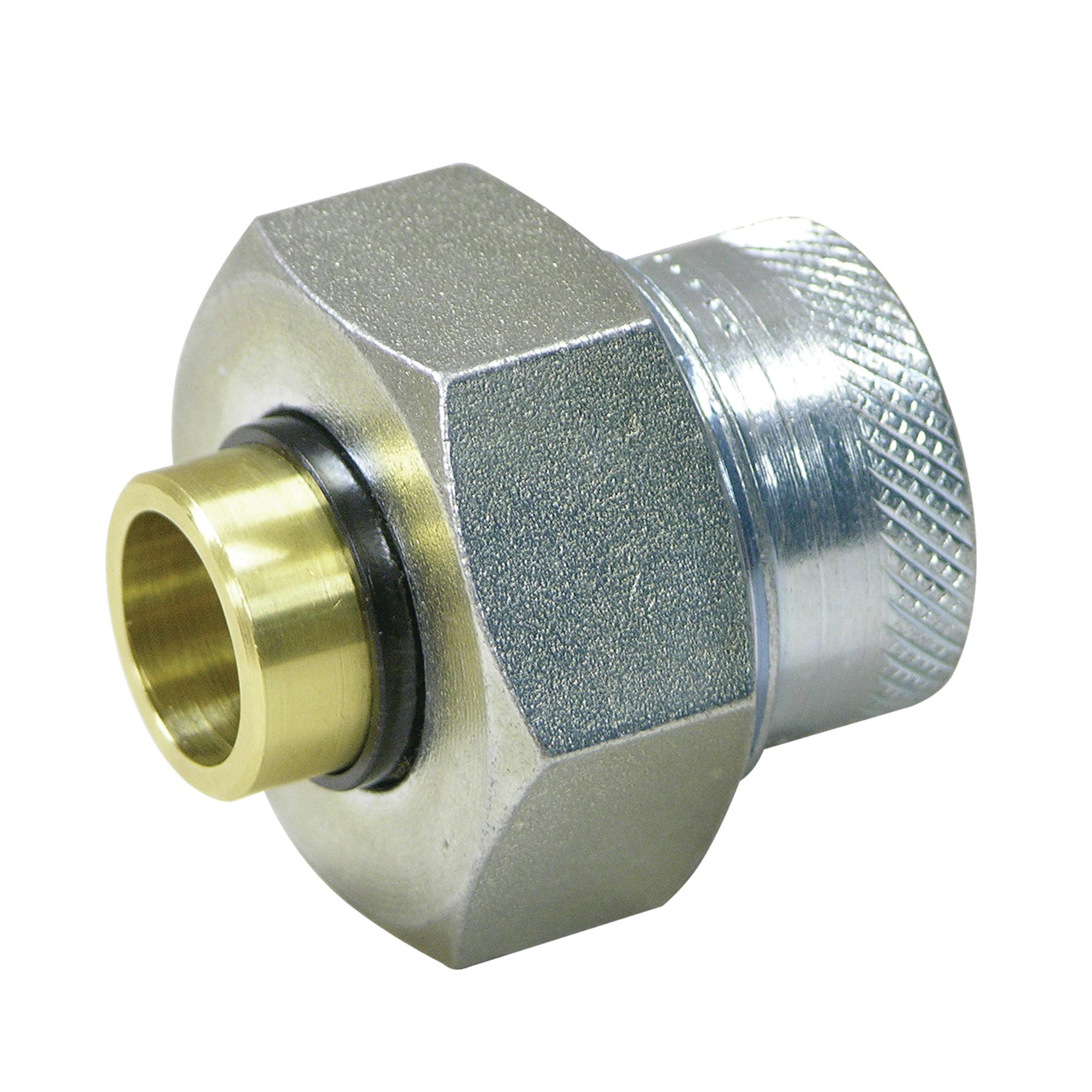

Series LF3002 lead-free dielectric unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and features a female iron pipe thread to reduced solder connection. It consists of a union nut, two tailpieces and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3002 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas and water piping.
WATTS® Union Fitting, LF3002 Series, Union Fitting, 3/4 in Connection Size 1, Connection Type 1: Solder, 1/2 in Connection Size 2, Connection Type 2: FNPT, Solder|FNPT Connection, 1-7/8 in Length, Brass, Material Construction: Brass, 250 psi, 1-5/8 in Hex, For Use With: Gas and Water Pipings, Hot Water Storage Tanks, Processing Tanks, Steams, Water and Air Conditioners, 180 deg F
- Female iron pipe thread to reduced solder connection
- Designed and manufactured to the highest quality standards
- Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Steel adapter and malleable iron nut
- Polysulfone insulator
