| Body Material | : | Copper Silicone |
| Connection Type | : | Union FNPT x FNPT |
| Dimensions | : | 6-1/4 in H x 2-1/4 in D |
| Disc Material | : | EPDM |
| Lead-Free/Contains Lead | : | Lead-Free |
| Media | : | Water |
| Nominal Size | : | 3/4 x 3/4 in |
| Pressure Rating | : | 25 to 75 psi Adjustable, 400 psi Maximum Working |
| Seat Material | : | Thermoplastic |
| Series | : | LFN55B-M1 Series |
| Temperature Rating | : | 33 to 180 deg F |
| Trim Material | : | Bronze |

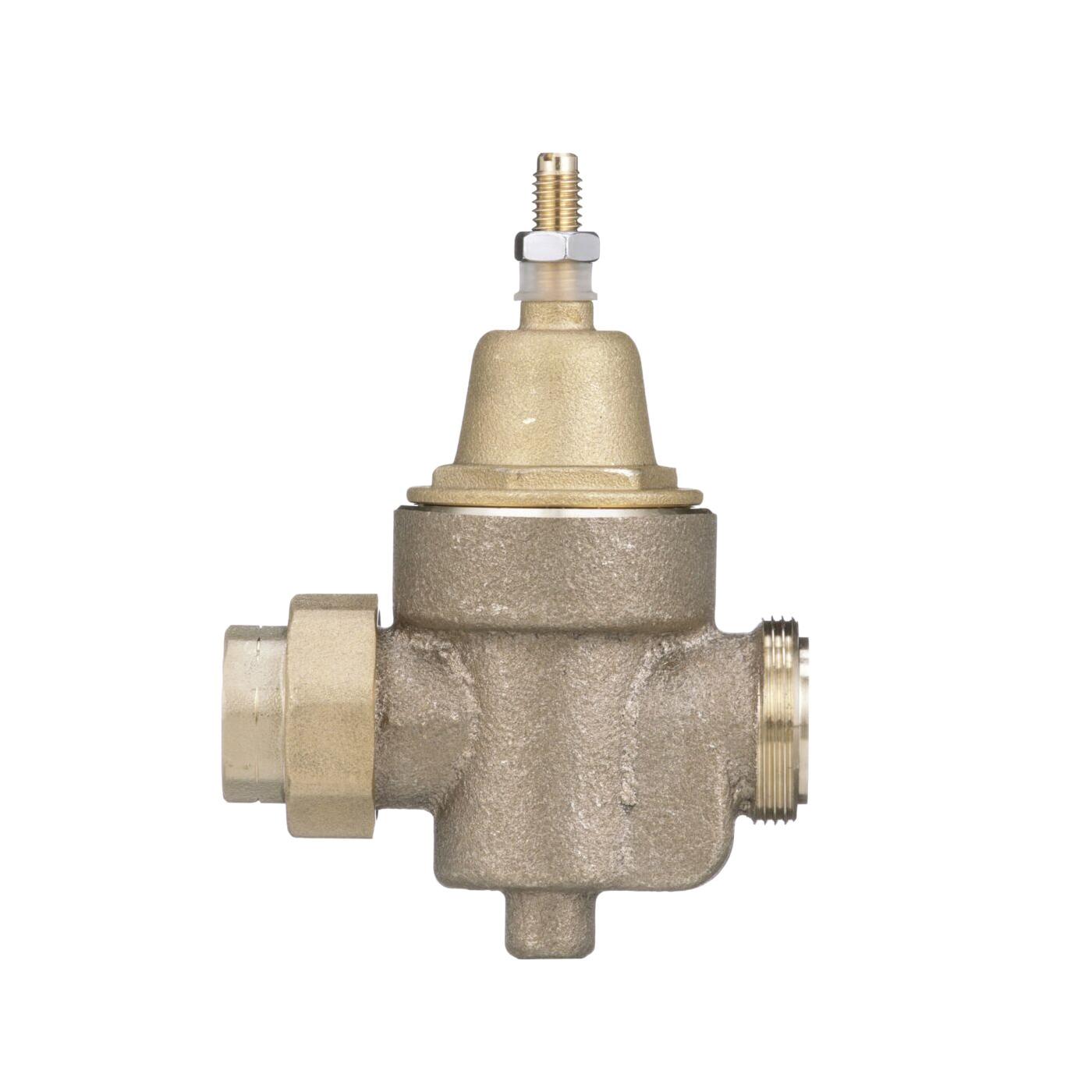

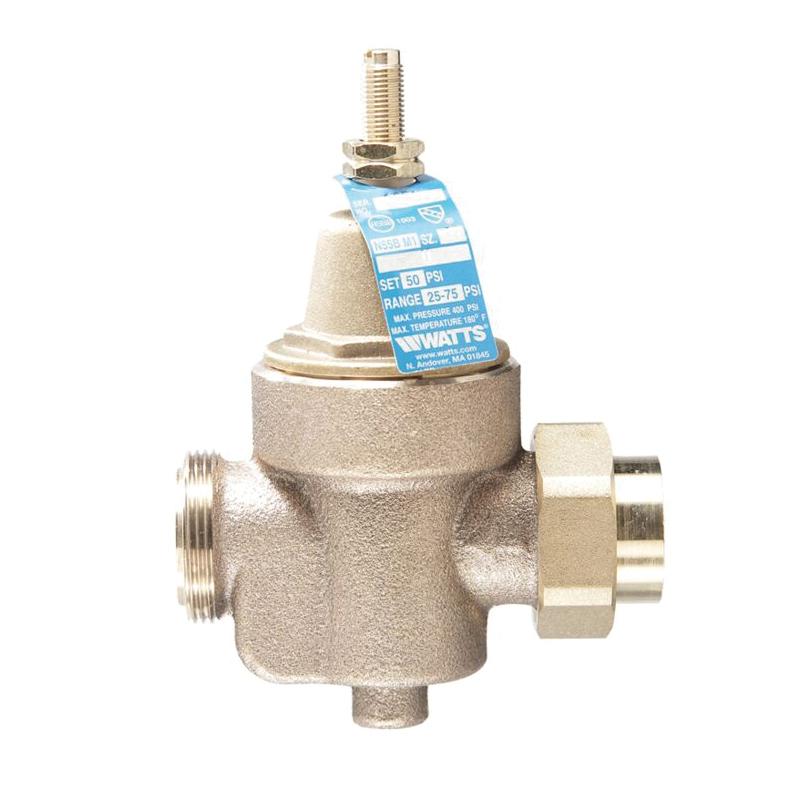

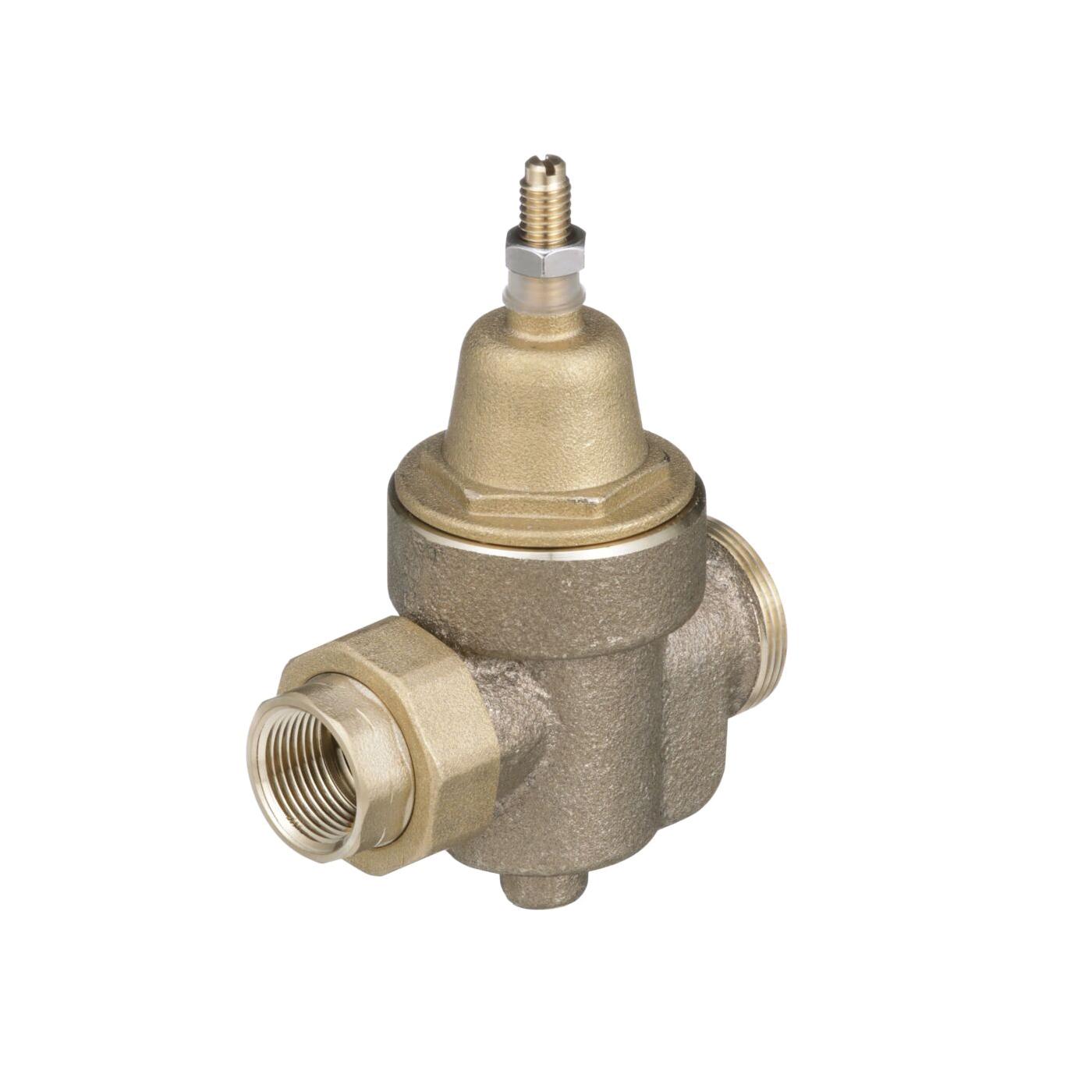

This 3/4 in water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead-free brass body construction, NPT threaded union female inlet x FNPT outlet connection, integral stainless steel strainer, thermoplastic seat, bronze sealed spring cage for accessible outdoor waterworks or pit installations and a thermal expansion bypass. The temperature range is 33 to 180 deg F. Suitable for up to 400 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
WATTS® Pressure Reducing Valve, LFN55B-M1 Series, 3/4 x 3/4 in Nominal, Union FNPT x FNPT Connection, 25 to 75 psi Adjustable, 400 psi Maximum Working, Water Media, Copper Silicone Body, Thermoplastic Seat, EPDM Disc, Bronze Trim, Lead-Free, 33 to 180 deg F, 6-1/4 in H x 2-1/4 in D
- Corrosion-resistant adjusting screw and sealed cage for waterworks pit installations
- NPT threaded union female inlet by NPT female outlet
- Thermoplastic seat and bronze cage
- Integral stainless steel strainer removable for cleaning
