| Body Material | : | Copper Silicon |
| Connection Type | : | FPT |
| Dimensions | : | 6-1/4 in H x 4-11/16 in W x 2-1/4 in D |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 400 psi |
| Series | : | LFN45BM1-U Series |
| Softgoods Material | : | Elastomer/EPDM/Thermoplastic |
| Temperature Rating | : | 33 to 180 deg F |
| Trim Material | : | Engineered Composite |

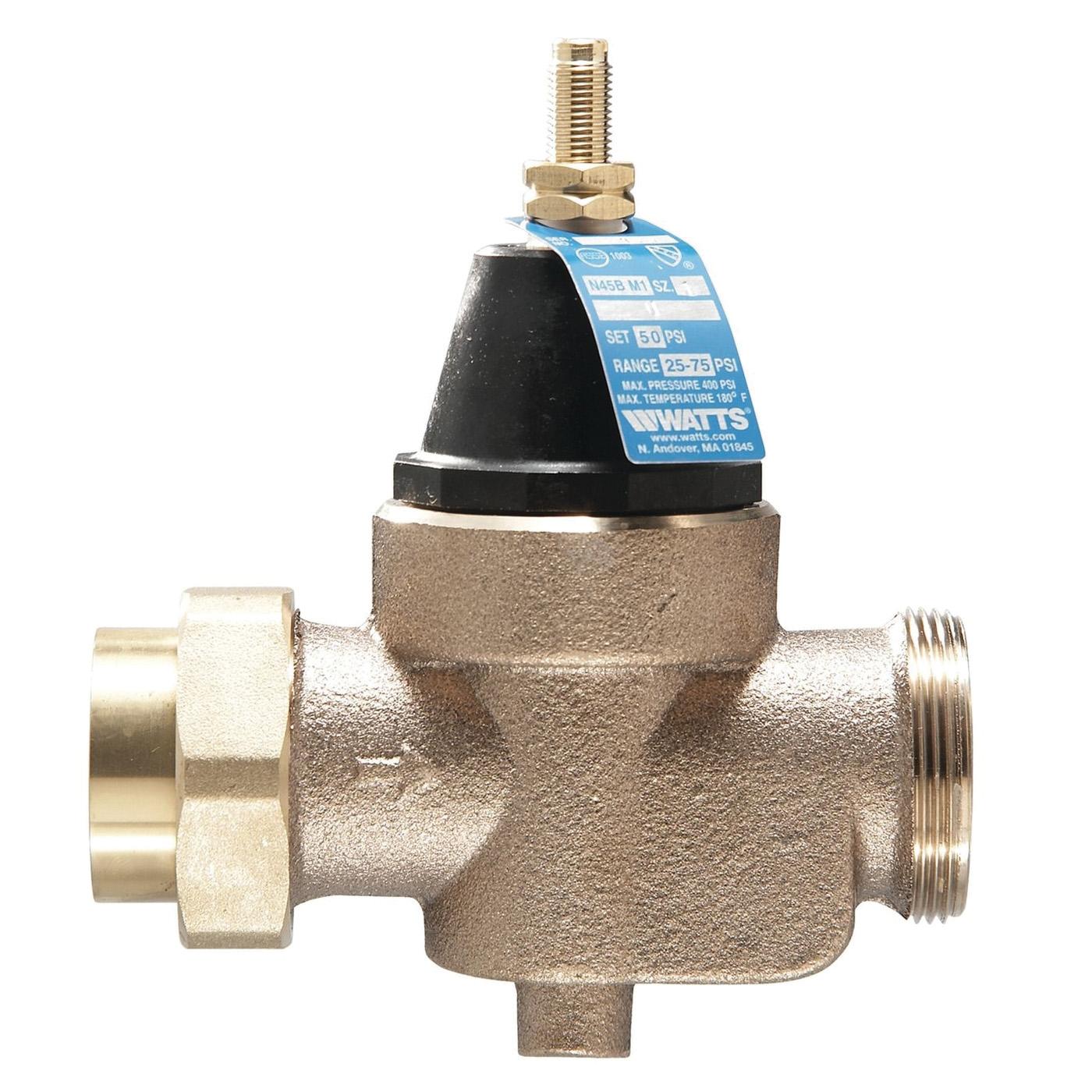

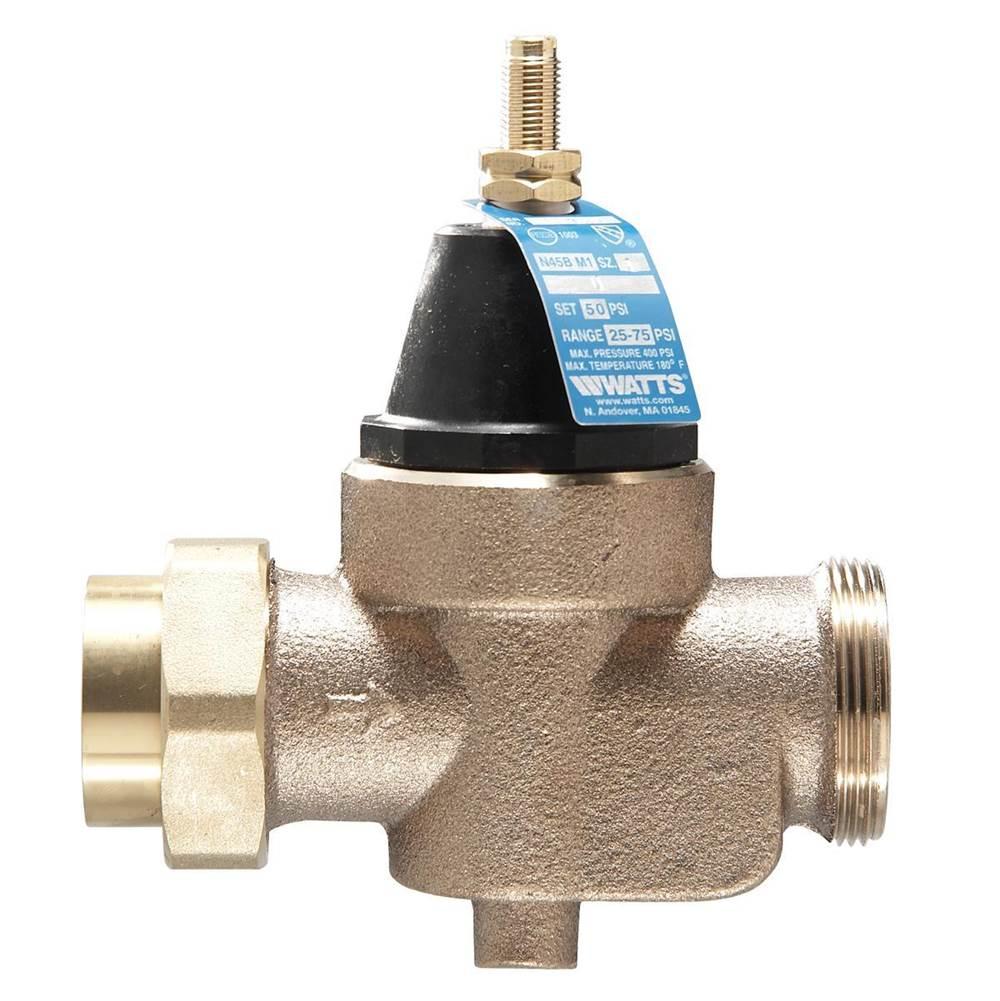

This 1/2 in water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead-free brass body construction, NPT threaded union inlet and NPT female outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 deg F. Suitable for up to 400 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
WATTS® Pressure Reducing Valve With Union, LFN45BM1-U Series, 1/2 in Nominal, FPT Connection, 400 psi, Copper Silicon Body, Engineered Composite Trim, Elastomer/EPDM/Thermoplastic Softgoods, 33 to 180 deg F, 6-1/4 in H x 4-11/16 in W x 2-1/4 in D
- Integral stainless steel strainer removable for cleaning
- Sealed spring cage for accessible outdoor or waterworks pit installations
- Serviceable in-line
- Thermoplastic seat and cage
