Amperage Rating | : | 0.5 A |
Connection Type | : | MNPT |
Dimensions | : | 4 in Dia x 20-1/2 in L |
Flow Rate | : | 9 to 23 gpm |
Frequency Rating | : | 50/60 Hz |
Inlet Pipe Size | : | 3/4 in |
Material | : | 304 Stainless Steel |
Outlet Pipe Size | : | 3/4 in |
Power Rating | : | 50 W |
Pressure Rating | : | 4 to 125 psi |
Temperature Rating | : | 32 to 104 deg F |
Voltage Rating | : | 100-240 V |
The D4 has been validated through microbial testing to inactivate the following microorganisms, Cryptosporidium, Giardia, E.Coli and Fecal Coliform. The D4 is easy to maintain and built to deliver outstanding UV performance for the average size home or light commercial application, for flow rates up to 12 gpm (45 Lpm).

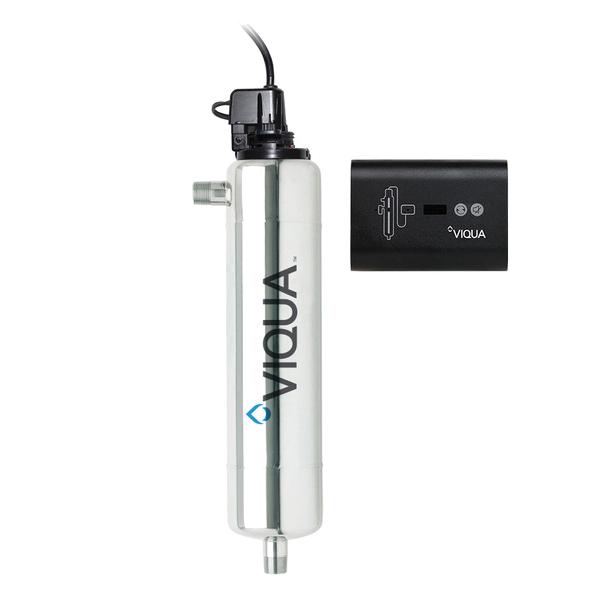

VIQUA™ Home UV System, 9 to 23 gpm Flow Rate, MNPT Connection, 4 to 125 psi, 3/4 in Inlet Pipe, 3/4 in Outlet Pipe, 100-240 V, 0.5 A, 50 W, 50/60 Hz, 304 Stainless Steel, 32 to 104 deg F, 4 in Dia x 20-1/2 in L
- High UV output lamp technology allows for a smaller footprint while providing the same UV performance as a longer chamber
- The constant current feature ensures stable UV lamp output, regardless of power fluctuations
- Audible lamp replacement reminder and countdown timer with digital display, indicator lights show the status of system components, warning lights appear when system maintenance is required
- Built with a 304 stainless steel to prolong life and eliminate degradation
- High performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hr)
