| AFUE Rating | : | 95 % |
| Amperage Rating | : | 12 A |
| Area | : | 31.99 sq-ft Heat Exchanger |
| BTU Rating | : | 32 to 199 MBtu/hr Natural, 60 to 199 MBtu/hr LP |
| Capacity | : | 3.85 gal |
| Connection Type | : | 1-1/2 in NPTM Supply/Return, 3/4 in Male Thread Drain |
| Dimensions | : | 43-1/2 in H x 19 in W x 21 in D |
| Flow Rate | : | 14.3 gpm |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane Gas, Natural Gas |
| Material | : | Stainless Steel |
| Mounting Type | : | Wall |
| Net BTU Rating | : | 160 MBtu/hr |
| Noise Rating | : | 39 to 67 dB Input |
| Series | : | B2HB Series |
| Vent Type | : | Coaxial |
| Voltage Rating | : | 120 VAC |

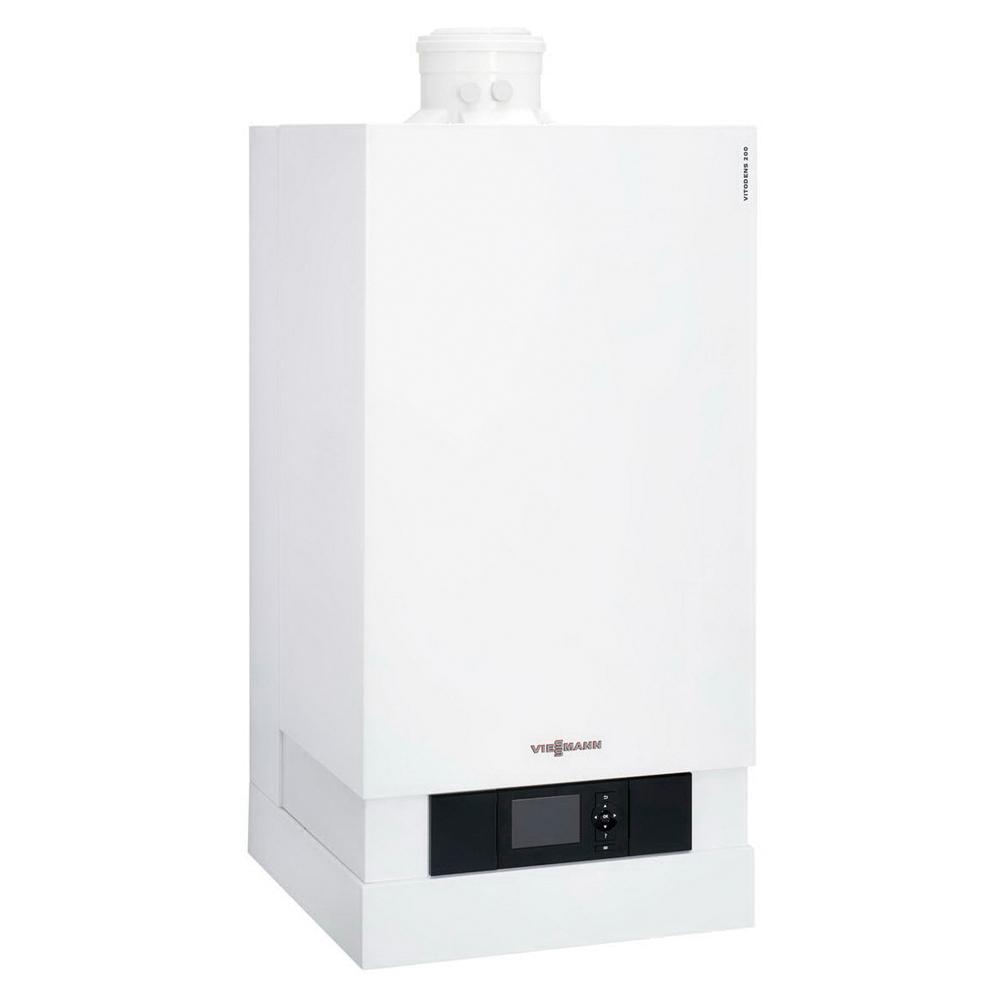

Equipped with the industry's first intelligent combustion management system and powerful control technology, the new generation Vitodens 200-W gas-fired wall-mount condensing boiler delivers unparalleled performance, reliability and comfort. Gas-fired wall-mount condensing boiler with modulating MatriX cylinder burner for room air independent operation (using a direct vent system) or room air dependent operation.
VIESSMANN® Water Boiler, B2HB Series, 120 VAC, 12 A, 60 Hz Frequency, 95 % AFUE, 32 to 199 MBtu/hr Natural, 60 to 199 MBtu/hr LP BTU, 3.85 gal Capacity, 14.3 gpm Flow Rate, 1-1/2 in NPTM Supply/Return, 3/4 in Male Thread Drain Connection, Liquid Propane Gas, Natural Gas Fuel, Coaxial Vent, Net BTU Rating: 160 MBtu/hr, Noise Rating: 39 to 67 dB Input, 31.99 sq-ft Heat Exchanger Area, Wall Mounting, Stainless Steel, Dimensions: 43-1/2 in H x 19 in W x 21 in D
- Best value in its class with new industry leading technology and the most standard features
- Lasting performance with industry-leading Viessmann made SA240 316 Ti stainless steel inox-radial heat exchanger constructed to CSA B51 and ASME section IV
- Low emission combustion with Viessmann made stainless steel MatriX cylinder burner, factory calibrated
- Intelligent lambda pro gas management system automatically adjusts to different gas qualities for optimum efficiency and performance
- Modulation ratio up to 6.5:1 ensures extremely high efficiency
- Multiple venting options and greater venting flexibility with vent length up to 180 ft
- Compact, lightweight design and zero clearance to combustibles
- Extremely quiet operation, quieter than most refrigerators
- Highest efficiency up to 98% at full modulation and up to 93.3% AFUE
