| AC Current Accuracy | : | +/-2 % |
| Additional Information | : | AAA Battery Size |
| Counts | : | 6000 |
| Dimensions | : | 8.85 x 3.5 x 1.75 in |
| Display Type | : | Backlit |
| Frequency Rating | : | 99.99 Hz to 9.999 MHz |
| Jaw Capacity | : | 1-1/4 in |
| Operating Temperature | : | 32 to 104 deg F |
| Resistance | : | 60 MOhm |
| Safety Rating | : | CAT IV 600 V |
| Voltage Accuracy | : | +/-1 % |

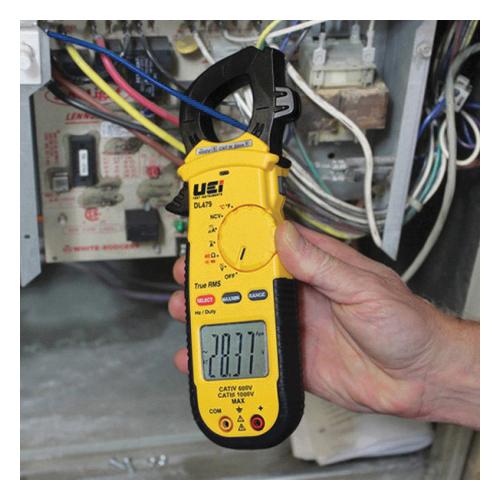

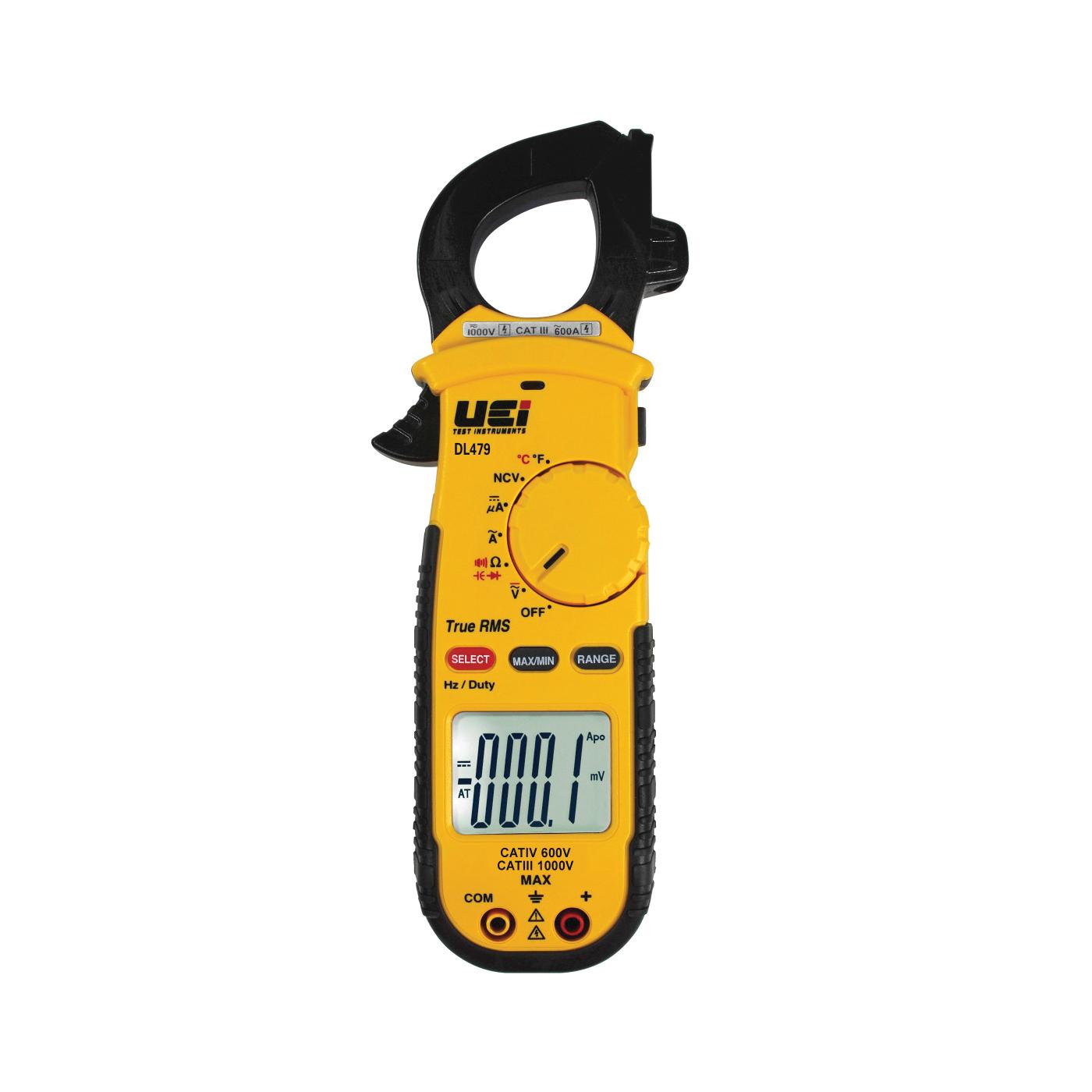

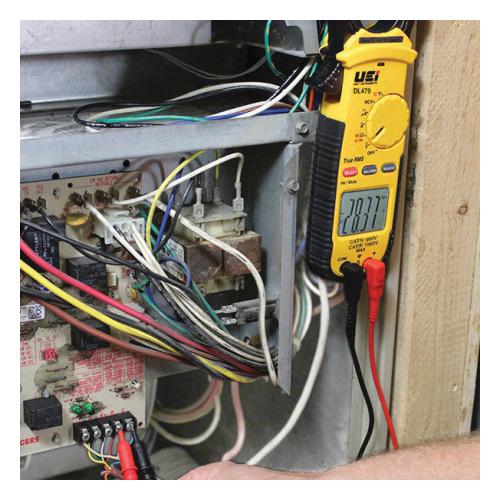

The DL479 is a True RMS HVAC/R Digital Clamp-On meter designed to measure 600A AC, 750V AC/600V DC, resistance, microamps, capacitance, frequency, temperature and non-contact voltage detection. Also rated to CATIV 600V/CATIII 1000V. The DL479 includes test leads, a thermocouple probe, a zippered canvas pouch and is backed by 2-Year limited warranty.
UEi TEST INSTRUMENTS™ Clamp Meter, 60 MOhm Resistance, 1-1/4 in Jaw, 6000, 99.99 Hz to 9.999 MHz, Backlit Display, +/-2% AC Current Accuracy, +/-1% Voltage Accuracy, CAT IV 600 V, 32 to 104 deg F Operating, 8.85 x 3.5 x 1.75 in, Additional Information: AAA Battery Size
- Data hold
- Manual ranging option
- Worklight
- Audible voltage indicator
- Auto power-off
- Low battery indicator
- Over molded grip
- Test lead storage
- Auto calibration
- Battery compartment latches
- Minimum/maximum (25 ms fast capture)
- Backlight, magnetic mount
- Functions: true RMS, 600 A AC, 750 VAC/600 VDC, resistance 60 Mohm, 2000 uA DC, diode test, non-contact voltage detection, audible continuity, 6000 count display, capacitance 2000 uF, -13 to 752 deg F temperature, frequency/duty cycle
- ATL55 CATIV 600V/CATIII 1000V test leads, AAC3 alligator clips, zippered pouch, (2) AAA batteries and manual
