| Accuracy | : | +/-0.3%, +/-5% |
| Color | : | Black/Red/Yellow |
| Display Type | : | Backlit LCD |
| Humidity Rating | : | 10 to 90% Relative Non-Condensing |
| Material | : | Plastic |
| Measuring Range | : | 20 to 2400 deg F, 0 to 21%, 0 to 20%, 0 to 0.999% |
| Resolution | : | 0.1 deg C, 0.1% |
| Response Time | : | 1 s |
| Temperature Rating | : | 32 to 112 deg F |

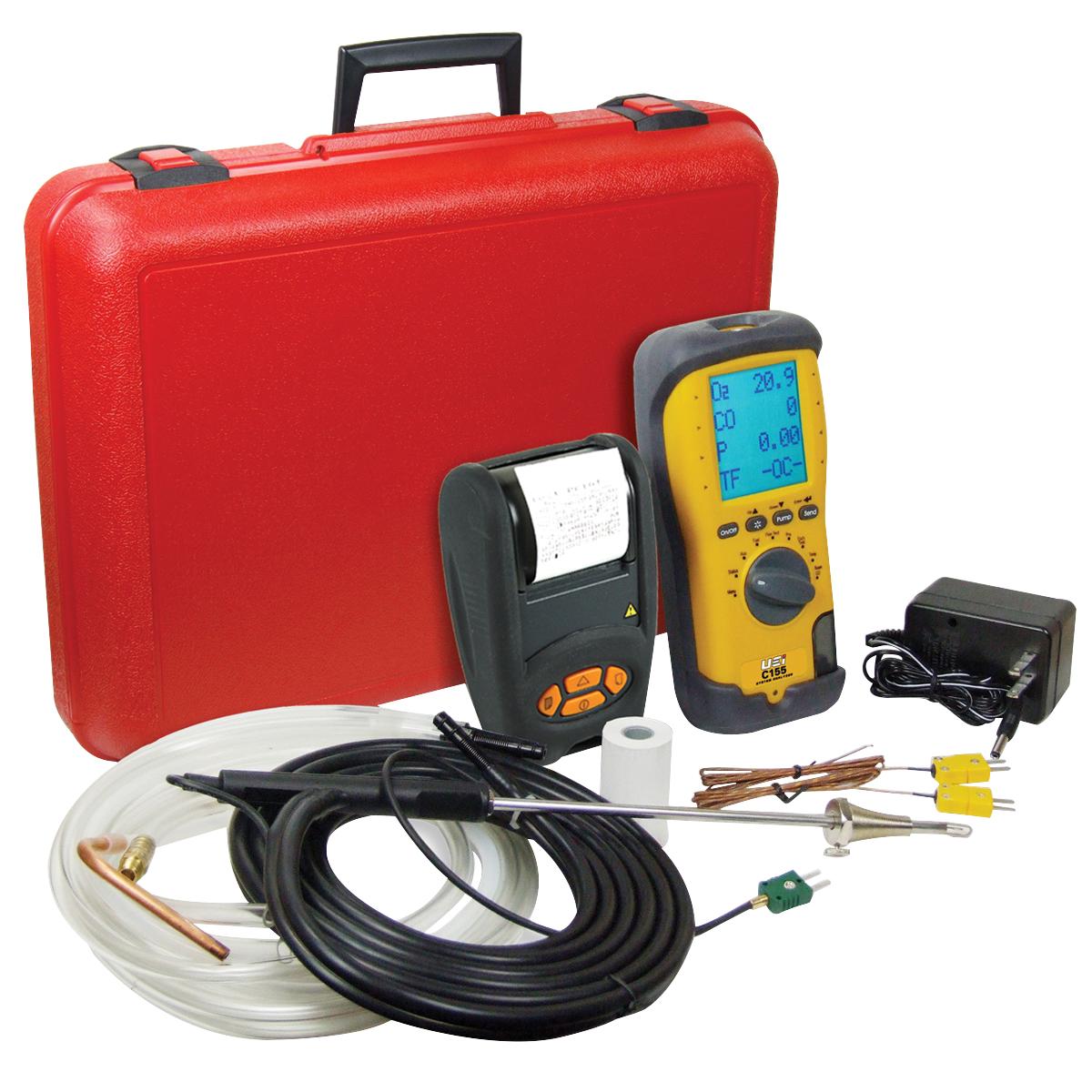

UEi TEST INSTRUMENTS™ Combustion Analyzer Kit, Backlit LCD Display, 20 to 2400 deg F, 0 to 21%, 0 to 20%, 0 to 0.999% Measuring, +/-0.3%, +/-5% Accuracy, 0.1 deg C, 0.1% Resolution, 1 s Response, Plastic, Black/Red/Yellow, 10 to 90% Relative Non-Condensing Humidity Rating, 32 to 112 deg F
- Measures - differential flue temperature, carbon dioxide (CO2), flue and ambient carbon monoxide (CO) and differential pressure
- Calculates oxygen, efficiency, excess air and CO air-free
- 179 memory positions
- User customizable parameters view
- Individual report printouts
- Unique DMM-style rotary selector
- Protective boot with integral magnet
- Real time clock
- CO readings to 1 mg/L
- Infrared printer port
- Verifies proper combustion, equipment efficiency and integrity analyze combustion gas makeup and stack gases set gas pressures
- Measures temperatures for live fire of gases, temperature rise and differential drops across coils, inlet and superheat readings
- Perform pressure test for drops across coils, gas pressures, limit switches, building pressures and zone pressures
- 60 sec warm up time
