| Capacity | : | 13 gpd |
| Coverage Area | : | Up to 2800 sq-ft |
| Dimensions | : | 13 in W x 12 in H x 8-3/4 in THK |
| Frequency Rating | : | 60 Hz |
| Humidity Rating | : | 65 to 75% Relative |
| Plenum Opening | : | 9-1/4 in W x 8-1/4 in H |
| Series | : | CM200 |
| Voltage Rating | : | 24 VAC |

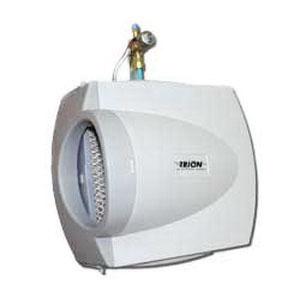

The compact, durable CM200 evaporative humidifier was designed for homes up to 2800 sq-ft, where there may be limited space available for mounting. The evaporated water is released into the home by the furnace or air handler. The adjustable, humidistat allows the user to choose the optimum humidity level for maximum indoor comfort. As warm air passes across the moist humidifier pad, water is evaporated into the air stream. This raises the relative humidity of the air and contributes to the overall indoor air quality. Controlled humidity helps alleviate respiratory ailments as well as protect home furnishings and woodwork from the damages associated with dry air. When used with warm air furnaces, CM200 humidifiers deliver a peak capacity of 13 gal/day.
Trion® Humidifier, Series: CM200, 24 VAC, 60 Hz, 9-1/4 in W x 8-1/4 in H Plenum Opening, 13 gpd, Up to 2800 sq-ft, 65 to 75% Relative Humidity, 13 in W x 12 in H x 8-3/4 in THK
- Easy to install, compact and durable design
- Adjustable, precision duct or wall-mounted humidistat allows the unit to be set for optimum relative humidity
- Universal-mounting allows for left or right side air intake when installed
- 2 in evaporator pad expands the evaporative area for water supply and increases performance
- Accessible from the front, making pad changes easy
- Serviceable internal water filter protects solenoid
- Self-piercing saddle valve and a 24 V brass solenoid valve makes installation easy
- Wide 6 in duct collar for ease of installation
- Complete installation kit and humidistat control included for immediate installation
- 1-screw secures cover
- Saves on HVAC energy costs while improving indoor comfort
- Increasing a home's relative humidity makes it feel more comfortable at 68 deg F than it does at 73 deg F at a low relative humidity level
- Lower thermostat settings deliver substantial savings on monthly energy bills
- 1/4 in OD water connection
