| Amperage Rating | : | 0.8 A |
| Capacity | : | 18 gpd |
| Connection Type | : | 1/4 in OD Water, 1/2 in ID Overflow |
| Dimensions | : | 11.24 in L x 14.58 in W x 18.12 in H |
| Pressure Rating | : | 20 to 100 psi |
| Series | : | CB100-S |
| Temperature Rating | : | 120 deg F |
| Voltage Rating | : | 120 VAC |
| Water Pressure | : | 20 to 100 psi |
As warm air passes across the moist humidifier pad, water is evaporated into the air stream. This raises the relative humidity of the air and contributes to the overall indoor air quality. Controlled humidity helps alleviate respiratory ailments as well as protect home furnishings and woodwork from the damages associated with dry air. ComfortBreeze humidifiers consume very little electricity and are available with optional, patented1 H2OSmart Technology to minimize water consumption and maximize output capacity. H2OSmart controls are equipped with fault annunciation and a service indicator to assist in troubleshooting any problems that may occur.

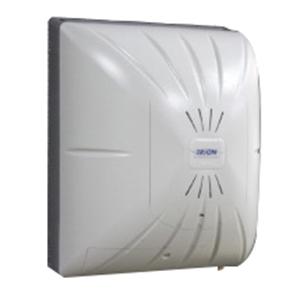

Trion® ComfortBreeze Evaporative Humidifier, Series: CB100-S, 120 VAC, 0.8 A, 18 gpd, 1/4 in OD Water, 1/2 in ID Overflow, 20 to 100 psi Water, 20 to 100 psi, 120 deg F, 11.24 in L x 14.58 in W x 18.12 in H
- H2OSmart technology controls self-adjust to compensate for variations in temperature, airflow and water pressure allowing the CB100S to provide maximum performance and water savings regardless of system conditions
- H2OSmart equipped humidifiers have the highest peak capacity and are the only humidifiers available with a constant drain water ratio
- Environmentally friendly ComfortBreeze humidifiers consume less than 10 W of electricity and H2OSmart technology translates into greater than 85% water savings versus conventional competing units
- Versatile installation fan-powered models are compatible with any type furnace system: single stage, variable speed or modulating
- Push-to-lock fittings water connections provide quick and easy installation and worry free operation
- Fault annunciation the CB100S provides LED indication of fault codes and when evaporative pad replacement is necessary
- Independent operation the CB100S can be installed so that a "call for heat" is not required for the unit to deliver humidification, H2OSmart equipped models feature a relay that can power the HVAC blower
- H2OSmart technology maximizes humidification capacity while conserving water across all temperature conditions
- Increasing a home's relative humidity can make it feel comfortable at a lower temperature (68 deg F can feel equivalent to a dry 73 deg F)
- Lower thermostat settings can deliver substantial savings on monthly energy bills, every deg of setback represents
- Save on energy costs and improve comfort
- No need to plumb to hot water lines as is recommended for other evaporative humidifiers to "help" improve their performance, the patented H2OSmart technology automatically maximizes evaporative performance without the added cost of using hot water
- Capacity reduction
- 1/4 in OD tubing water connection
- 1/2 in ID tubing overflow connection
- 20 - 100 psi water supply
- Electronic humidistat
- H2OSmart technology
- Made in USA
