| Actual Size | : | 19-3/4 x 24-1/4 x 4.94 in |
| Air Flow Capacity | : | 2000 cfm |
| Depth | : | 5 in |
| Height | : | 25 in |
| Initial Resistance | : | 0.07 at 300 fpm |
| MERV | : | 8 |
| Media Material | : | Synthetic Fiber |
| Rated Velocity | : | 300 fpm |
| Series | : | Supreme Series |
| Width | : | 20 in |

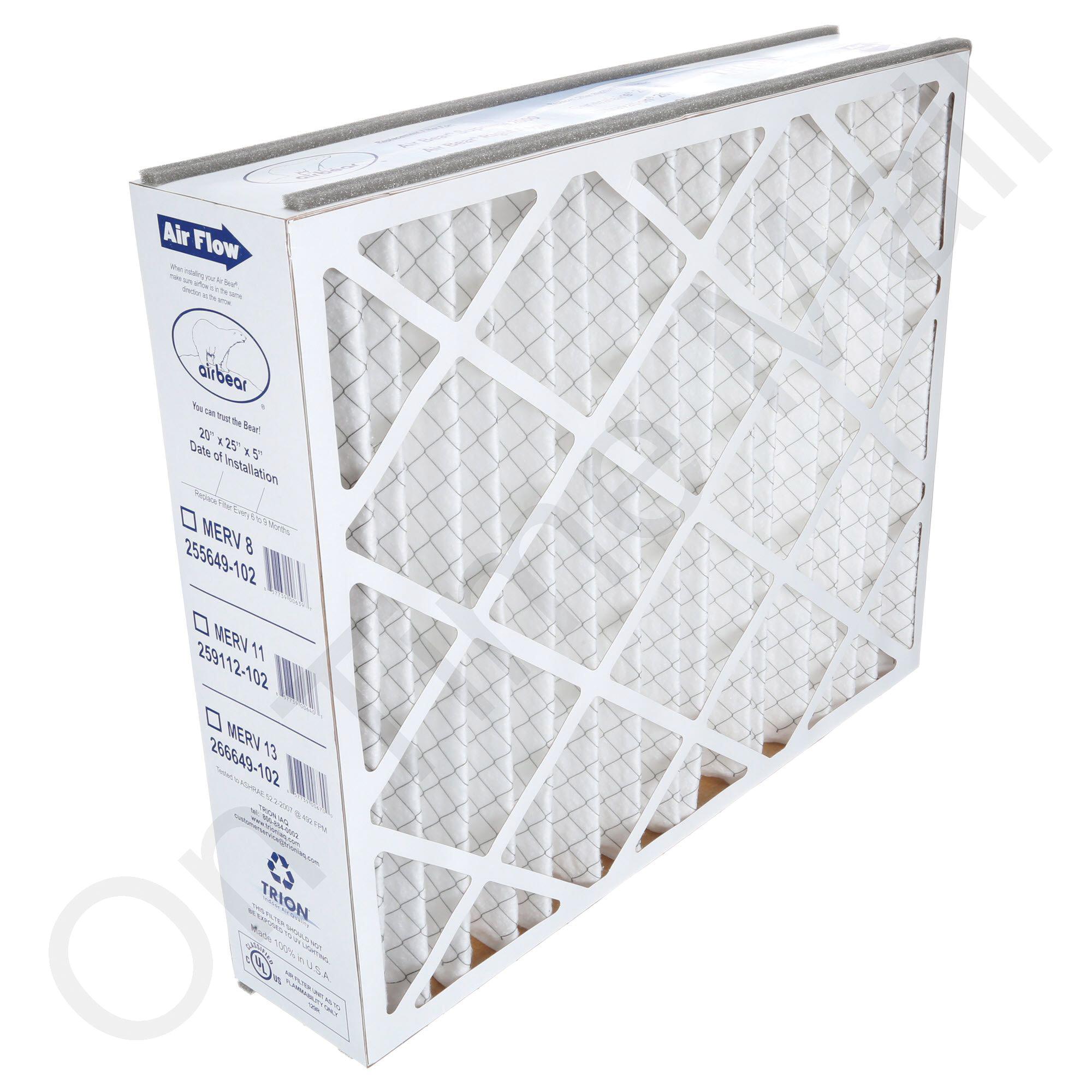

Trion® Replacement Media Air Filter, Supreme Series, Synthetic Fiber Media, 20 in Width, 25 in Height, 5 in Depth, 8 MERV, 300 fpm Rated Velocity, 0.07 at 300 fpm Initial Resistance, 2000 cfm Air Flow Capacity, 19-3/4 x 24-1/4 x 4.94 in Actual
- Non-woven, 5 in THK, pleated air bear media filter traps particles as small as 1 um
- Mechanical MERV 8 3 eight filter maintains efficiency under all operating conditions
- 100% electro-statically charged synthetic fibers, along with radial pleating, to provide minimum resistance and higher dirt holding capacity to maximize filter life
- Finger supported vertical pleats remain evenly spaced while maximizing dirt holding capacity at the lowest pressure drop
- Suitable for use with all types of forced air configurations
- Factory installed, double gasket, top and bottom, eliminates filter bypass
- Galvanized rust-resistant wire mesh, integral width filter media, supports media and retains pleat shape even when dirty
- Moisture-resistant frame retains strength and shape even in high-humidity
