| Amperage Rating | : | 9.5 A |
| Bearing Type | : | Self-Aligning |
| Enclosure Type | : | Open |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Base, Resilient Ring |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| Shaft Size | : | 1/2 in Dia x 4 in L |
| Speed Rating | : | 1075 rpm |
| Suitable For Use With | : | Exhausts, Air Circulators, Unit Heaters, Unit Coolers |
| Temperature Rating | : | 104 deg F |
| Voltage Rating | : | 115 V |

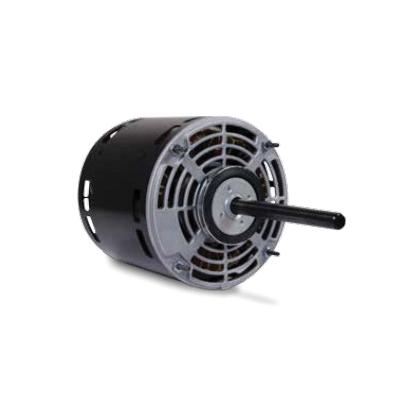

TOTALINE® direct drive blower motors are three-speed standard efficiency, reversible Rotation with extended thru bolts and resilient rings for base mounting. These Models have open air enclosures and feature shell mounting holes for universal replacement of non-ventilated motors for exhaust, air circulators, unit heaters, unit coolers and other air over applications.
TOTALINE® Direct Drive Blower Motor, 3/4 hp HP Rating, 115 V, 9.5 A, 60 Hz, 1 ph, 1075 rpm Speed Rating, 3 Speed, Open, 48 Frame, 1/2 in Dia x 4 in L Shaft, Self-Aligning Bearing, Base, Resilient Ring Mount, 104 deg F, Insulation Class: Class B, For Use With: Exhausts, Air Circulators, Unit Heaters, Unit Coolers
- Extended thru bolt
- Reversible rotation
- Automatic reset thermal overload protector
- 2-1/4 in resilient rings
