| Air Flow Capacity | : | 160 cfm |
| Amperage Rating | : | 0.5 A |
| Frequency Rating | : | 60 Hz |
| Power Rating | : | 50 W |
| Voltage Rating | : | 120 V |

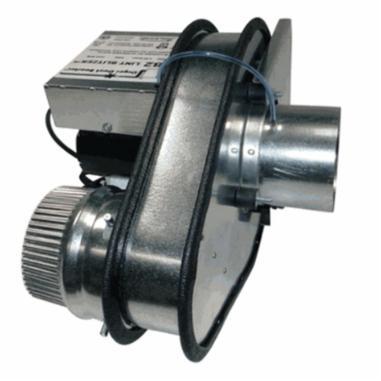

Tjernlund Dryer Booster Duct Fan, 0.5 A, 120 V, 60 Hz, 50 W, 160 cfm Air Flow Capacity
- Impeller - reverse inclined, particulate handling
- Boosts exhaust velocity in ducts up to 150 ft equivalent
- Save energy, reduce drying times by up to 50%
- Status panel lets you know the booster fan is working correctly
- Flashing red and green LEDs - control calibrates to exhaust duct pressure drop when 1st plugged in
- Slow flashing green LED - idle state, no dryer operation sensed
- Fast flashing green LED - sensor is detecting dryer turning on or off
- Steady green LED - dryer booster fan on
- Flashing red LED - blockage sensed or dryer booster fan not operating
- Steady red LED - high temperature detected, dryer booster fan is shut-off
