| Amperage Rating | : | 1.51 A |
| BTU Rating | : | 600000 Btu/hr |
| CFM Rating | : | 286 cfm at 0 in |
| Dimensions | : | 11 in W x 8-5/8 in D x 9-1/4 in H |
| Frequency Rating | : | 60 Hz |
| Material | : | Aluminized Steel Housing and Blower Wheel |
| Power Rating | : | 224 W |
| Series | : | HS Series |
| Speed Rating | : | 3300 rpm |
| Temperature Rating | : | 550 deg F |
| Vent Size | : | 6 in |
| Voltage Rating | : | 115 V |

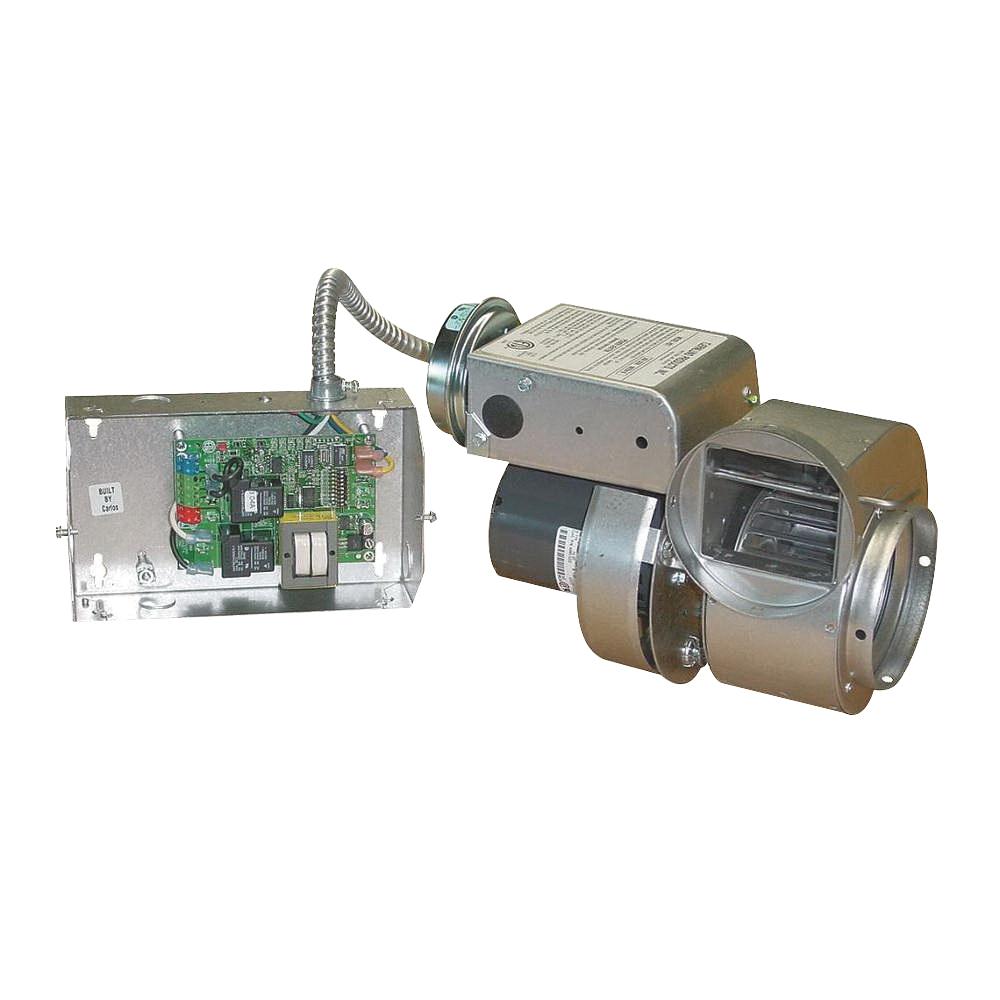

Tjernlund Power Venter, Series: HS Series, 1.51 A, 115 V, 60 Hz Frequency, 224 W Power, 3300 rev/min Speed, 286 cu-ft/min at 0 in CFM Rating, 6 in Vent, 600000 Btu/hr BTU Rating, Aluminized Steel Housing and Blower Wheel, 550 deg F, 11 in W x 9-1/4 in H x 8-5/8 in D Dimensions
- UC1 universal control and a diaphragm fan proving switch safety interlock which will shut down the heating equipment if a venting malfunction occurs
- Built-in adjustable damper also allows regulation for maximum combustion efficiency
- Interlocks with any 24/120 VAC burner circuit
- UC1 universal control features adjustable pre/post-purge, LED status indicators, and fault code memory
- Thermal protection, sintered iron sleeve type bearing
- UC1 interlock control, fan proving switch, adjustable damper, vibration isolators included
