| Dimensions | : | 38 in L x 13-3/4 in W x 17-1/2 in H |
| Frequency Rating | : | 50/60 Hz |
| Phase | : | 1 ph |
| Power Rating | : | 1 hp |
| Pressure Rating | : | 1.5 in-WC |
| Speed Rating | : | 400 to 1800 rpm |
| Temperature Rating | : | 150 deg F |
| Voltage Rating | : | 240 VAC |

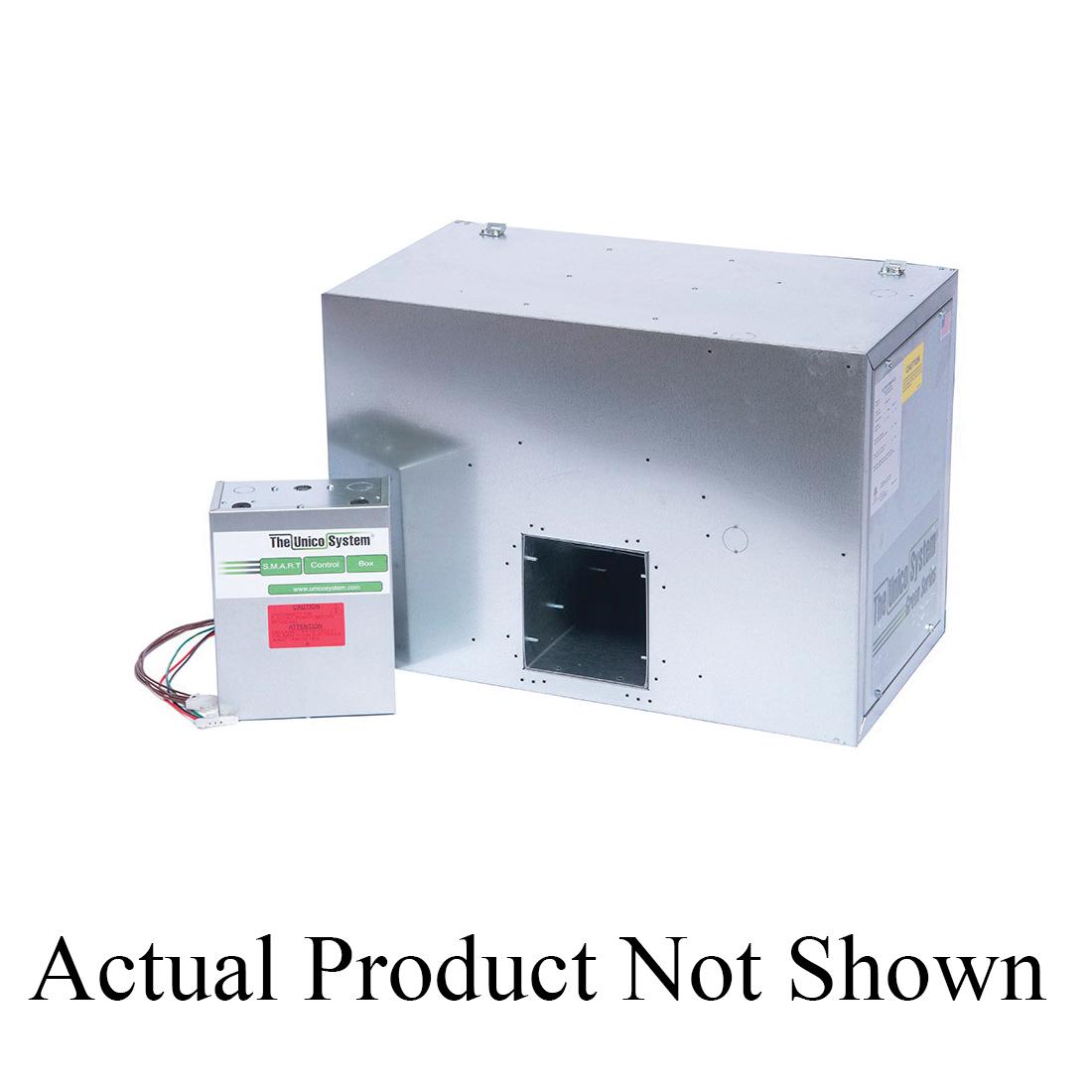

The Unico System® Blower Module With Smart Control Board and EC Motor, 240 VAC, 1 hp, 50/60 Hz, 1 ph Phase, 1.5 in-WC, 400 to 1800 rpm, 150 deg F, 38 in L x 13-3/4 in W x 17-1/2 in H
- Features of the new green Series such as the SCB (SMART control Board) And the new EC (Electronically Commutated) Motor give us a small-duct high-velocity air delivery system superior to any other in the industry
- Ability to manage both airflow and motor speed according to the needs
- Enhanced soft start and soft stop
- Option to set air flow via Internet
- Simultaneous control of air flow and motor speed according to zoning needs
- Left hand connection
