| Additional Information | : | 500 psig Pressure, 2.65 sq-ft Face Area, 3/8 in Tube Diameter |
| BTU Rating | : | 36000 to 42000 Btu/hr |
| Color | : | White |
| Configuration | : | Horizontal, Vertical Upflow |
| Connection Size | : | 3/8 x 7/8 in |
| Dimensions | : | 38 in W x 14 in D x 17-1/2 in H |
| Finish | : | Galvanized |
| Fins per Inch | : | 15.5 FPI |
| Flow Rate | : | 300 to 1200 cfm |
| Material | : | Steel |
| Model | : | 3642 |
| Number of Rows | : | 4 |
| Power Rating | : | 12.3 kW |
| Refrigerant Type | : | R-410A |
| Series | : | M Series |
| Tonnage | : | 3 to 3.5 ton |

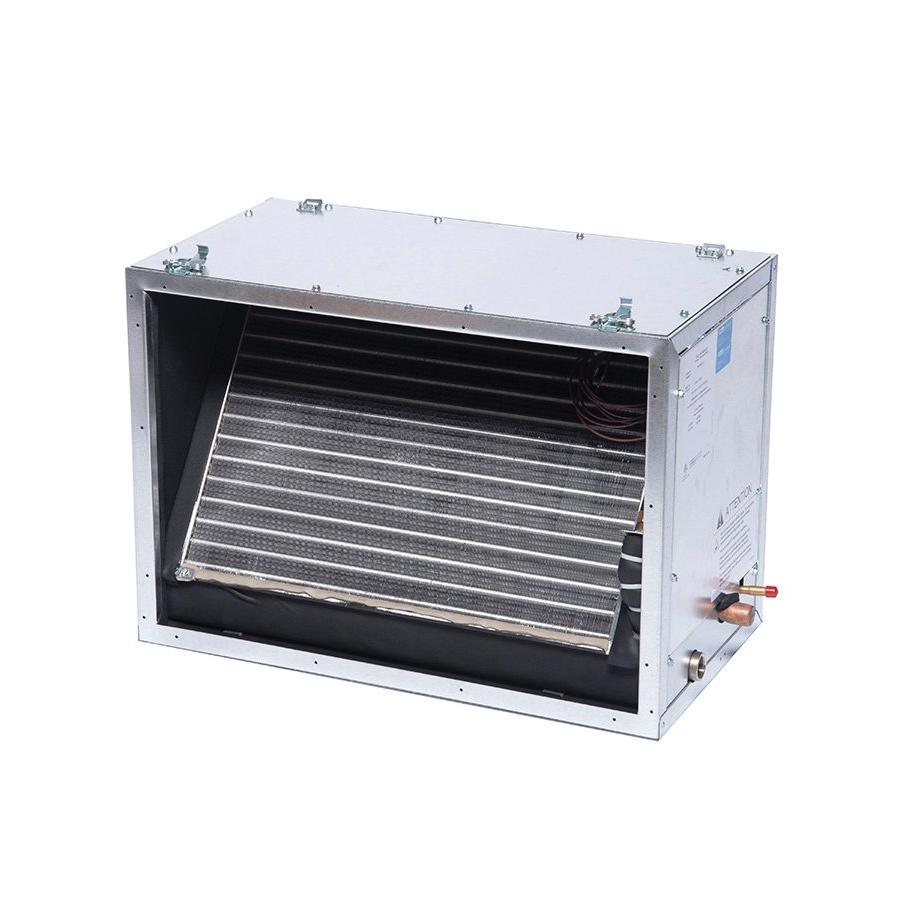

This is the 3 to 3.5 ton left hand 6 row refrigerant coil module with R-410A TXV and stainless steel primary drain pan.
The Unico System® Refrigerant Coil Module, Series: M Series, Model: 3642, 300 to 1200 cfm Flow Rate, 36000 to 42000 Btu/hr, 3 to 3.5 ton Tonnage, 12.3 kW, R-410A Refrigerant, Horizontal, Vertical Upflow, 3/8 x 7/8 in Connection, 15.5 FPI Fins per Inch, 4 Rows, Steel, White, Galvanized, 38 in W x 14 in D x 17-1/2 in H, Additional Information: 500 psig Pressure, 2.65 sq-ft Face Area, 3/8 in Tube Diameter
- Modular construction
- Multiple configurations
- Use as cooling only or heat pump
- Enhanced aluminum fins
- Copper tubes
