| Additional Information | : | 12 sq-in Total Return Opening, 1.78 m/s Maximum Velocity |
| BTU Rating | : | 24000 to 30000 Btu/hr |
| Dimensions | : | 25 in W x 17-1/2 in D x 18-1/4 in H |
| Filter Size | : | 18 x 25 x 1 in |
| Finish | : | Galvanized |
| Flow Rate | : | 750 cfm |
| Material | : | Steel |
| Power Rating | : | 7 kW |
| Series | : | M Series |
| Temperature Rating | : | 135 deg F |
| Tonnage | : | 2.5 ton |

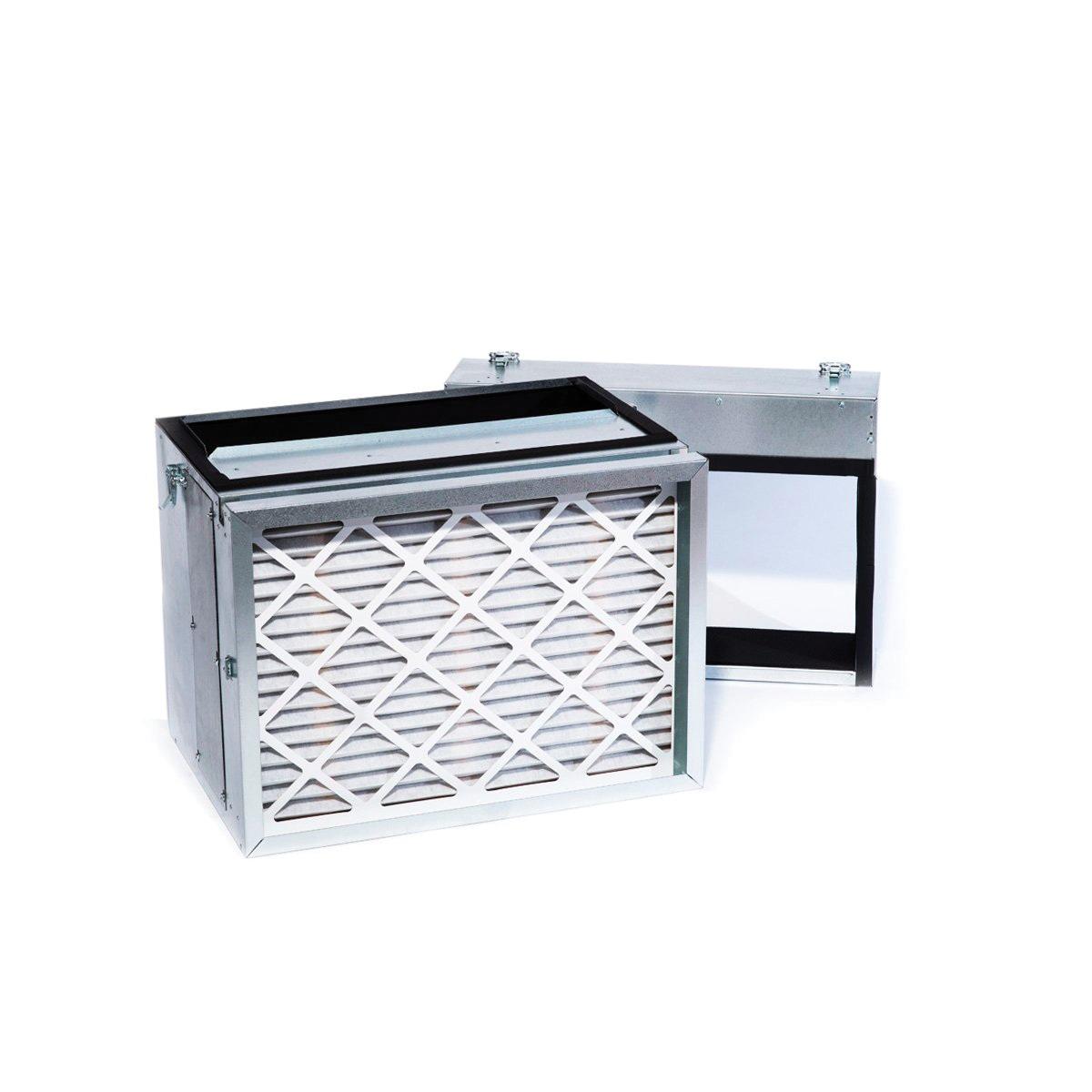

This is the 2 to 2.5 ton vertical plenum module with secondary drain pan. It is a base with a filter rack and filter that can house a hot water coil as an option. This is used for the M2430 model.
The Unico System® Vertical Plenum Module, Series: M Series, 750 cfm Flow Rate, 24000 to 30000 Btu/hr, 2.5 ton Tonnage, 7 kW, 18 x 25 x 1 in Filter, Steel, Galvanized, 135 deg F, 25 in W x 17-1/2 in D x 18-1/4 in H, Additional Information: 12 sq-in Total Return Opening, 1.78 m/s Maximum Velocity
- The return air module is designed for easy installation of multiple return air duct systems
- Module comes without return air opening so that the installing contractor can cut whatever number of return ducts
- The top and three sides of the module can be used for return air connections
- A centrally located disposable air filter is accessible from either side of the cabinet
- The return air module is ideal for providing fresh air from outside, effectively turning it into a mixing box
- Return air ducts can be of any material, provided it is acoustic and sized according to the ACCA Manual D guidelines
- The cabinet is fully insulated with a closed cell insulation (there is no exposed fiberglass in the cabinet)
- Uses 24 ga galvanized steel with removable access panels
