| Additional Information | : | 1/2 hp 373 W 1800 rpm ECM Motor, 56 dBA Sound Level, 9-1/2 in Diameter x 7-3/4 in Width Blower Wheel, 200 to 700 cfm Airflow Range |
| Amperage Rating | : | 3.2 A |
| BTU Rating | : | 24000 to 30000 Btu/hr |
| Color | : | White |
| Configuration | : | Horizontal, Vertical Upflow |
| Connection Type | : | USB |
| Dimensions | : | 25 in W x 14 in D x 17-1/2 in H |
| Finish | : | Galvanized |
| Flow Rate | : | 625 cfm |
| Frequency Rating | : | 60 Hz |
| Material | : | Steel |
| Model | : | M2430BL |
| Phase | : | 1 ph |
| Power Rating | : | 7 kW |
| Series | : | M Series |
| Temperature Rating | : | 150 deg F |
| Tonnage | : | 2 to 2.5 ton |
| Voltage Rating | : | 208 to 230 VAC |

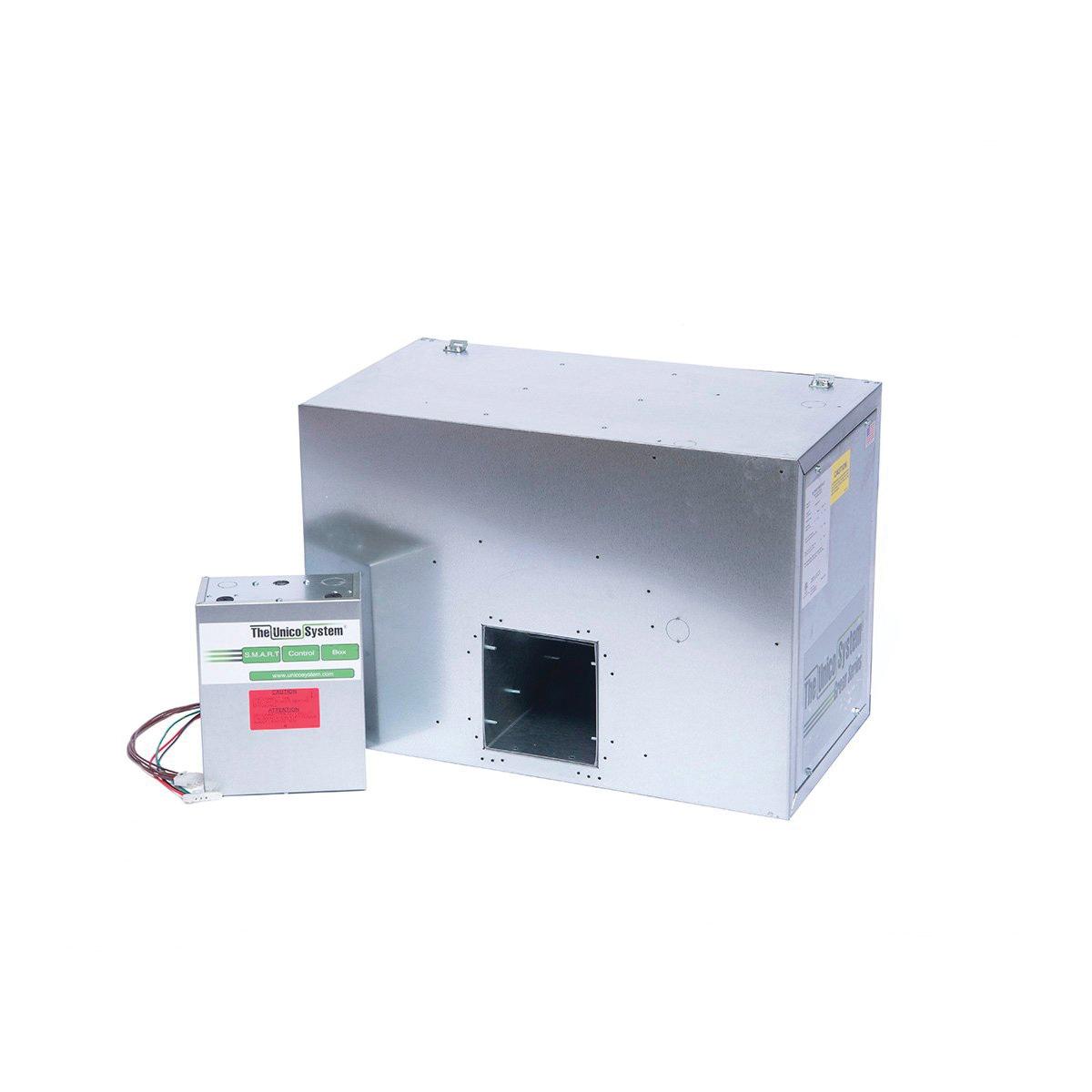

The Unico System® modular blowers are designed for use with The Unico System® small-duct high-velocity (SDHV) system. The blowers exceed the US department of energy requirements for SDHV systems requiring a minimum external static pressure of 1.2 in of water (0.3 kPa) at the rated airflow when installed with the compatible The Unico System® cooling module. All cooling modules are available in heat pump, chilled water and refrigerant air conditioning configurations.
The Unico System® Modular Variable Speed Blower Module, Series: M Series, Model: M2430BL, 625 cfm Flow Rate, 24000 to 30000 Btu/hr, 2 to 2.5 ton Tonnage, 208 to 230 VAC, 3.2 A, 7 kW, 1 ph Phase, 60 Hz, Horizontal, Vertical Upflow, USB Connection, Steel, White, Galvanized, 150 deg F, 25 in W x 14 in D x 17-1/2 in H, Additional Information: 1/2 hp 373 W 1800 rpm ECM Motor, 56 dBA Sound Level, 9-1/2 in Diameter x 7-3/4 in Width Blower Wheel, 200 to 700 cfm Airflow Range
- Modular construction
- Multiple configurations
- High system efficiency
- Easy service motor/blower
- Constant airflow
- Programmable using windows PC
