| Amperage Rating | : | 14.5 A |
| CFM Rating | : | 2954 cfm |
| Configuration | : | Vertical |
| Connection Type | : | Sweat |
| Cooling Capacity | : | 36000 Btu/hr |
| Dimensions | : | 31-13/16 in H x 25-3/4 in W x 25-3/4 in D |
| Drive Type | : | Direct |
| EER Rating | : | 11 |
| Face Area | : | 13.13 sq-ft |
| Finish | : | Galvanized/Powder-Coated |
| Fins per Inch | : | 25 FPI |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 20 A |
| HP Rating | : | 1/4 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Motor Type | : | PSC |
| Nominal Capacity | : | 3 ton |
| Number of Stages | : | 1 |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1100 rpm |
| SEER Rating | : | 13 |
| Series | : | N4A3 Series |
| Sound Level | : | 75 dBA |
| Suction Line Size | : | 7/8 in |
| Voltage Rating | : | 208/230 V |

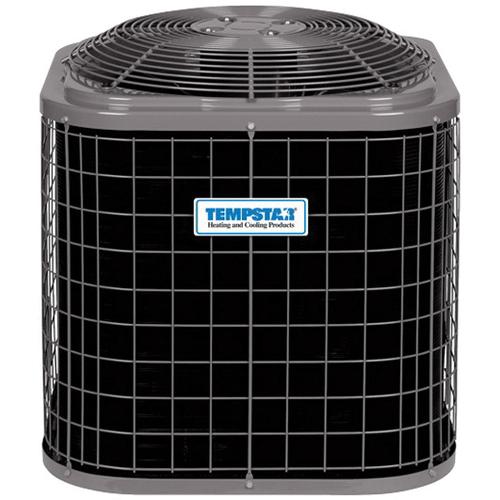

TEMPSTAR® Performance Split-System Air Conditioner, N4A3 Series, 3 ton Nominal Capacity, 36000 Btu/hr Cooling Capacity, 208/230 V, 14.5 A, 1/4 hp, 1100 rpm Rotational Speed, 60 Hz, 3 ph Phase, Vertical, 2954 cfm, 11 EER Rating, 13 SEER, 1 Stages, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 75 dBA Sound Level, Direct Drive, Sweat Connection, 20 A Fuse Rating, 13.13 sq-ft Face Area, PSC Motor, 25 FPI Fins per Inch, Steel, Finish: Galvanized/Powder-Coated, 31-13/16 in H x 25-3/4 in W x 25-3/4 in D
- Quiet performance (as low as 74 dB)
- Efficient, one-stage scroll compressor operation
- Durably built-to withstand bad weather and debris
- Designed for corrosion resistance and lasting performance
- One-speed fan motor
- System protecting filter drier
- Durable, protective inlet grille panels allow easy coil cleaning
- Baked-on powder-coat finish over galvanized steel
- Compatible with most cooling thermostats
- Non-ozone depleting R-410A refrigerant
- Easy-to install and service
- Copper tube/aluminum fin coils
- External high and low refrigerant service ports
- Only two-screws to access control panel
- 3/8 in spacing coil guard grille
- Keep the heat out during the warm months with our budget friendly central air conditioner with a one-stage compressor
- Enjoy cooling comfort and reliability in this affordable model
- Sales code
