| Amperage Rating | : | 4.3 A |
| BTU Rating | : | 36000 Btu/hr |
| CFM Rating | : | 1200 cfm |
| Color | : | Gray |
| Configuration | : | Multi-Position |
| Connection Type | : | 3/4 in Sweat Suction, 3/8 in Sweat Liquid |
| Dimensions | : | 21-1/8 in W x 22-1/16 in D x 53-7/16 in H |
| Finish | : | Pre-Painted Galvanized Cabinet |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Material | : | Sheet Metal Cabinet |
| Nominal Capacity | : | 3 ton |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Series | : | FCM4X |
| Voltage Rating | : | 208/230 VAC |

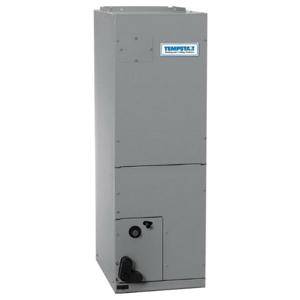

TEMPSTAR® Fan Coil, Series: FCM4X, 3 ton Nominal, 36000 Btu/hr BTU, 208/230 VAC, 4.3 A, 1/2 hp, 60 Hz, 1 -Phase, 1200 cu-ft/min, Configuration: Multi-Position, 3/4 in Sweat Suction, 3/8 in Sweat Liquid Connection, R-410A Refrigerant, Sheet Metal Cabinet, Pre-Painted Galvanized Cabinet, Gray, 21-1/8 in W x 53-7/16 in H x 22-1/16 in D
- Communicating, self-configuring when used with observer communicating wall control
- Smart diagnostic for easier troubleshooting
- Bi-flow hard-shut-off R-410A TXV metering device
- HUD approved for manufactured housing
- Primary and secondary brass drain connections
- Energy efficient variable speed ECM motor
- Ultra - low power consumption during fan only operation
- High duct static capability
- Pre-painted galvanized sheet metal cabinet insulation with vapor barrier
- Cabinet construction designed to prevent cabinet sweating
- Meets requirements of a 2% cabinet leakage rate when tested at 1 in WC of static pressure
- Modular cabinet on 5 ton model
- Multiple electrical entry for application flexibility
- Low voltage terminal strip
- Easy plug connection provided for quick installation of accessory heater packages
- Factory supplied washable filter easily removed - no tools required
- Aluminum tube and fin evaporator co
