| Connection Type | : | ODS |
| Dimensions | : | 4 in Dia x 12-7/8 in H |
| Model | : | 502 |
| Pre Charge Oil | : | 16 oz |
| Pressure Rating | : | 650 psi |
| Refrigerant Type | : | R-12, R-134A, R-22, R-404A, R-410A, R-502, R-507 |
| Series | : | 500 Series |
The Temprite 500 & 600 series conventional oil separators are impingement screen separators. In these units, the compressed mass flow enters a larger separator chamber, lowering the velocity of the mass. The atomized oil droplets collect on the impingement screen surface, and as the oil drops become larger they fall to the bottom of the separator oil reservoir.

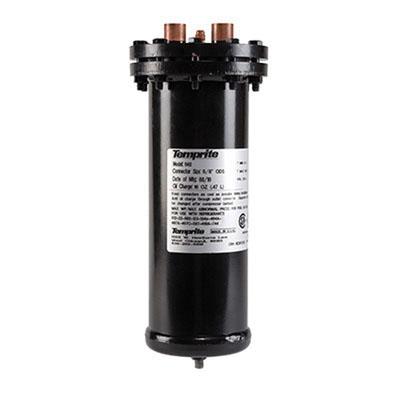

Temprite® Conventional Oil Separator, 500 Series, Model: 502, ODS Connection, 650 psi, 16 oz Pre Charge Oil, R-12, R-134A, R-22, R-404A, R-410A, R-502, R-507 Refrigerant, 4 in Dia x 12-7/8 in H
- Traditional impingement-type oil separator, typically for low temperature systems
- Accessible to allow field repair or replacement of the impingement screen
- 450 lbf/sq-in maximum working pressure
- Capacity ratings listed below are nominal capacity in tons at listed evaporator temperature
