| Amperage Rating | : | 16.3 A |
| BTU Rating | : | 12000 Btu/hr |
| Connection Size | : | 3/8 in, 7/8 in |
| Dimensions | : | 25 in L x 33.48 in W x 19.5 in H |
| Flow Rate | : | 1698 scfm |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 3 hp |
| Model | : | AVA2512ZXNXM |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-404A, R-507 |
| Series | : | AV Series |
| Temperature Rating | : | -10 to 45 deg F |
| Voltage Rating | : | 200-220/208-230 V |

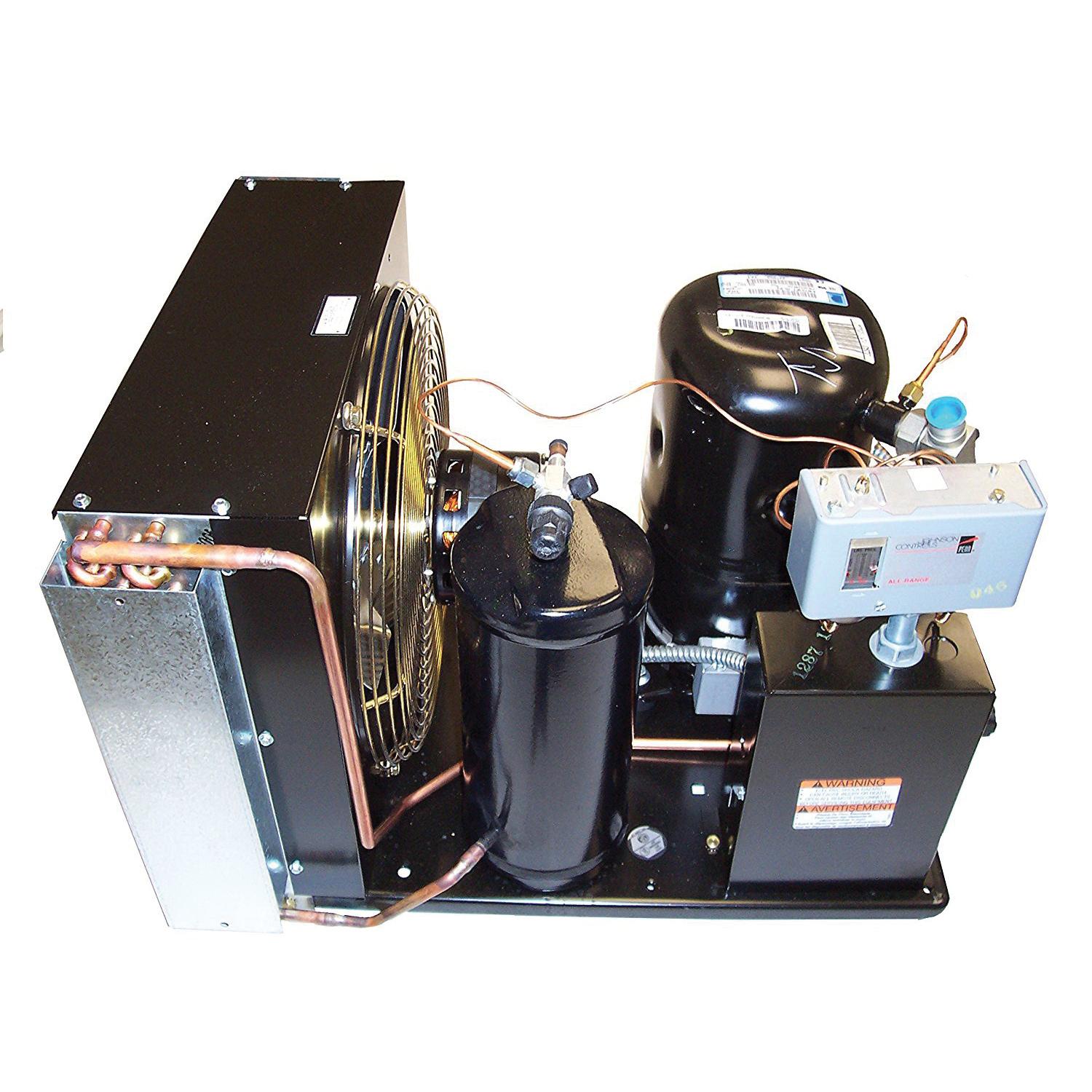

Tecumseh® Condensing Unit, AV Series, Model: AVA2512ZXNXM, 200-220/208-230 V, 16.3 A, 12000 Btu/hr, 3 hp, 1 ph Phase, 50/60 Hz, 1698 scfm Flow Rate, R-404A, R-507 Refrigerant, 3/8 in, 7/8 in Connection, -10 to 45 deg F, 25 in L x 33.48 in W x 19.5 in H
- AV compressor family
- High-motor starting torque
- Advanced commercial design
- 54 oz oil charge
- 16.3 A rated load, 106.6 A locked rotor
