| Amperage Rating | : | 8.7 A |
| BTU Rating | : | 4800 Btu/hr |
| Connection Size | : | 3/8 in Solder Liquid, 5/8 in Solder Suction |
| Dimensions | : | 24 in L x 17.8 in W x 15.4 in H |
| Flow Rate | : | 1615 cfm |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1 hp |
| Model | : | AWA2448ZXDXC |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-404A, R-507 |
| Series | : | AW Series |
| Temperature Rating | : | -10 to 45 deg F |
| Voltage Rating | : | 200/208 to 230 V |

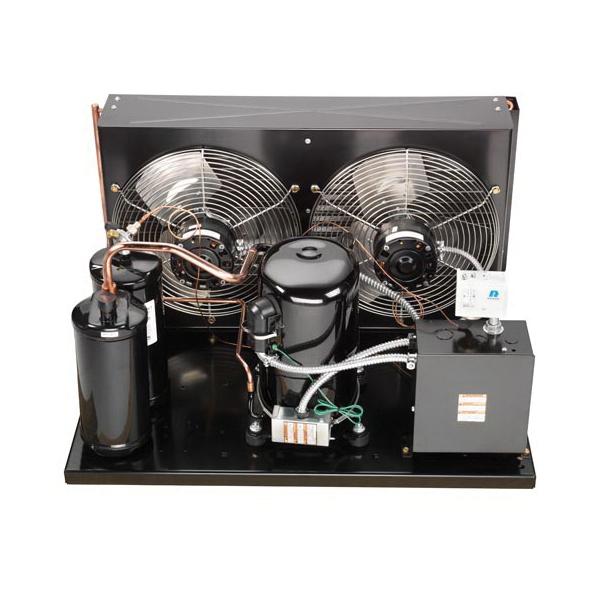

Tecumseh® Condensing Unit, Series: AW, Model: AWA2448ZXDXC, 200/208 to 230 V, 8.7 A, 4800 Btu/hr, 1 hp, 1 ph Phase, 50/60 Hz, 1615 cfm Flow Rate, R-404A, R-507 Refrigerant, 3/8 in Solder Liquid, 5/8 in Solder Suction Connection, -10 to 45 deg F, 24 in L x 17.8 in W x 15.4 in H
