| Connection Type | : | Sweat |
| Dimensions | : | 5-15/16 in H x 4-3/16 in W |
| Flow Coefficient (Cv) | : | 14 Cv |
| Material | : | Brass |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Series | : | 4900 Series |
| Suitable Media | : | Glycol Solution, Water |
| Temperature Rating | : | 25 to 240 deg F |
| Velocity Rating | : | 5 fps Maximum |

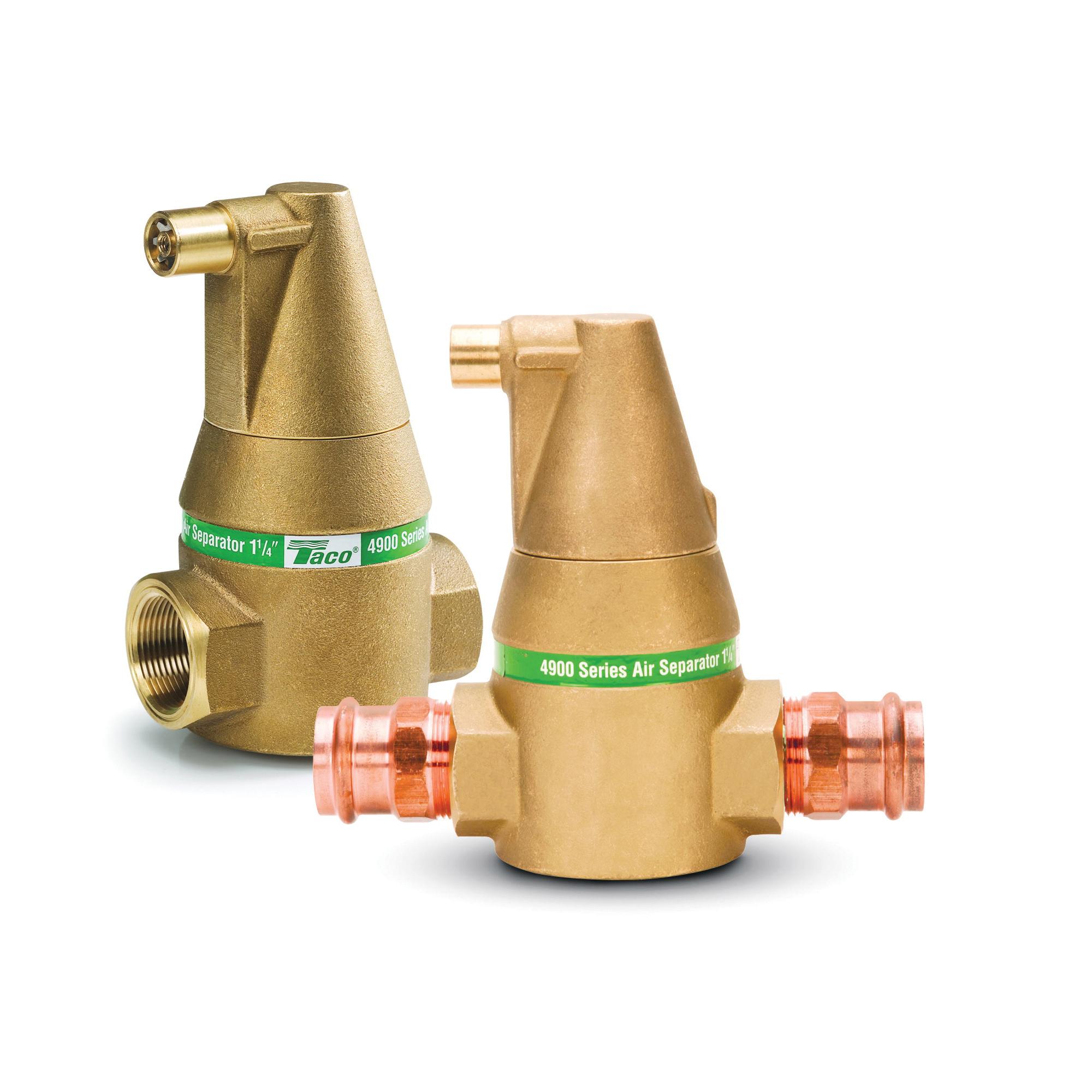

Taco Comfort Solutions® Air Separator, 4900 Series, 3/4 in Nominal, Sweat Connection, 150 psi, 25 to 240 deg F, Glycol Solution, Water Suitable Media, 14 Cv Flow Coefficient (Cv), 5 fps Maximum Velocity Rating, Brass, 5-15/16 in H x 4-3/16 in W
- Patented pall ring design
- Eliminates air induced system noise
- Minimal pressure loss
- Vent can be closed
- Large surface contact area
- Protective vent plate
- Rugged dependability
- Maximum air removal
- Convenient expansion tank connection tapping
- No minimum run of pipe requirement
- Bi-directional flow
