| Body Material | : | Brass |
| Connection Type | : | NPT x Union Nut |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 200 psi Maximum, 0 to 7.5 psi Adjustment |
| Seal Material | : | EPDM, Non-Asbestos Phenolic |
| Temperature Rating | : | 200 deg F |
The Taco differential bypass valve provides an accurate and dependable means of controlling excess flow in zone valve systems that can be created when there is a reduction in the demand for heat. This reduced heat demand typically occurs as zone thermostats are satisfied and their corresponding zone valves close, causing the system pump to attempt to force more water through the remaining zones. Differential bypass valves should also be used to prevent dead heading of the circulator in systems where parallel piped heat emitters are controlled by thermostatic radiator valves As zone valves close, instead of forcing more water through the remaining open zones, the differential bypass valve automatically reroutes the excess flow through the bypass valve. This prevents velocity noise while maintaining the designed heat transfer of each zone, enhancing overall system performance.

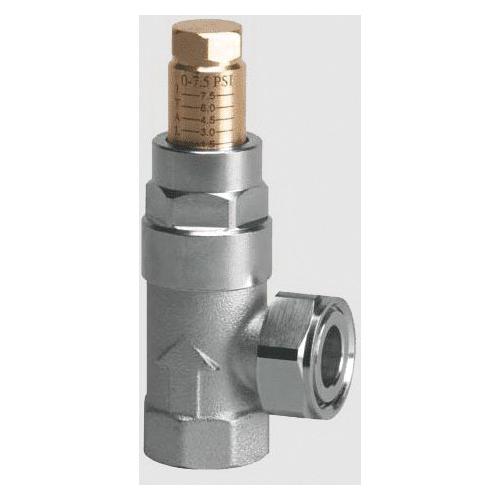

Taco Comfort Solutions® Pressure Differential Bypass Valve, 3/4 in Nominal, NPT x Union Nut Connection, 200 psi Maximum, 0 to 7.5 psi Adjustment, Brass Body, EPDM, Non-Asbestos Phenolic Seal, 200 deg F
- Adjustable spring loaded seat that opens and closes to allow flow through the valve
- Opening and closing is based on the system pressure applied to the valve seat and the set point of the valve
- Brass indicator and nut
- Stainless steel and engineered plastics internals
