Taco Comfort Solutions® TAC0015E3

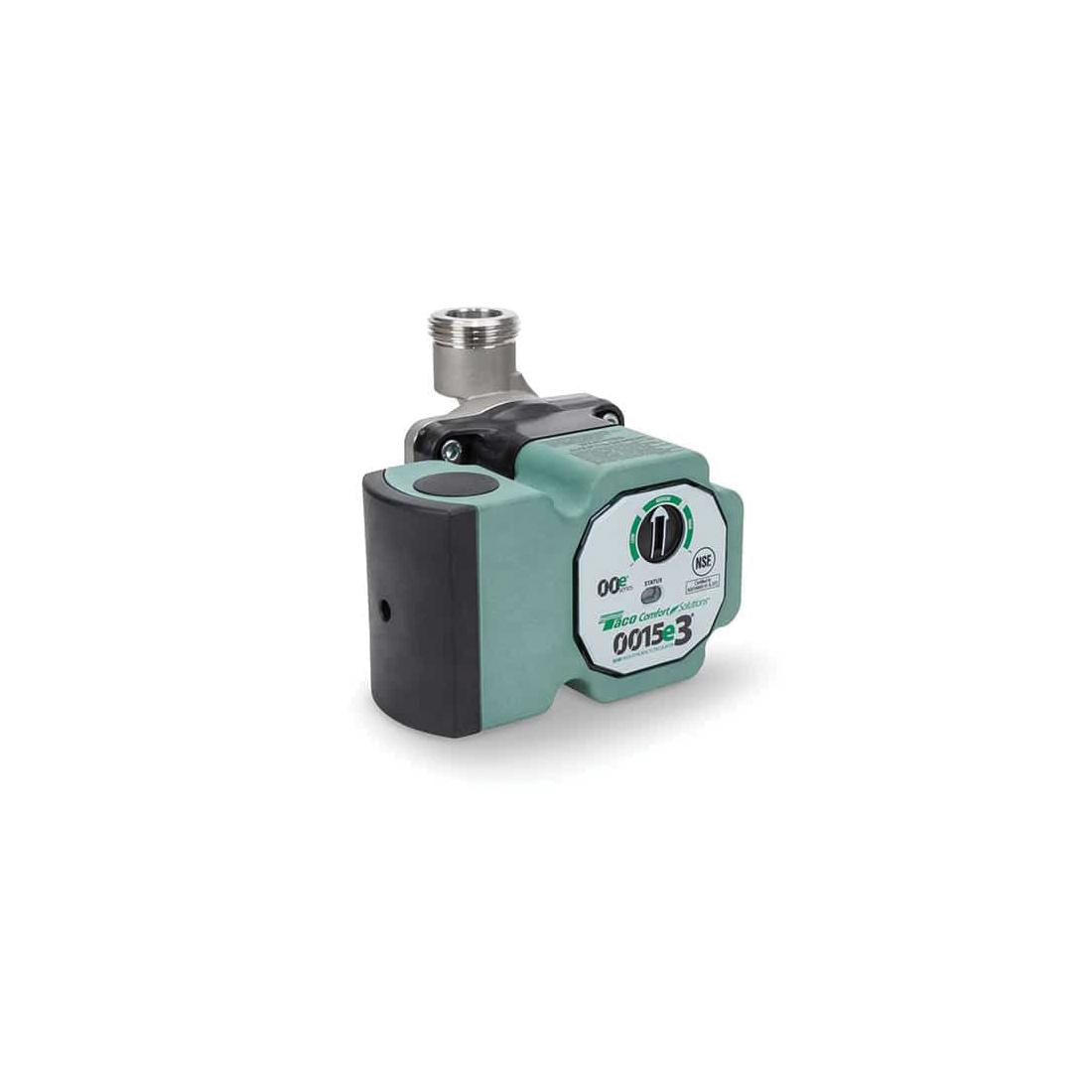

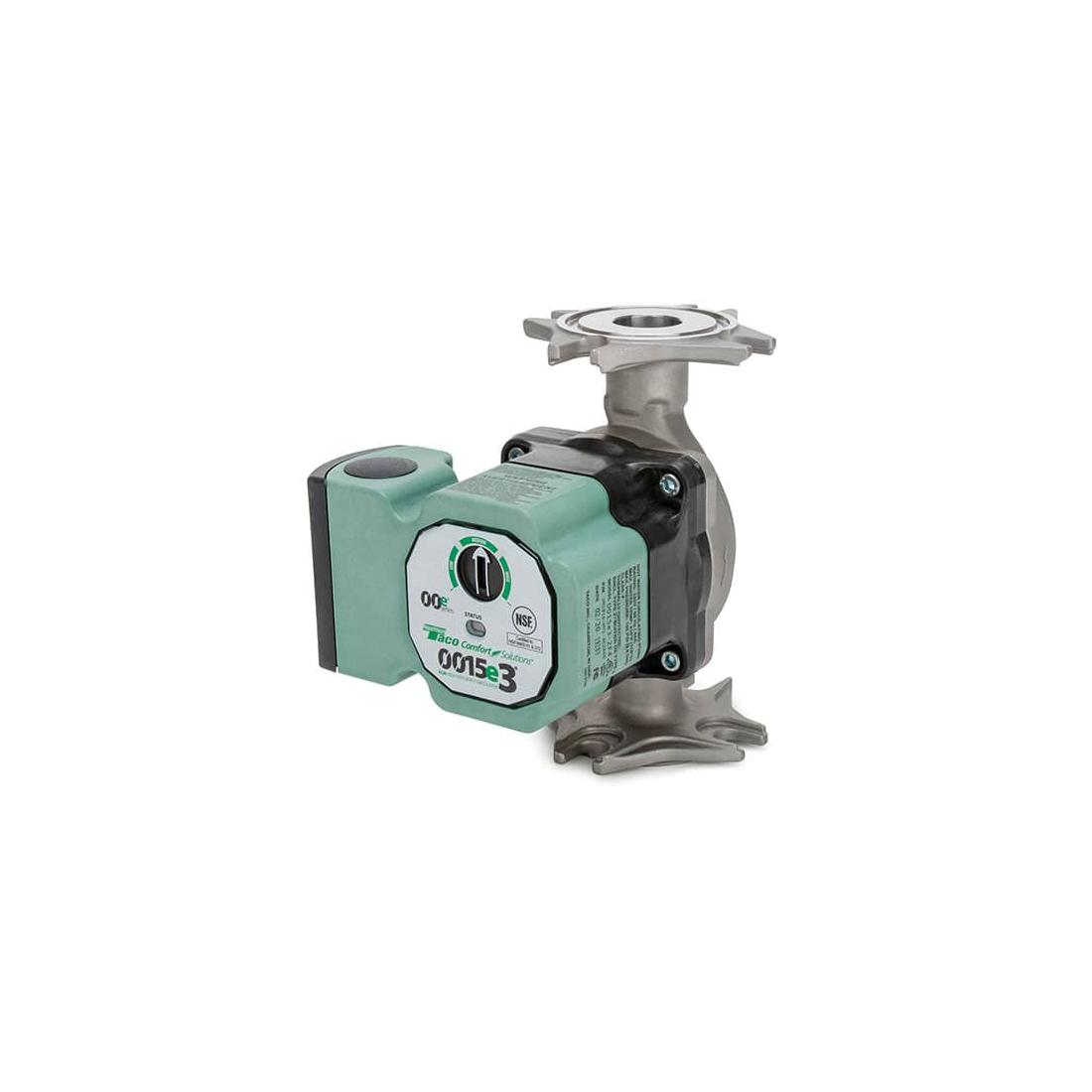

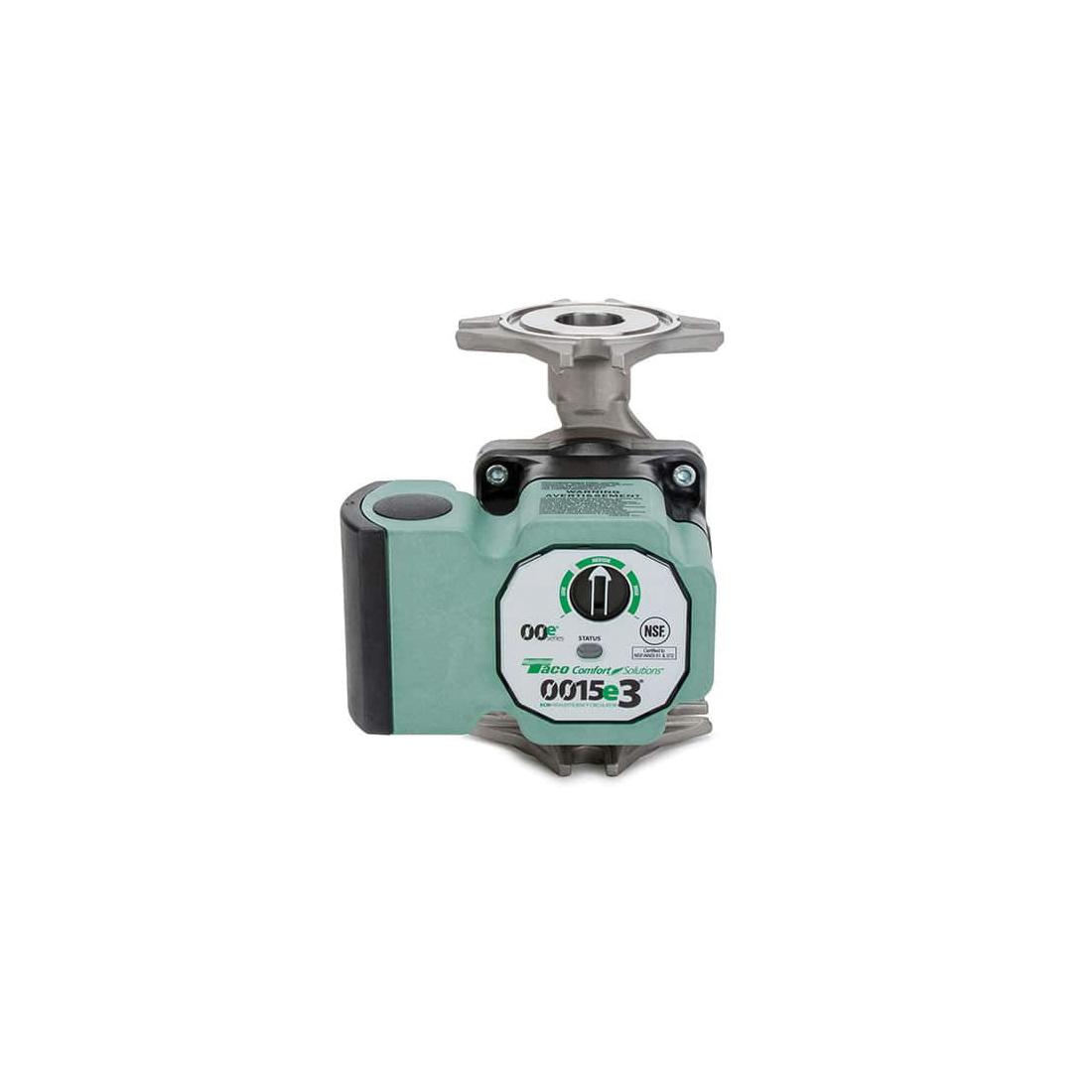

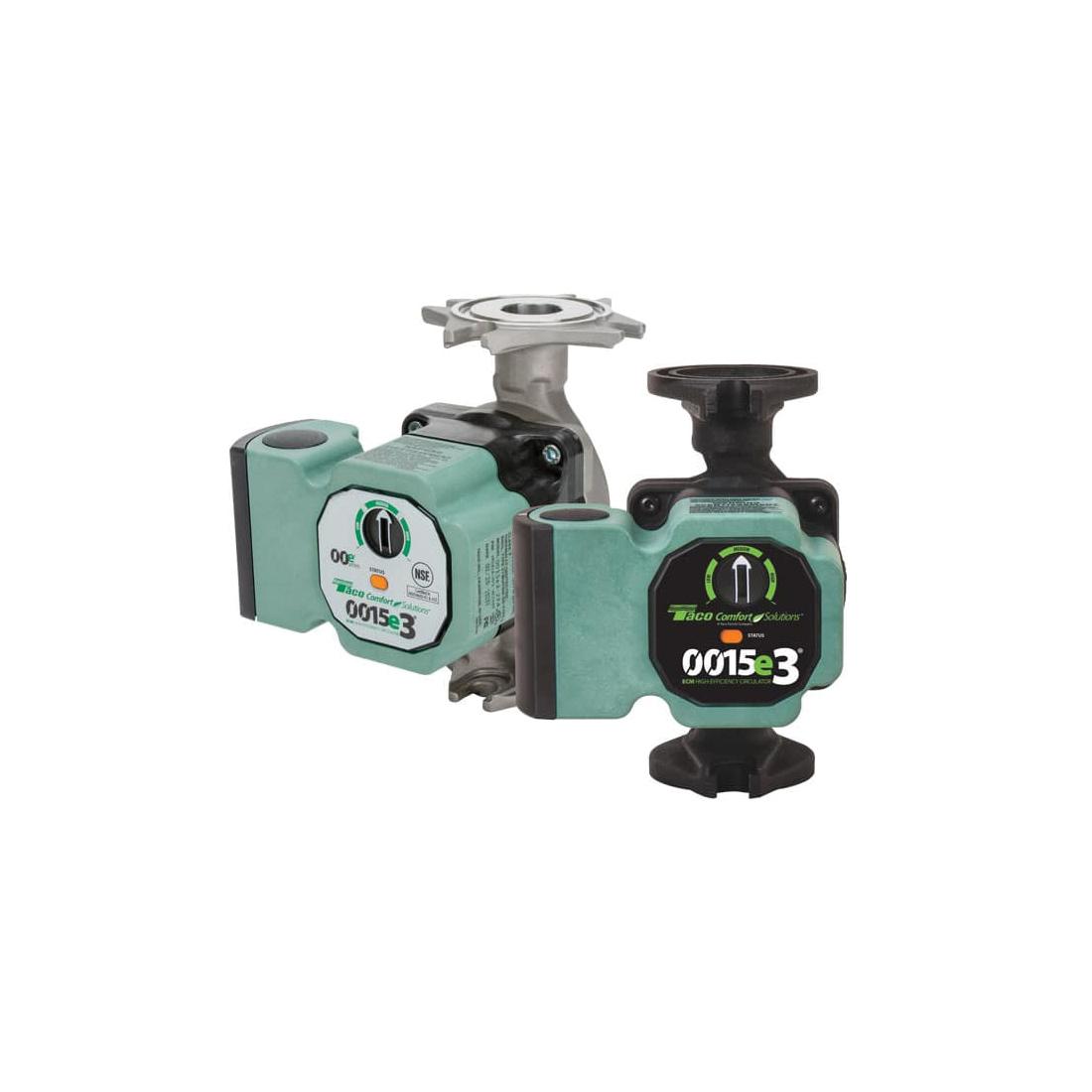

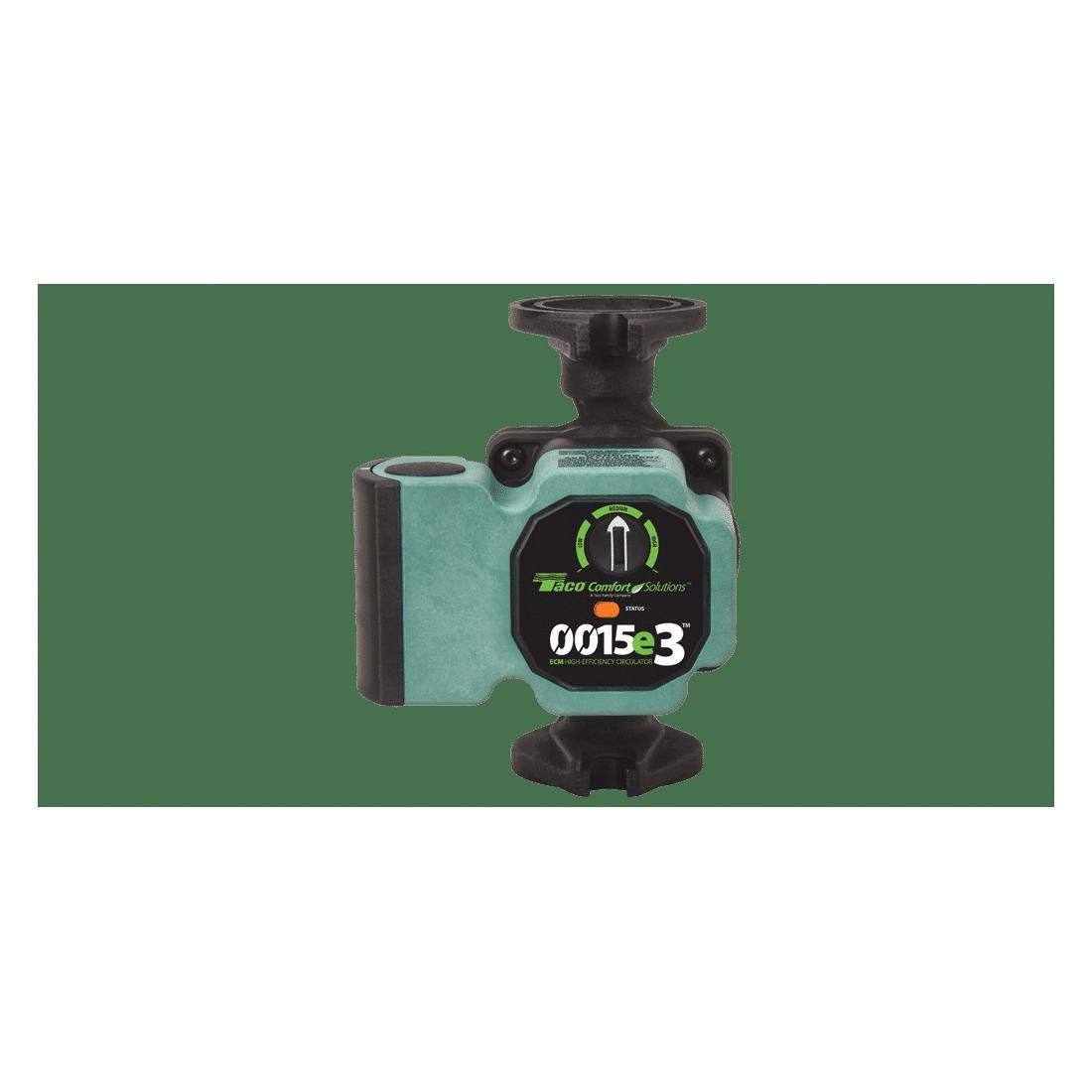

Taco Comfort Solutions® 0015e3-2F4 0015E3-2F4 ECM Circulator Pump With Integral Flow Check, 16 gpm, 44 W, 120 V, 0.54 A

Manufacturer: TACO INC
Part #: TAC0015E3
Customer Part #:
Login for Availability
Login for Price
Additional Information      :      Composite Impeller Material
Amperage Rating      :      0.54 A
Dimensions      :      6 in L x 5 in W x 6-3/8 in H
Flow Rate      :      16 gpm
Frequency Rating      :      60 Hz
HP Rating      :      1/20 hp
Material      :      Iron
Maximum Head      :      18 ft
Maximum Pressure      :      125 psi
Model      :      0015e3-2F4
Motor Speed Rating      :      4830 rpm
Phase      :      1 ph
Power Rating      :      44 W
Temperature Rating      :      36 to 230 deg F
Voltage Rating      :      120 V

Taco 0015e3is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It's ideal for hydronic systems zoned with circulators or zone valves. With 3 easy settings, the 0015e3 delivers performance, reliability and ease of installation that made the 00 famous.

Taco Comfort Solutions® ECM Circulator Pump, Model: 0015e3-2F4, 16 gpm Flow Rate, 18 ft Maximum Head, 44 W, 120 V, 0.54 A, 60 Hz, 125 psi Maximum Pressure, 4830 rpm Motor Speed Rating, 1/20 hp, 1 ph Phase, 36 to 230 deg F, Iron, 6 in L x 5 in W x 6-3/8 in H, Additional Information: Composite Impeller Material

  • 3 easy settings - low (5 ft head), medium (10 ft head), high (18 ft head), Install it, forget it
  • BIO barrier protects pump from system contaminants
  • SureStart automatic unblocking and air purging mode
  • High-efficiency ECM motor uses up to 85% less electricity
  • Double insulated, no ground wire required
  • Whisper quiet operation
  • Orange LED indicates 0015e3 running normally
  • The white LED indicates that the innovative SureStart automatic unblocking and air purge is active, SureStart gives you the confidence that you'll never get a locked rotor with the 0015e3, install it, forget it
  • Equipped with a cast iron casing and should be used for closed loop systems only
  • Taco circulator pumps are for indoor use only
  • Acceptable for use with water or maximum of 50% water/glycol solution
  • Not for use on potable water or chilled water systems
  • Composite stator housing, cartridge and impeller
  • Ceramic shaft and thrust bearing
  • Carbon bearings
  • EPDM O-ring and gaskets
  • ECM, permanent magnet, thermally protected type motor
  • Dual electrical knockouts, 6 in stranded wire leads included for easy wiring
  • For use with a Taco ZVC zone valve control or SR switching relay for on/off operation
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Taco_Comfort_Solutions_VM1816_HY2_4C2A00_Catalog.pdf
  • Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Taco_Comfort_Solutions_0015E3_2F4_Manual.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Taco_Comfort_Solutions_0015E3_2F4_Specification_Sheet.pdf
